QL/QLE2

Adjustable Torque Wrench

Direction

  • Basic Adjustable "Click" Type Torque Wrench
  • Torque Value Easily Set with External Scale and Knob
  • New Version: Two Tone Color Grip Design Features: New Ranges, Scale, and Adjustment Style for Low Range Models
    • Larger Grip Width for Comfort and Control
    • Large White/Black High Contrast Scale with Easy Change Window
    • Newly Designed Adjustment Knob for Ease of Use
    • New Color Grip Cap Option to Create Easily Identifiable Wrenches for Different Work Purposes
  • New Version QLE2 with Extension Handle
    • Features new style adjustment key and reduced weight
  • Many Models Also Available with Metal Handle Style:Model QL-MH
  • *Previous Model Versions available until stock depleted.

Tohnichi QL Ajdustable Torque Wrench





QL100N4

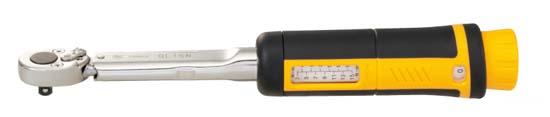

Tohnichi QL Adjustable Torque Wrench
New Design for Models QL2N ~ QL25N5 and Metric/American Equivalent Models

Tohnichi QLE Adjustable Torque Wrench
New Design for Large Models with Extension Handle QLE2

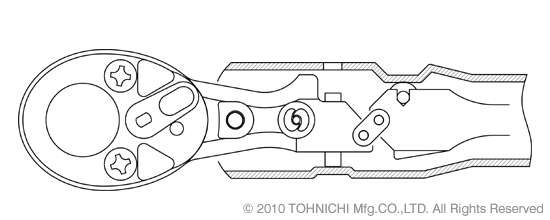

Torque wrench "clicks" at set torque (internal view)



Select proper model according to unit of measure as following color code :
S.I. =     Metric =     American =
Accuracy ±3%
Model Torque Range SQUARE DRIVE OVERALL LENGTH WEIGHT APPROX. Optional Carrying Case

Handle Style

Previous Model

S.I.

New Model Name

Previous Model

METRIC

New Model Name

Previous Model

AMERICAN

New Model Name MIN.~MAX. GRADUATION
S.I. METRIC AMERICAN QL S.I. METRIC AMERICAN QL mm in. mm kg
N.m kgf.cm. lbf.in. N.m kgf.cm lbf.in.
QL1.5N4* QL2N 15QL4* 20QL 15QL4-A* QL15I-2A
0.4~2

4~20

3~15
See Old Specs
0.02

0.2

0.1
See Old Specs 6.35 1/4 194 0.27 N/A

Two Tone Color Resin

QL3N4* QL5N 30QL4* 50QL 30QL4-A* QL30I-2A 1~5 10~50 6~30 0.05 0.5 0.2
QL6N4* QL10N 60QL4* 100QL QL50I-2A

New Design

Same Model Name

2~10 20~100 10~50 0.1 1 0.5 219
QL12N4* QL15N 120QL4* 150QL QL100I-2A 3~15 30~150 20~100 0.29
QL25N-1/4 QL25N5-1/4 225QL3-1/4 225QL5-1/4 QL200I-2A 5-25 50-250 50~200   0.2 2.5 2.5   237 0.33
QL25N QL25N5 225QL3 225QL5 QL200I-3A 5~25 50~250 50~200   9.53 3/8
QL50N   450QL3   QL400I-3A   10~50 100~500 100~400 0.5 5 5   260 0.45 #842 Black Resin
QL100N4-3/8 900QL4-3/8 QL750I-3A 20~100 200~1000 150~750 1 10 10   335 0.69 #846
QL75F-3A lbf.ft. lbf.ft.
15-75 1
QL100N4 900QL4 - 20~100 200~1000 - -   12.7 1/2
QL140N 1400QL3 QL100F-4A 30~140 300~1400 30~100 1   400 0.88 #843 and #846
QL200N4 1800QL4 QL150F-4A 40~200 400~2000 30~150 2 20 1.5   490 1.4 #843 and #847
QL280N-1/2 2800QL3-1/2 QL200F-4A 40-280 kgf.m. 30~210 kgf.m.   695 2.0 #847
4-28 0.2
QL280N 2800QL3 - 40~280 -   19.05 3/4
QL420N 4200QL2 QL300F-6A 60~420 6~42 60~300   995 3.4 N/A Metal
QLE550N QLE550N2 5500QLE 5500QLE2 QL400F-6A QLE400F-6A 100~550 10~55 100~400 See Old Specs 5 0.5 5 See Old Specs 1189 4.3 Metal with Extension
QLE750N QLE750N2 7500QLE 7500QLE2 QL600F-6A QLE600F-6A 150~750 10~75 150~600 1342 5.6
QLE1000N QLE1000N2 10000QLE 10000QLE2 QL700F-8A QLE700F-8A 200~1000 10~100 200~700 25.4 1 1515 7.7
QLE1400N QLE1400N2 14000QLE 140000QLE2 QL1000F-8A QLE1000F-8A 300~1400 20~140 300~1000 10 1 10 1787 11.1
QLE2100N QLE2100N2 21000QLE 21000QLE2 QL1500F-8A QLE1500F-8A 500~2100 50~210 500~1500 1895 14.6
New Model QLE2800N2 New Model 28000QLE2 New Model QLE2000F-12A 800~2800 80~280 600~2000 20 2 20 38.1   2405 23.7
Notes Click model to purchase item on Amazon.com. We can only validate and control items purchased via seller Tohnichi America.
  1. Models followed by * are available until stock depleted.
  2. For QLE550N-2100N, adjusting tool is supplied as standard accessory.
  3. QLE2800N2 and equivalent models has a square drive with hole for use with through hold socket (not included)

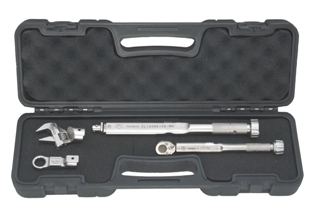

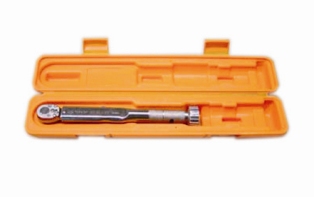

Carrying Case #842   Carrying Case #846

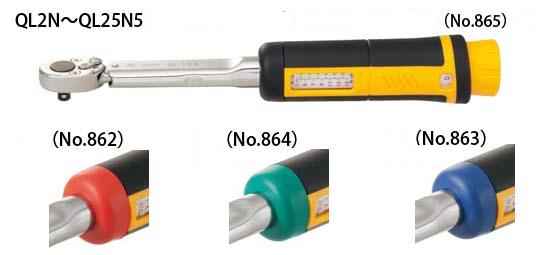

Color Cap Option
Part # Color Applicable Model
862 Red QL2N, QL5N, QL10N, QL15N, QL25N5-1/4, QL25N5 & Metric/American Equivalent Modles
863 Blue
864 Green
865 Black (replacement)


Dimensions

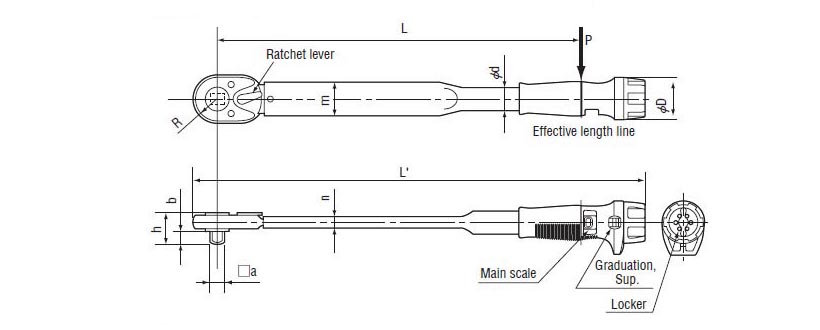

QL50N~4200N

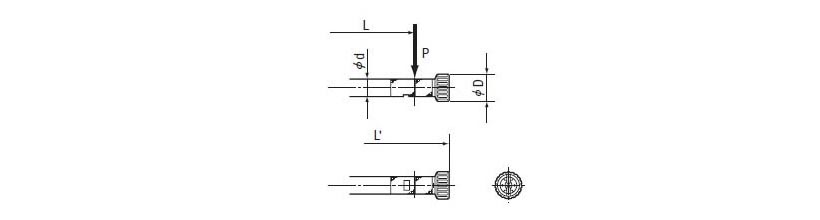

QL1.5N~12N

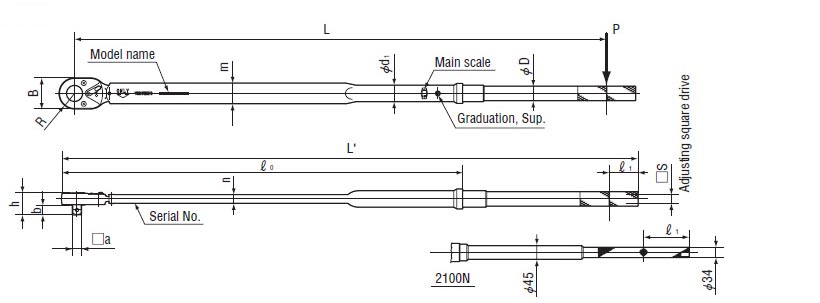

QLE
