TDT



Torque Screwdriver Tester

Direction

Digital Torque Screwdriver and Small Wrench Tester

Ideal for Testing Click and Dial Indicating Torque Screwdrivers: Includes 2 Types of Interchangeable Loading Mechanisms

Optional TDTLA Loading Bar for Testing Small Capacity Torque Wrenches.

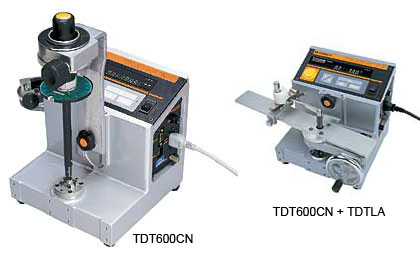

TDT Digital Torque Screwdriver Tester

pdf Operating Instructions
Select proper model according to unit of measure as following color code :
S.I. =     Metric =     American =
Accuracy 1% + 1digit
Model Torque Range Square Drive Weight Approx.
S.I. Metric American Min.-Max. Graduation
S.I. Metric American S.I. Metric American mm in kg lbs
TDT60CN TDT6 TDT6-A cN.m
2-60
kgf.cm
0.2-6
in.lbs
0.2-5
cN.m
0.02
kgf.cm
0.002
in.lbs
0.002
6.35 Hex (Male)
with a groove (0.7mm)
Hex 1/4
Minus 1/32 Groove
13.5 29 51/64
TDT600CN TDT60 TDT60-A 20-600 2-60 2-50 0.2 0.02 0.02

Common Specification
DATA MEMORY 99 data
ARITHMETIC FUNCTION Sampling, Maximum, Minimum, Mean
MEASUREMENT MODE PEAK / RUN
ZERO ADJUSTMENT  Manual
DATA OUTPUT RS232C (Printer: standard, personal computer: change by inside dip switch)
RESET Manual /Auto (0.5 ~ 5.0 sec freely changeable by 0.1 sec.)
OPERATING CONDITION [C] Temperature 0 ~ 40
POWER SOURCE AC[V] 100 ~ 240 50/60Hz Auto shift.

LOADING EQUIPMENT FOR TDT
Model
TDTLA
For low capacity torque wrenches.
