TME
Direction

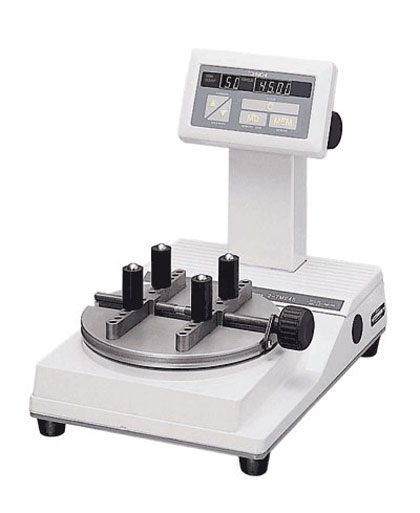

Table top, manual load, digital torque meter ideal for cap testing.
Digital Cap Torque Meter TME

pdf Operating Instructions
Select proper model according to unit of measure as following color code :
S.I. =     Metric =     American =
Accuracy 1% + 1digit
Model Torque Range Inside Memory Dimension Weight Approx.
S.I. Metric American Min.-Max. Graduation (Overall Length X Width X Height)
S.I. Metric American S.I. Metric American mm in KG lbs.
3TME9CN 3-TME09 TME12Z cN.m
1.8-9.0
gf.cm
180-900
in.oz
1.2-12
cN.m
0.01
gf.cm
1
in.oz
0.01
50 Data 252 X 158 X 180 8 21/32 X 9 1/4 X 6 1/32 3.5 7 25/32
3TME18CN 3-TME1.8 TME24Z 3.6-18 360-1800 2.4-24 0.02 2 0.02
3TME45CN 3-TME4.5 TME60Z 9-45 900-4500 6-60 0.05 5 0.05
3TME90CN 3-TME9 TME120Z 18-90 kgf.cm
1.8-9
12-120 0.1 kgf.cm
0.01
0.1
2TME180CN 2-TME18 TME15I 36-180 3.6-18 in.lbs
1.5-15
0.2 0.02 in.lbs
0.02
331 X 223 X 280 13 1/32 X 9 1/4 X 11 1/32 12 26 21/32
2TME450CN 2-TME45 TME40I 90-450 9-45 4-40 0.5 0.05 0.05
2TME900CN 2-TME90 TME80I 180-900 18-90 8-80 1 0.1 0.1
2TME1800CN 2-TME180 TME150I 360-1800 36-180 15-150 2 0.2 0.2
Note
Available for inspections of torque drivers.
