CTA

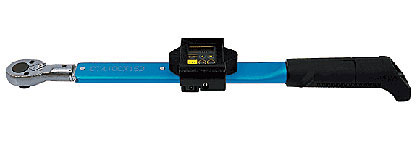

Digital Torque and Angle Wrench

Angle method torque wrench, set snug torque followed by angle.

Automatically changes to angle mode once snug torque is acheived.

Ideal for rework and repair areas or used as a back up tool for large automated torque and angle transducers on the production line.

Operating Instructions

Accuracy ±1% + 1digit

Model	Angle Measuring Range		Angle Accuracy	Torque Range		Hand Force at Max Torque Range	Effective Lgth.	Overall Lgth.	Weight approx	Standard Accessories		Interchangeable Heads
Model	Min.-Max.	Grad.	Angle Accuracy	Min.-Max.	Grad.	N	mm	mm	kg	Standard Accessories		Interchangeable Heads
CTA50 X 12D	0°-999°	1°	±2° + 1 digit (Angular velocity is 30°/s-180°/s when the bolt turned to 90° )	N.m (2.5) 10-50	N.m 0.05	152	329	360	0.7	QH12D	Quick Battery Charger (QC-1)	(SH,RH,QH,RQH, HH,DH,FH) 12D
CTA100 X 15D				(5) 20-100	0.1	244	409	433	0.8	QH15D		(SH,RH,QH,RQH, HH,DH,FH) 15D
CTA200 X 19D				(10) 40-200	0.2	409	489	500	1.1	QH19D		(SH,RH,QH,RQH, HH,DH,FH) 19D
CTA360 X 22D				(18) 72-360	0.4	481	749	743	1.6	QH22D		(SH,RH,QH,RQH, HH,DH,FH) 22D
CTAE500 X 22D				(25) 100-500	0.5	549	910	912	3.5	QH22D		(SH,RH,QH,RQH, HH,DH,FH) 22D
CTAE850 X 32D				(43) 170-850	1	608	1398	1383	4.9	QH32D		(SH,RH,QH) 32D

Metric and American models are available upon request.

1. The numbers in ( ) are the possible lowest setting snug torque value.
2. Accuracy of snug torque below min. torque value of torque range is not guaranteed.
3. Overall length does not include interchangeable head.
4. Interchangeable heads other than provided QH heads are optional.
5. PH type interchangeable head is not available for this model.
6. Not for inspection purpose.
7. English and Metric Units available upon request.

Common Specification

MEMORY	Torque, Angle 50 Data / Torque 99 Data / Angle 99 Data
MEASUREMENT MODE	PEAK/RUN (Angle, Torque)
DATA OUTPUT	Based on RS232C / Infrared output
ZERO ADJUSTMENT	Auto Zero function (Angle, Torque)
OTHER FUNCTIONS	Angle value setting, Snug torque setting, Auto power off (after 20 min.), Battery checker, Autoreset
POWER SOURCE	Ni-cd battery
CONTINUOUS USE [h]	8
BATTERY CHARGE [h]	1
OPERATING CONDITION [°c]	Temperature 0 ~ 40
