LC2-G

Torque Wrench Line Checker

Direction

  • Suitable for Use Near the Assembly Line
  • For Daily Inspections of Torque Wrenches Prior to Use
  • Quick Spot Checks of Torque Wrenches Confirm Tool is Set and Functioning Correctly.
  • Digital Display with Time and Date Functions
  • New version LC2-G features multiple units of measure through keypad setup.

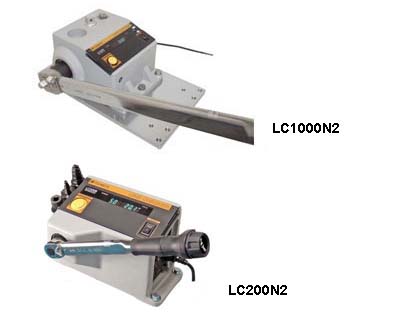

LC2 Tohnichi Line Checker Torque Wrench Tester
pdf Operating Instructions
pdf Operating Instructions - LC2-G



Model LC2-G:  Multiple Unit of Measure Models Click Model to Purchase Online

Accuracy ±1%

Model

Capacity Square Drive Dimension Weight Approx.
Measurement Mode cN•m N•m kgf•cm kgf•m lbf•in lbf•ft (Overall Length X Width X Height)
Min.- Max. Grad. Min.- Max. Grad. Min.- Max. Grad. Min.- Max. Grad. Min.- Max. Grad. Min.- Max. Grad. mm in mm kg

LC20N2-G

Peak 50-99.5 0.5 0.500- 0.995 0.005 5.00- 9.95 0.05 - - 5.00- 9.95 0.05 - - 9.5 3/8" 278 X 160 X 167 10.5
100-999 1 1.00- 9.99 0.01 10.0- 99.9 0.1 - - 10.0- 99.9 0.1 - -
1000- 2000 10 10.0-20.0 0.1 100-200 1 - - 100-174 1 - -

Run (min~max)

50.0- 2000 0.5 0.500- 20.000 0.005 5.00- 200.00 0.05 - - 5.00- 174.00 0.05 - -

LC200N2-G

Peak - - 5.00- 9.95 0.05 50.0- 99.5 0.5 - - 50.0- 99.5 0.5 4.00- 9.95 0.05 12.7 1/2"
- - 10.0- 99.9 0.1 100- 999 1 - - 100-999 1 10.0- 99.9 0.1
- - 100-200 1 1000- 2000 10 - - 1000- 1740 10 100-140 1

Run (min~max)

- - 5.00- 200.00 0.05 50.0- 2000.0 0.5 - - 50.0- 1740.0 0.5 4.00- 140.00 0.05
LC1000N2-G Peak - - 50.0-99.8 0.2 -
- 5.00- 9.98 0.02
500-998 2 36.8- 99.8 0.2 25.4 1" 500 X 290 X 186 34
- - 100- 1000 1 - - 10.0- 100.0 0.1 1000- 8800 10 100-735 1
- - - - - - - - - - - -
Run (min~max.) - - 50.0- 1000.0 0.2 - 2 5.00- 100.00 0.02 500- 8800 2 36.8- 735.0 0.2
LC1400N2-G Peak - - 100-999 1 - - 10.0-99.9 0.1 900-995 5 75.0-99.5 0.5

500 X 312 X 186

39
- - 1000-1400 10 - - 100-140 1 1000-9990 10 100-1000 1
- - - - - - - - 10000-12000 100 - -
Run (min~max.) - - 100.0-1400.0 0.5     10.00-140.0 0.05 900-12000 5 75.0-1000.0 0.5
note
  1. “-G” models feature 4 changeable units of measure through keypad set up
  2. ISO factory certificate of calibration is included and data is supplied in SI units only.
  3. NIST Traceable certificates are available upon request for an additional fee. For NIST certifications any one of the units of measure may be selected to be shown on the certificate.
  4. SI only version is available upon request



Common Specification

DATA MEMORY
99 data (Counter, Time,Torque Data)
MEASUREMENT MODE
PEAK / RUN
ZERO ADJUSTMENT
C key, Auto zero by OFF/ON key
DATA OUTPUT
RS232C compliant (Factory default PC output. Printer output changeable via keypad setup)
RESET
Manual /Auto (Changeable in the range from 0.1 to 5.0 sec.)
OPERATING CONDITION [°C]
Temperature 0 ~ 40
POWER SOURCE AC[V]
100 ~ 240 50/60Hz Auto shift.

Standard Accessories

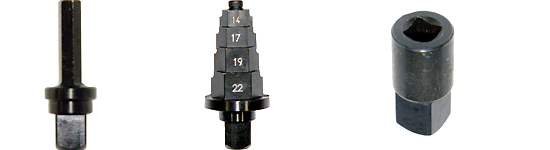

Base Adapter   Base Adapter shown with stacked hex pieces   Socket Adapter

Applicable Model HEX ADAPTER KIT SOCKET ADAPTER AC Adapter
Square Drive (mm) Hex Width (mm) Part No. Square Drive - Female (mm) Square Drive - Male (mm) Part No.
LC20N2-G 6.35 8, 10, 12, 13, 14, 17 (1 pc. each),
Base Adapter (1 pc.), Driver Adapter (1 pc.)
282 6.35 9.5 270 BA-3
LC200N2-G 9.53  8, 10, 12, 13, 14, 17, 19, 22 (1 pc. each),
Base Adapter (2 pcs.)
280 9.5 12.7 272
LC1000N2-G - 12.7 19.0 274
19.0 25.4 276

Optional Accessories:

Model Description Type Usage Time Weight Size Applicable Models

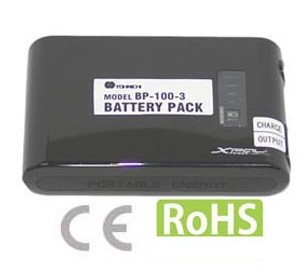

BP-100-3 External Battery Pack

Rechargeable Lithium-ion

7hrs 225g W109mmXD73.6mmXH23mm DOTE3(-G), LC2(-G), TDT2(-G), TME2

Excel Receiver Software is complimentary with cable purchase.


Dimensions

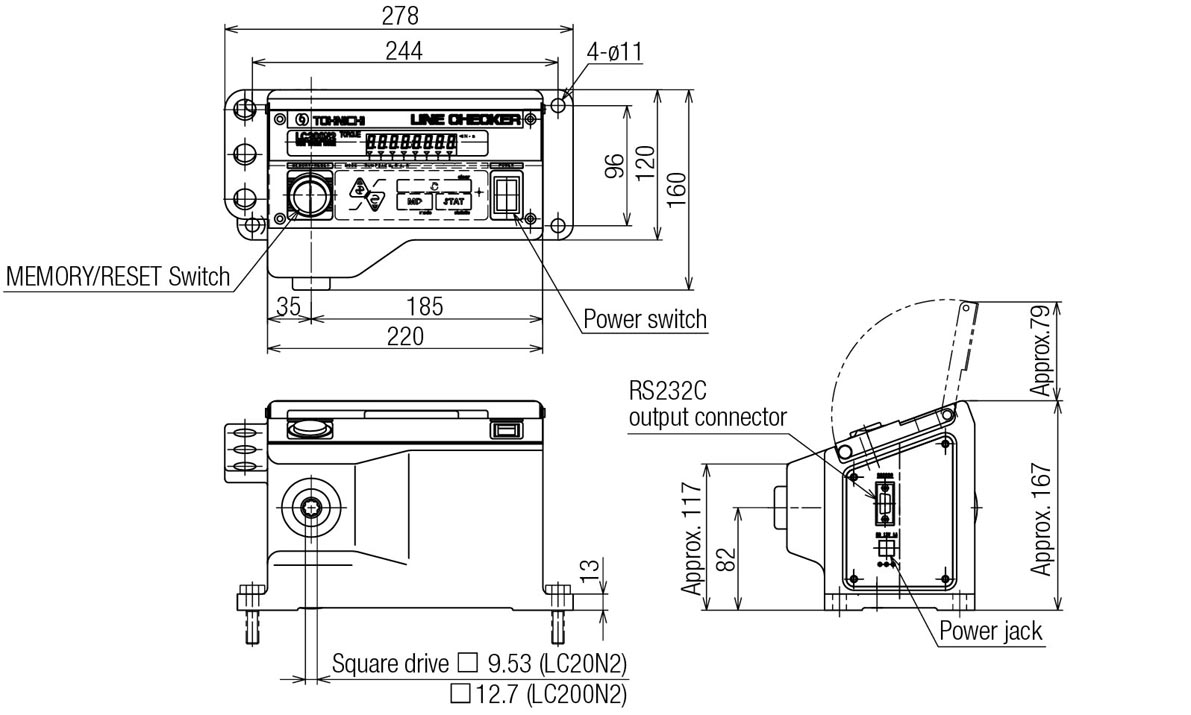

LC20N~200N

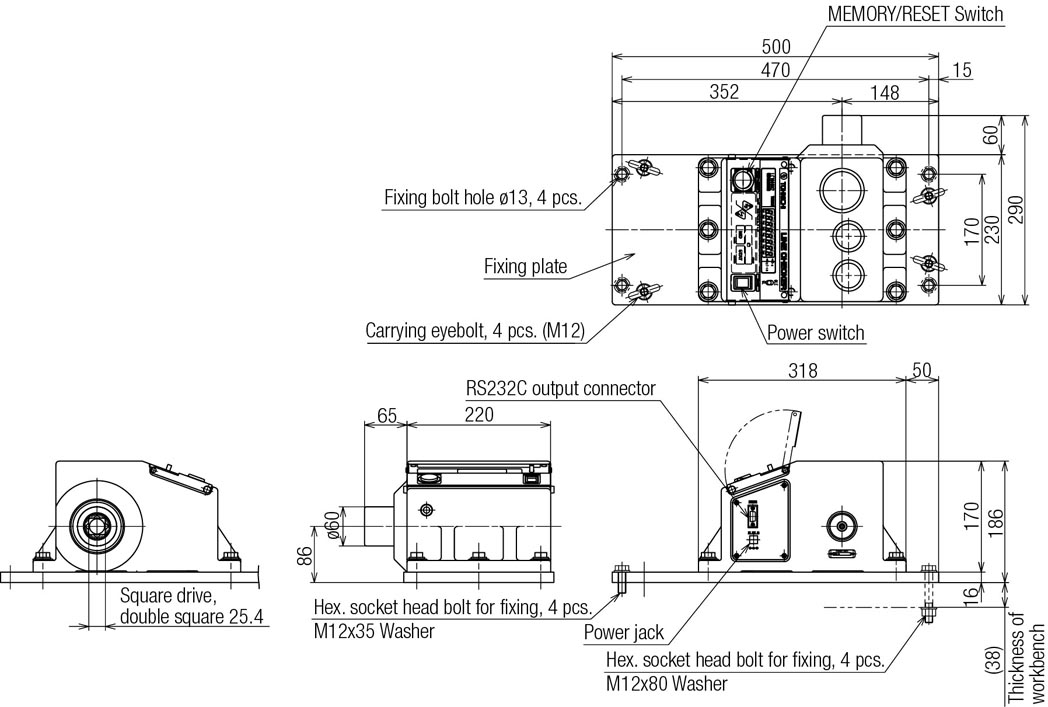

LC1000N~1400N
