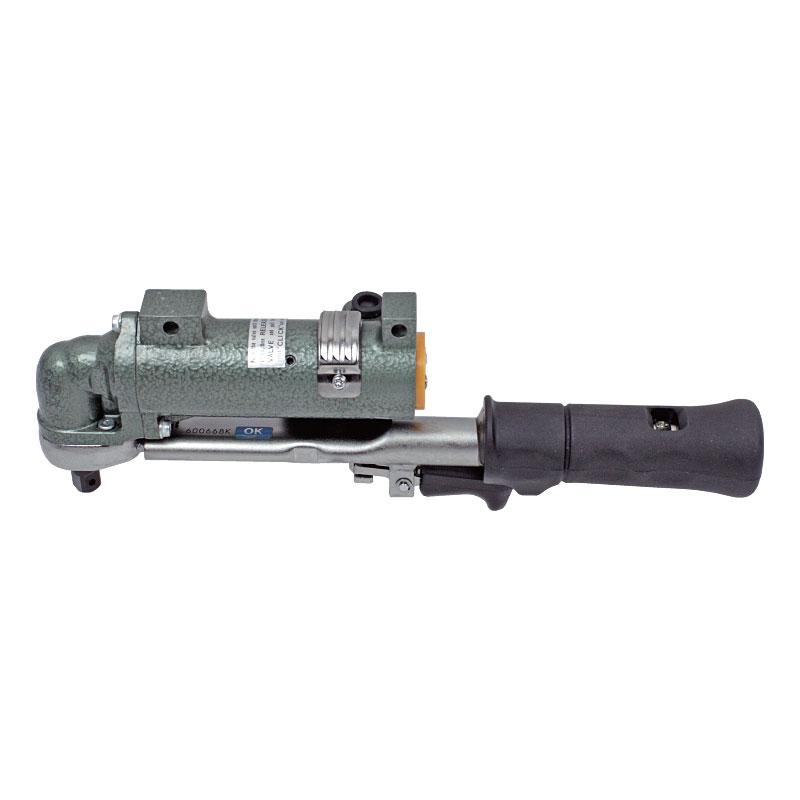

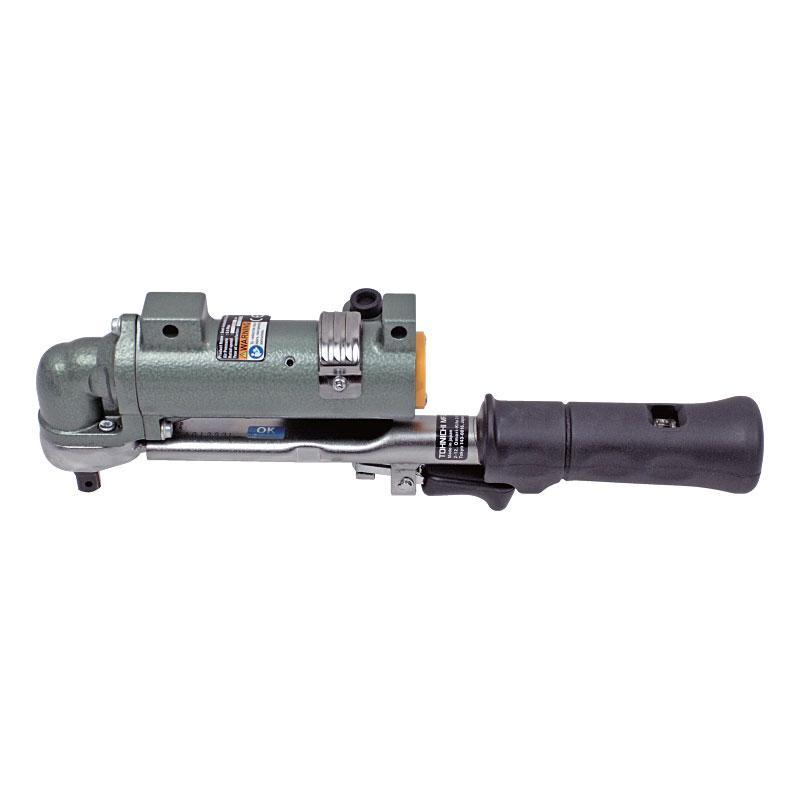

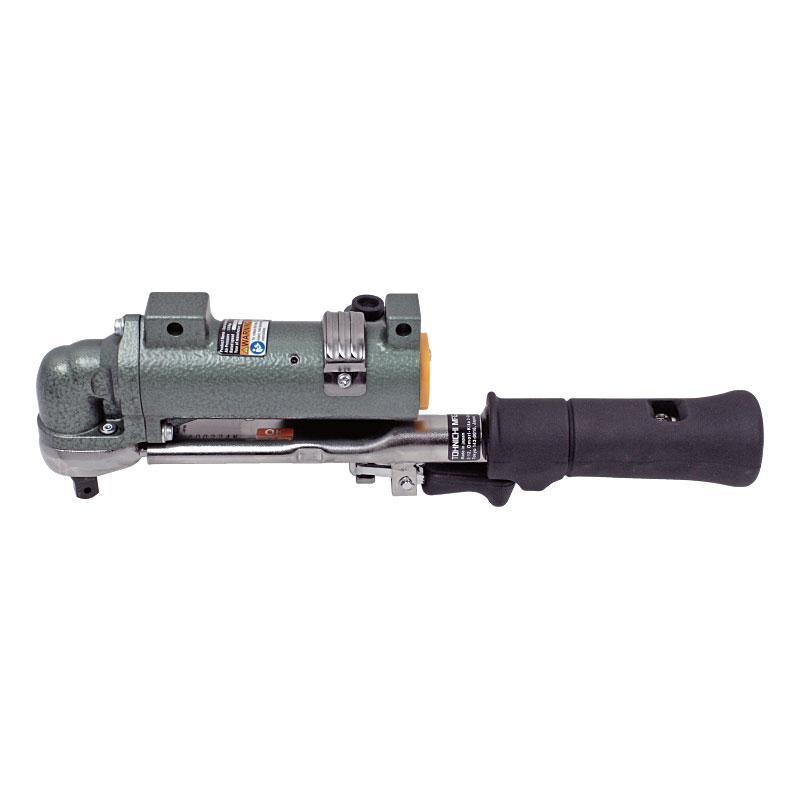

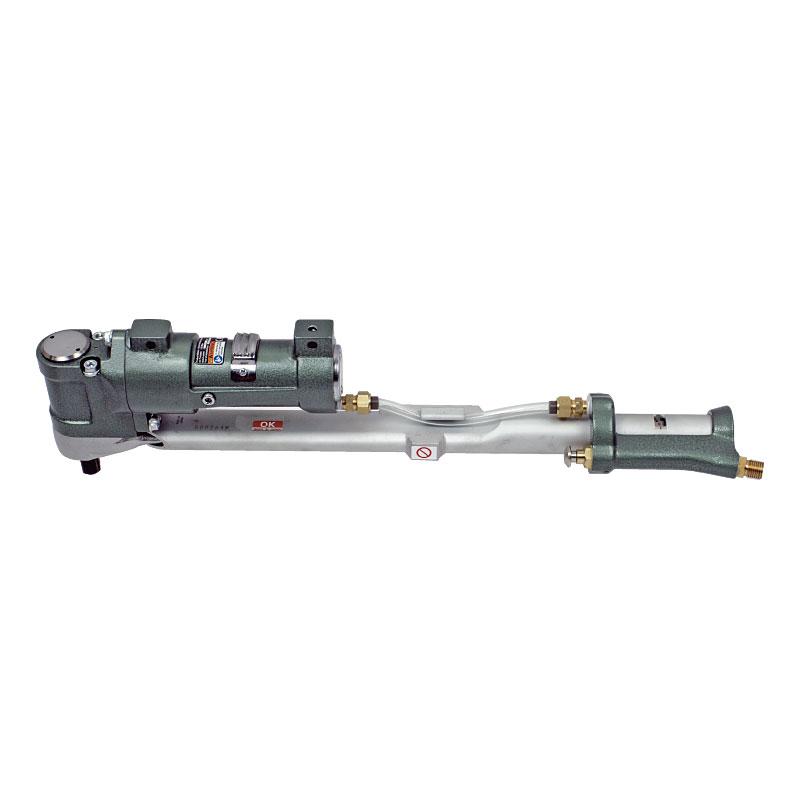

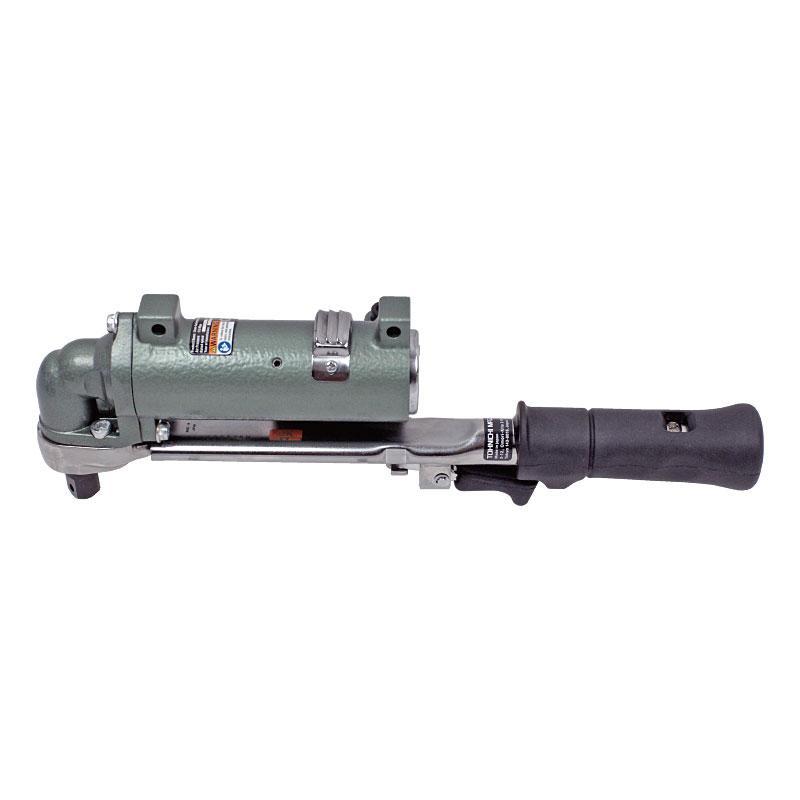

AC3 Semi-Automatic

  • Semi-Automatic Type: Air motor mounted on torque wrench allows for fast provisional tightening with the accuracy of final tightening by torque wrench performed by hand.
  • This tool replaces the conventional two-step tightening process of the pneumatic tool followed by clicking the torque wrench into one tool for greater efficiency.

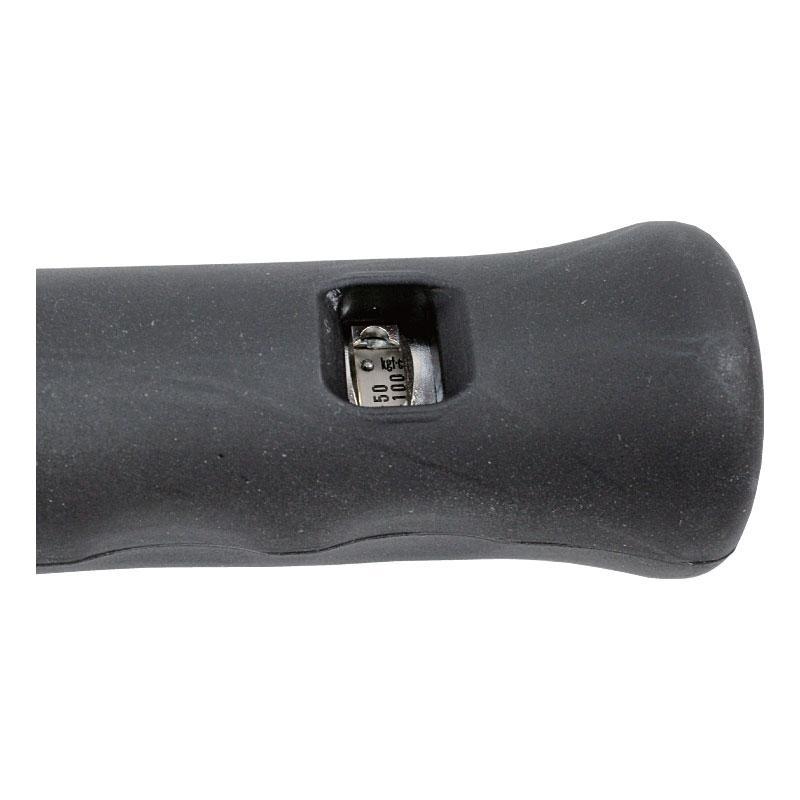

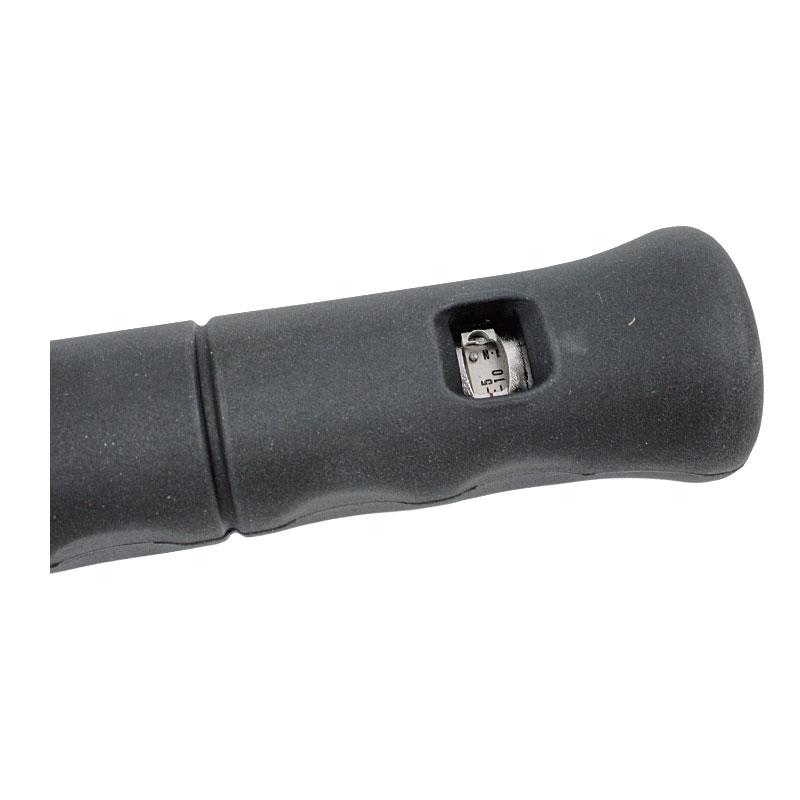

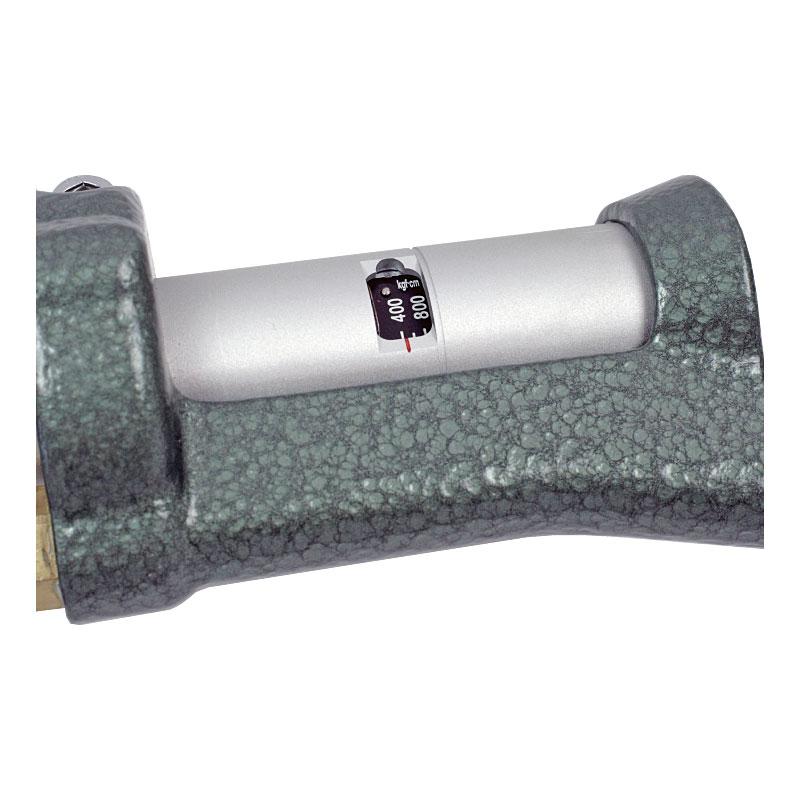

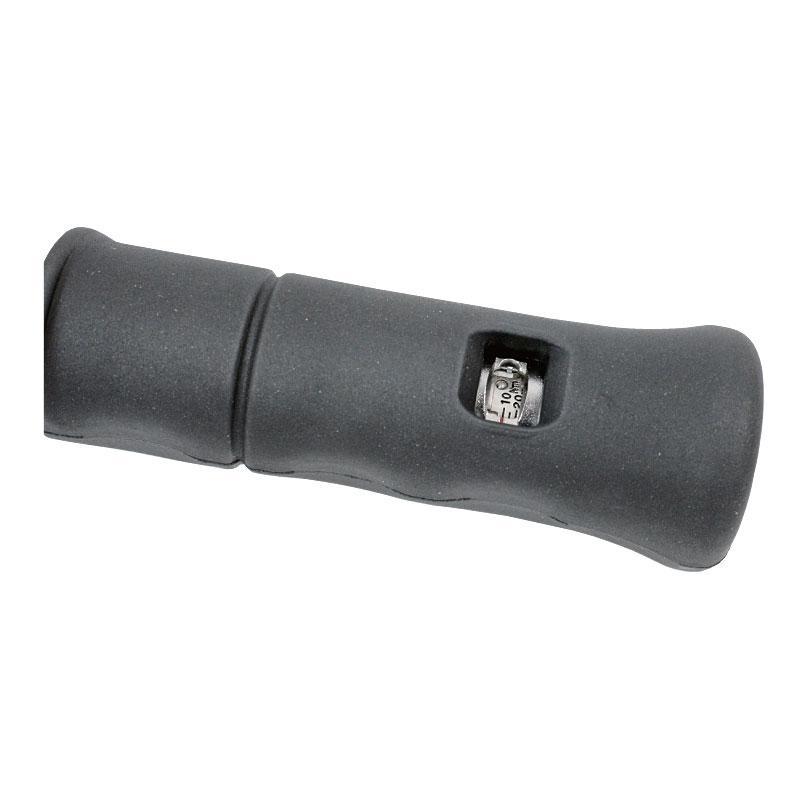

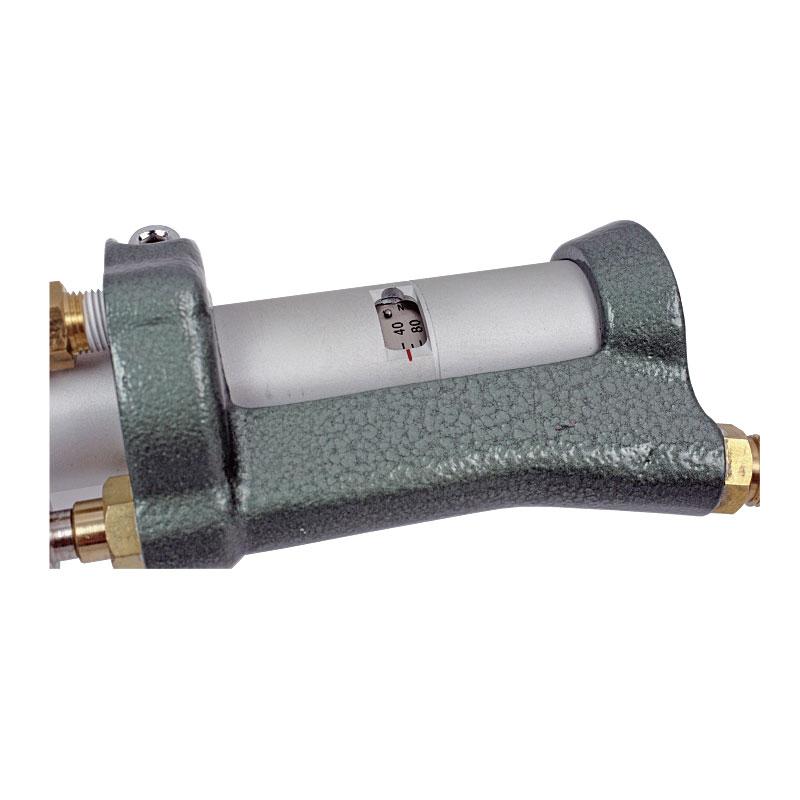

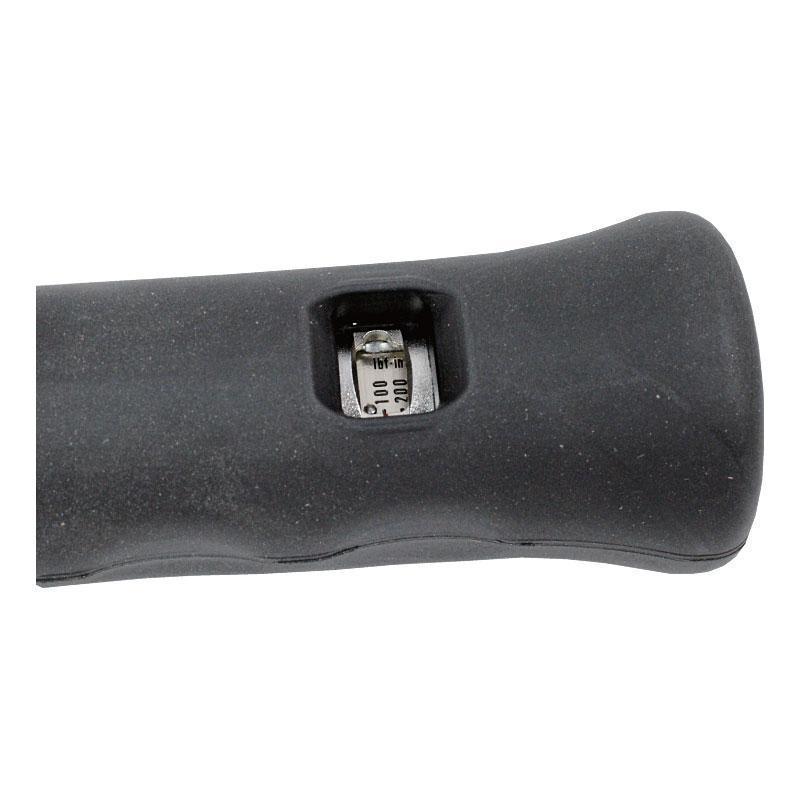

  • Changing tightening torque is simple by using a hex key to adjust the scale on the handle.
  • Index finger trigger engages motor. Release after provisional tightening then uses hand force until torque wrench “clicks” at required torque setting.
  • Same features as A Series but with a larger motor and higher provisional tightening torque.
  • Easy calibration performed on standard torque wrench tester such as Tohnichi’s DOTE4-G. Since the torque wrench is controlling the final applied torque no joint simulator is required.
  • AC3 version features a new ratchet square drive that accommodates anti-vibration sockets (not included) and an improved trigger mechanism.
  • No reaction arm needed–Up to 180Nm (or equivalent) with no reaction force.
  • A drop in airline pressure will not affect applied torque.

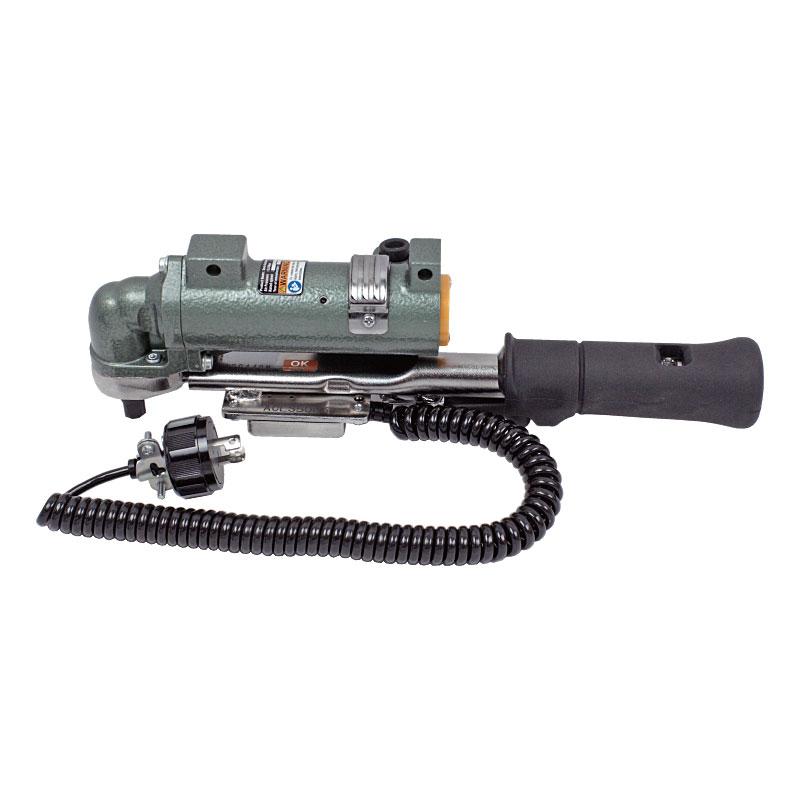

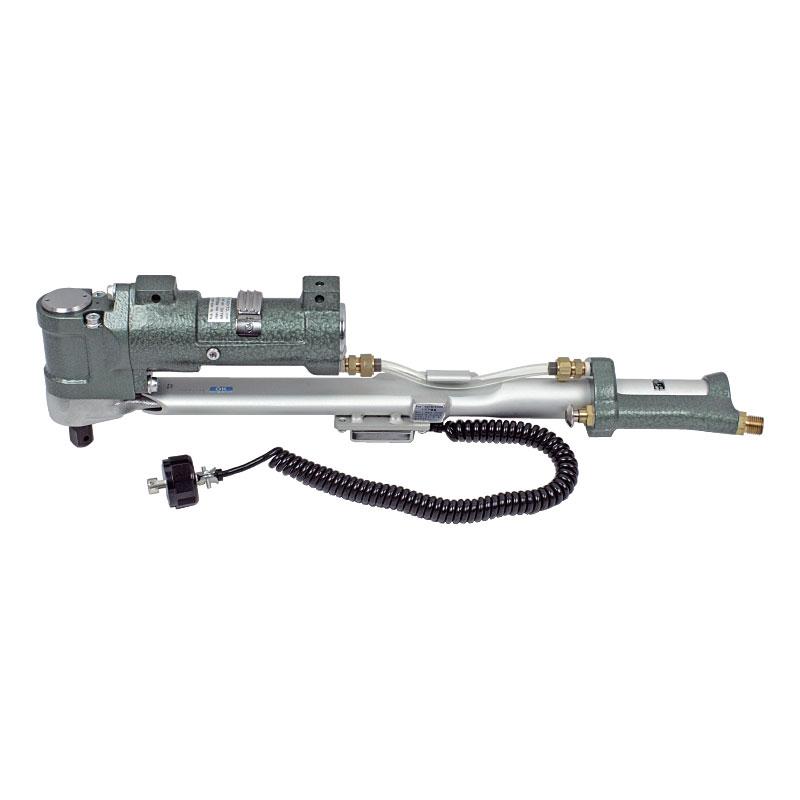

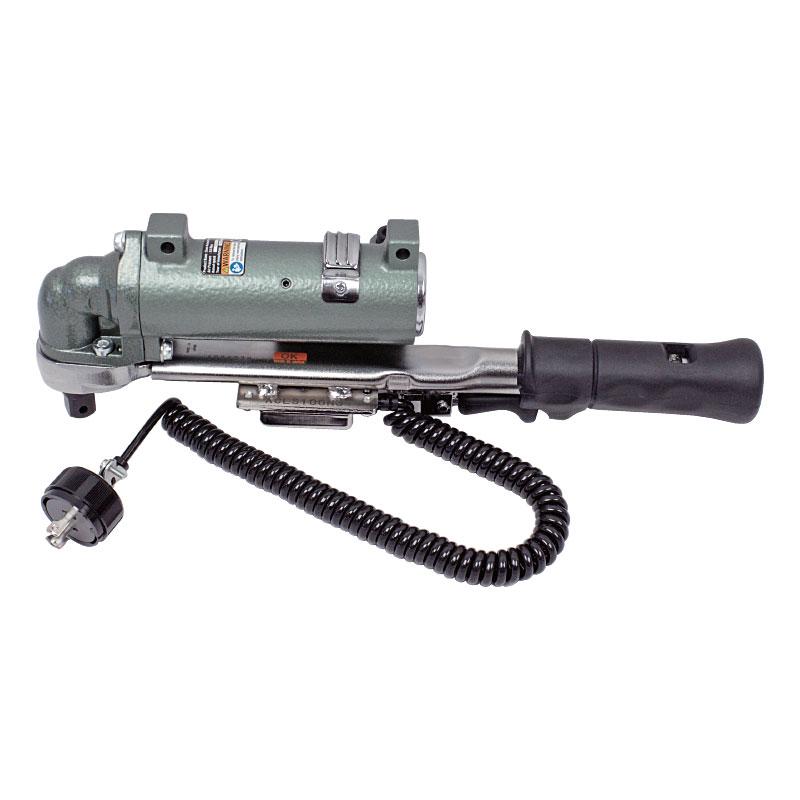

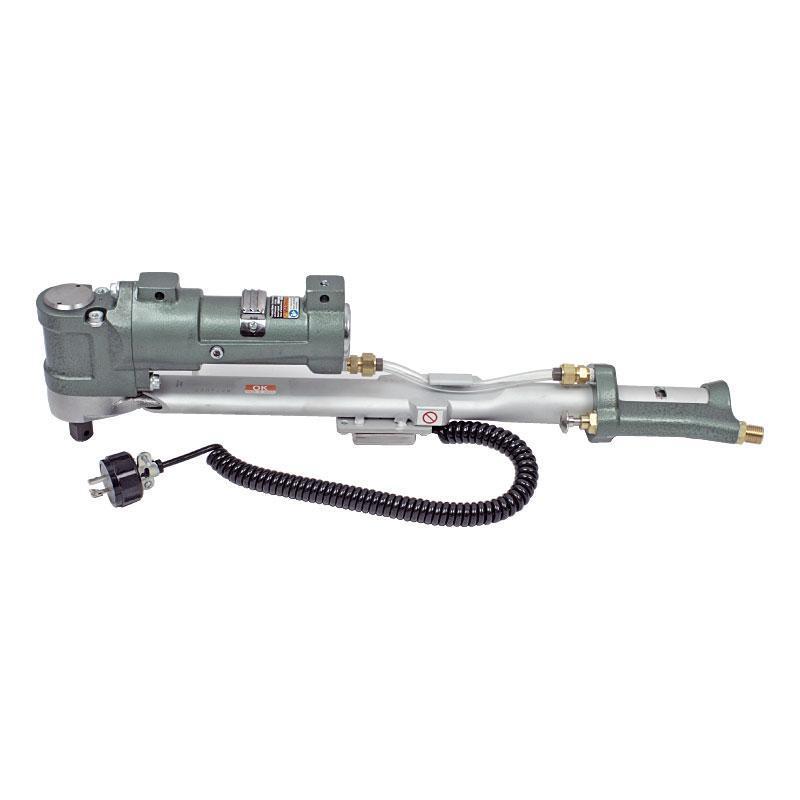

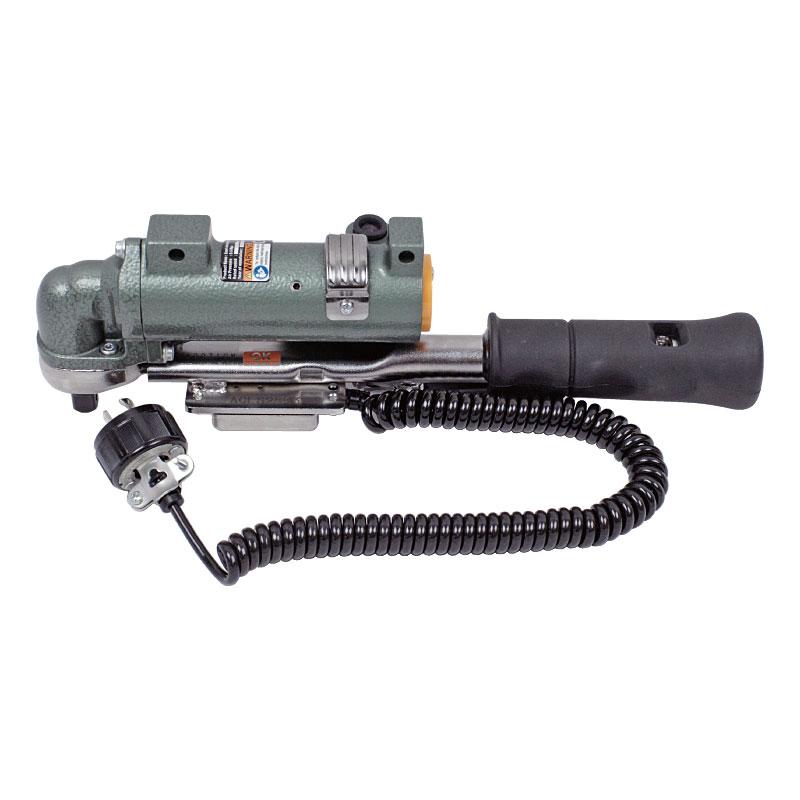

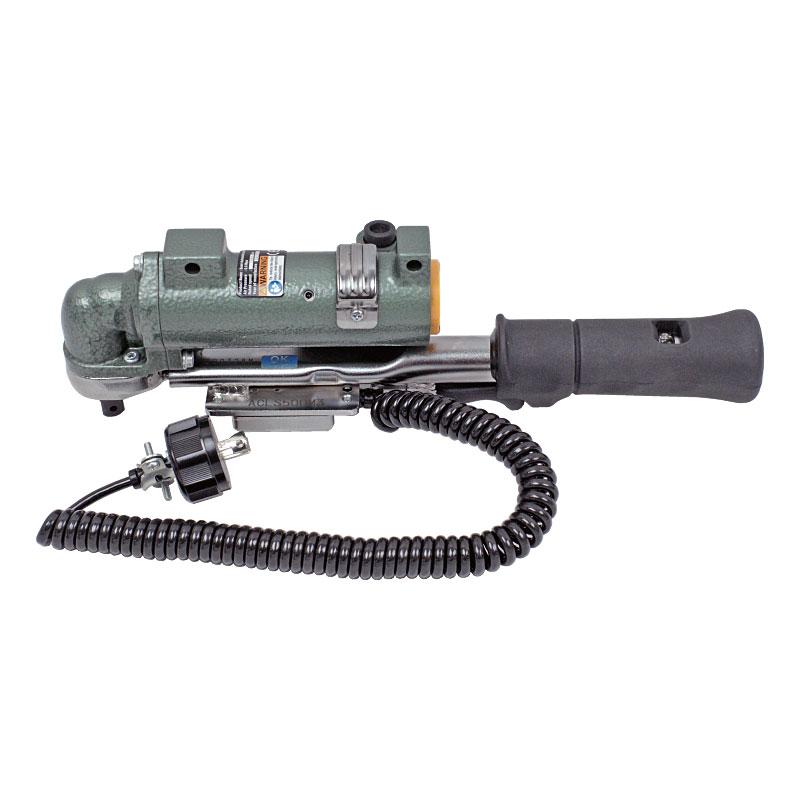

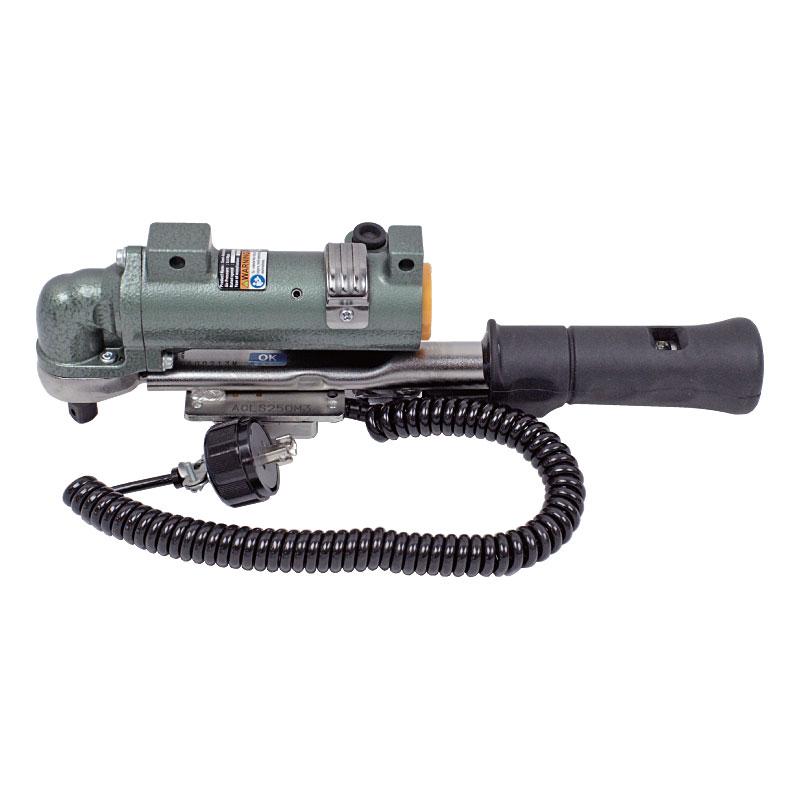

  • LS version is available with the limit switch, which creates an error-proofing system when used with CNA-4mk3 count checker (sold separately). When torque setting is achieved, the limit switch is triggered confirming tightening completion–no more missed fasteners!
  • ACFD and ACQSPLDC3 / ACQSPLD3 Models also output applied torque data (Special order upon request).

American Models

SI Models

Metric Models
