ATG / BTG Torque Gauge
- Torque gauge series designed to measure low torque from 0.5mN • m to 150cN • m.
- Two Body Sizes: ATG smaller and BTG larger coordinate with torque ranges.
- Bi-directional operation handheld type torque gauge.
- Aluminum Threaded keyless 3-jaw chuck is standard. (order replacement #00T45502B for ATG & #00T04282A for BTG).
- For ATG: plastic chuck #322 or steel chuck #321 are also available as optional accessories.
- The push-lock button holds the gauge in place while securing the test object in the chuck.
- The dial is scaled by 270 degrees with a stopper which prevents overloading.

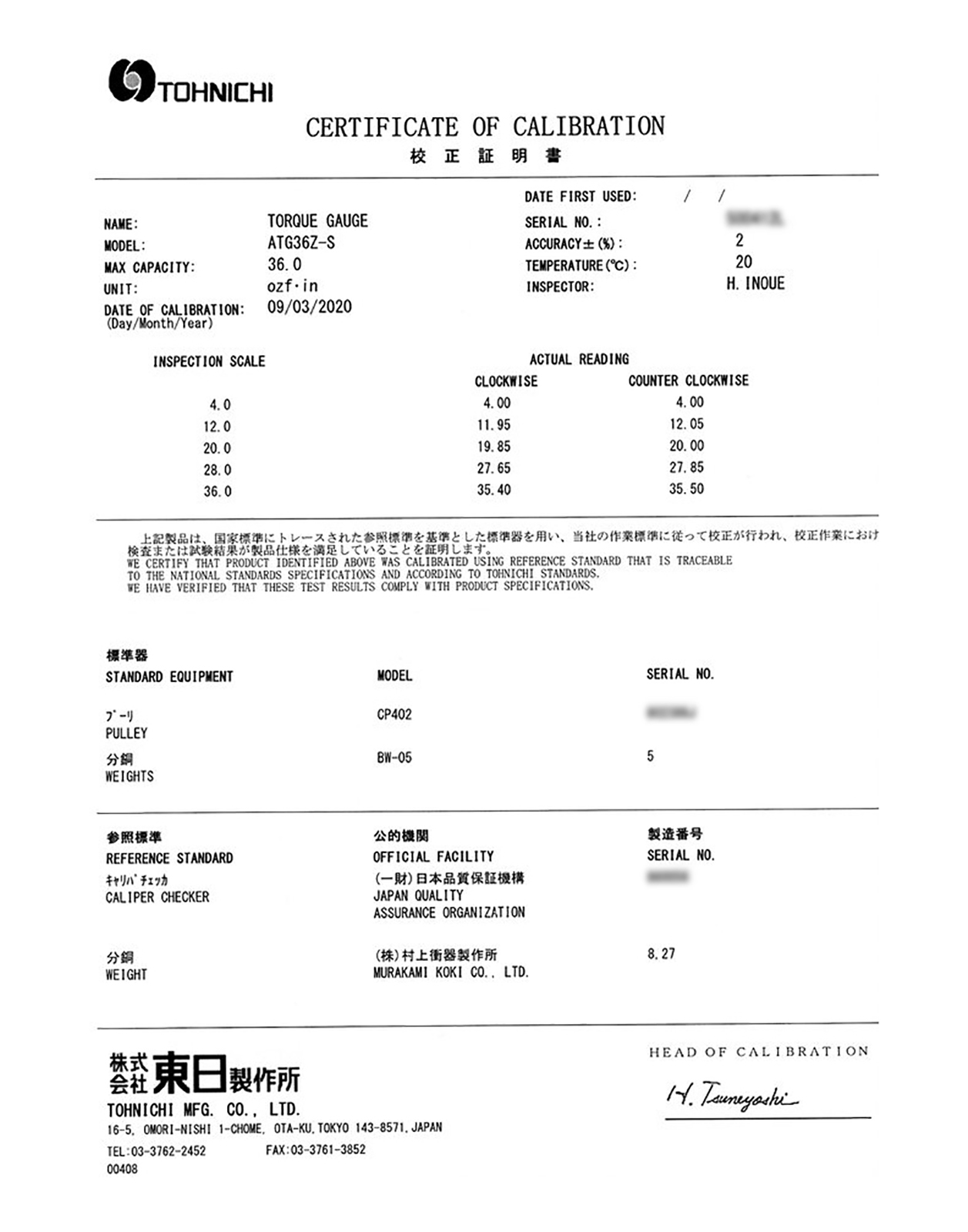

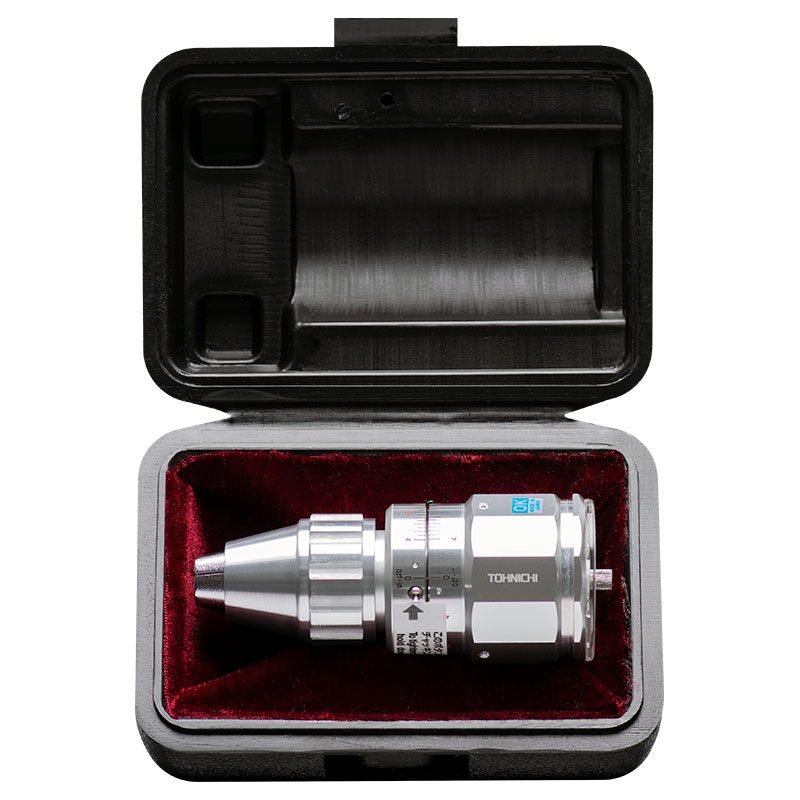

- Includes plastic storage case and certificate of calibration.
- For calibration, use calibration kits ATGTCL for ATG, and BTGTCL for BTG (sold separately) or contact our repair dept.

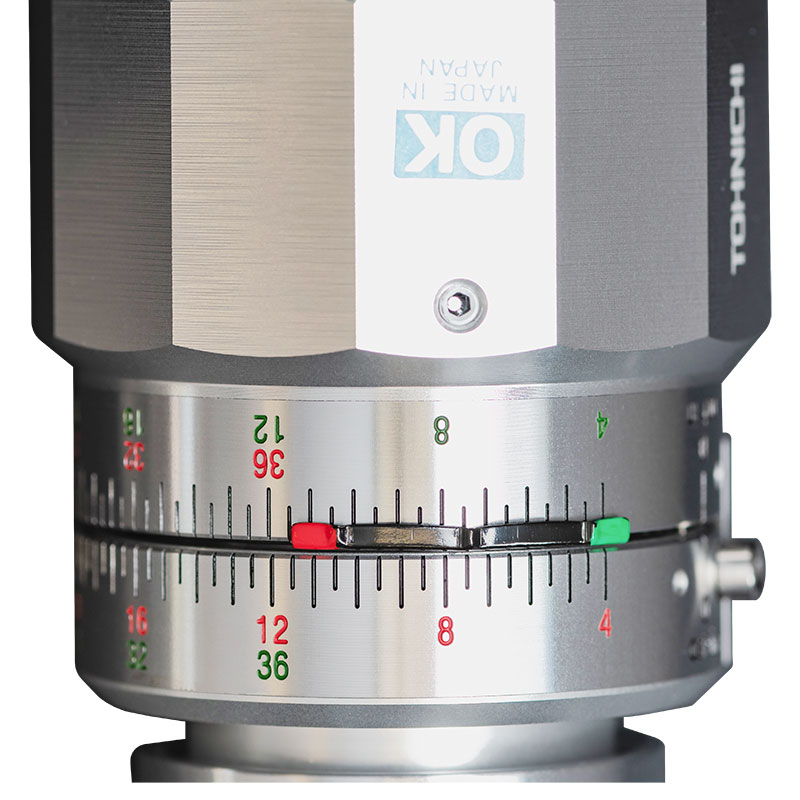

- Top and Side scales feature memory pointers to ensure easy and accurate torque reading from different angles.
- Accuracy +/-2% of reading.
Accessories
American Models
Thumbnail | Name | Short description | Stock status | Price |
---|---|---|---|---|

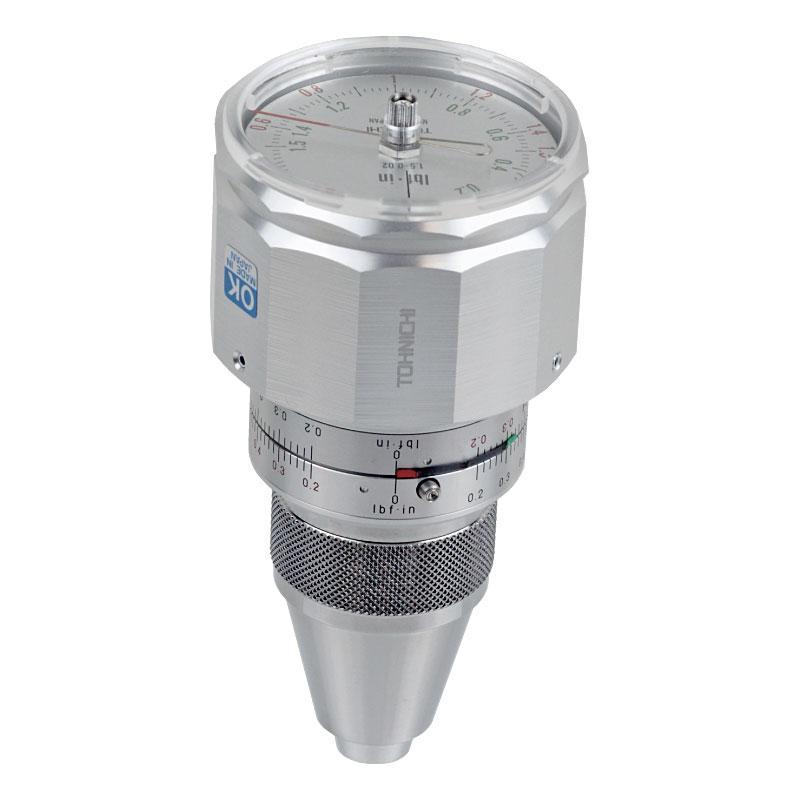

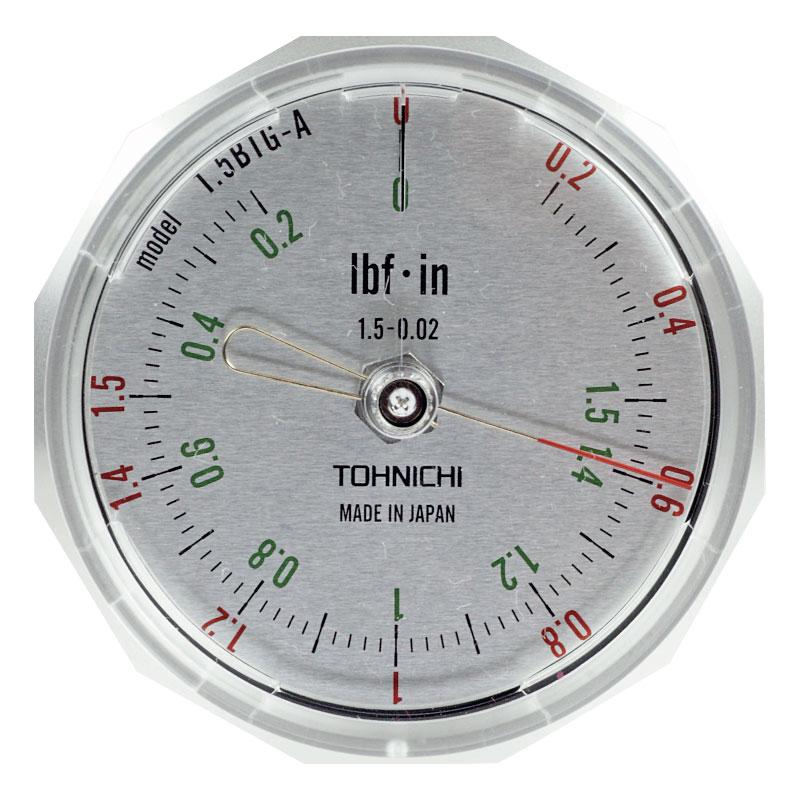

1.5BTG-A-S | Torque Gauge,0.1~1.5 lbf.in. graduation 0.02lbf.in. Chuck Diameter 1-8.5 mm | In stock1 item(s) | $807.00 | |

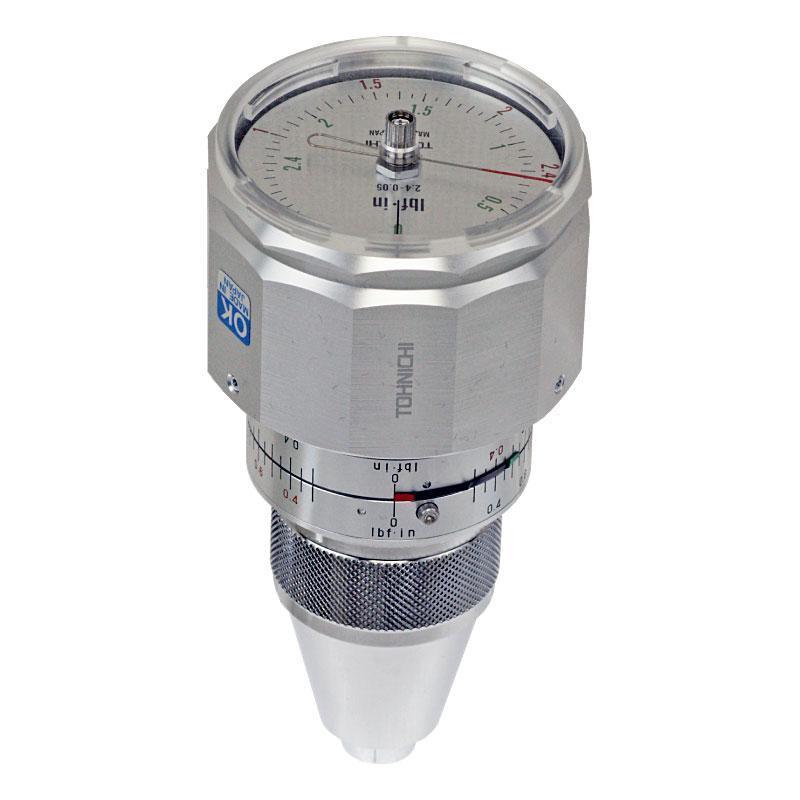

2.4BTG-A-S | Torque Gauge, 0.3-2.4, 0.02lbf.in, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

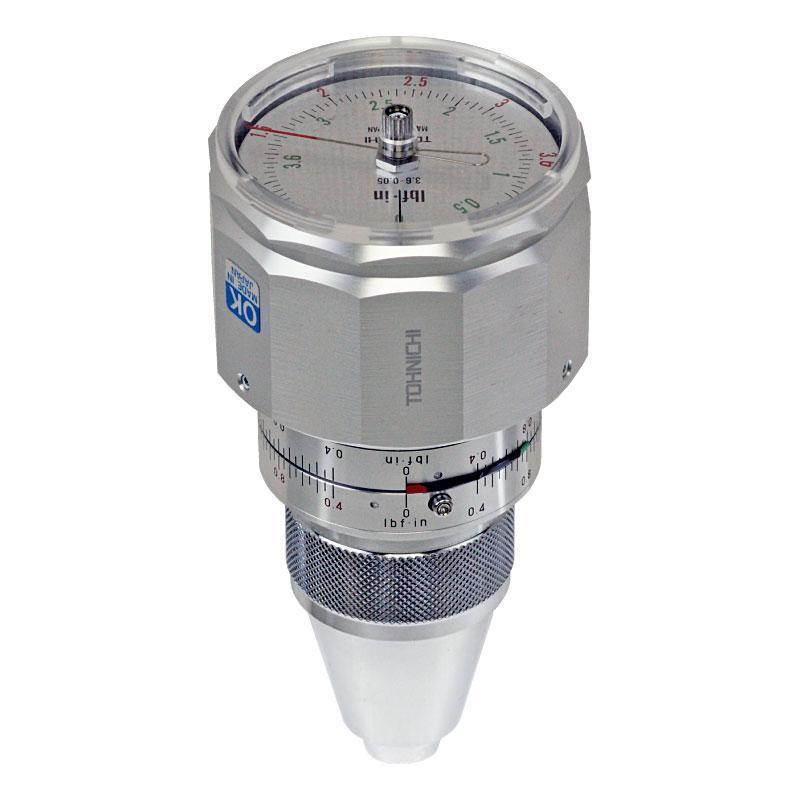

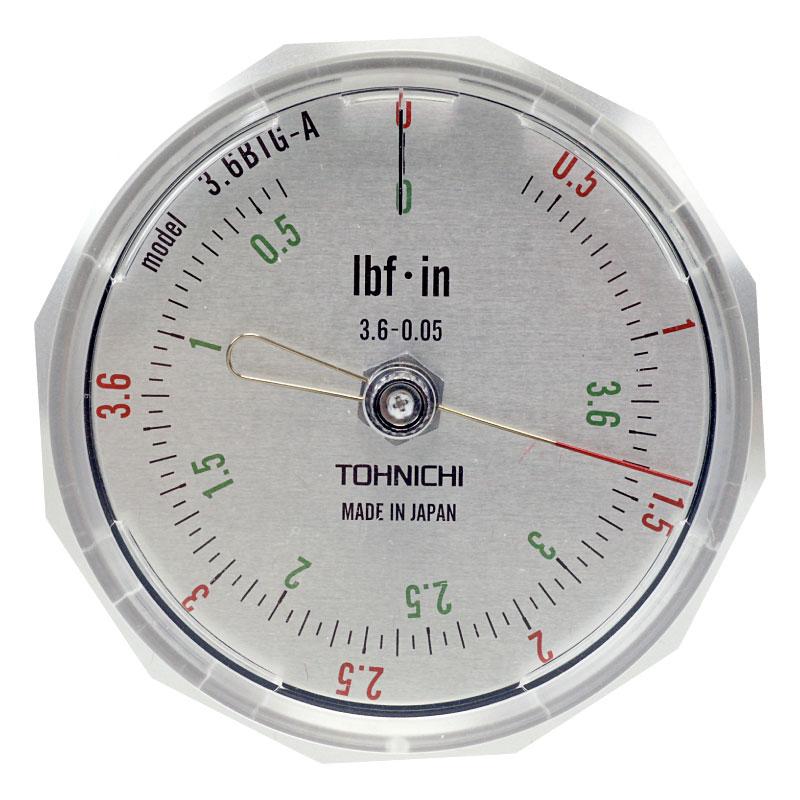

3.6BTG-A-S | Torque Gauge, 0.4-3.6, 0.05lbf.in, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

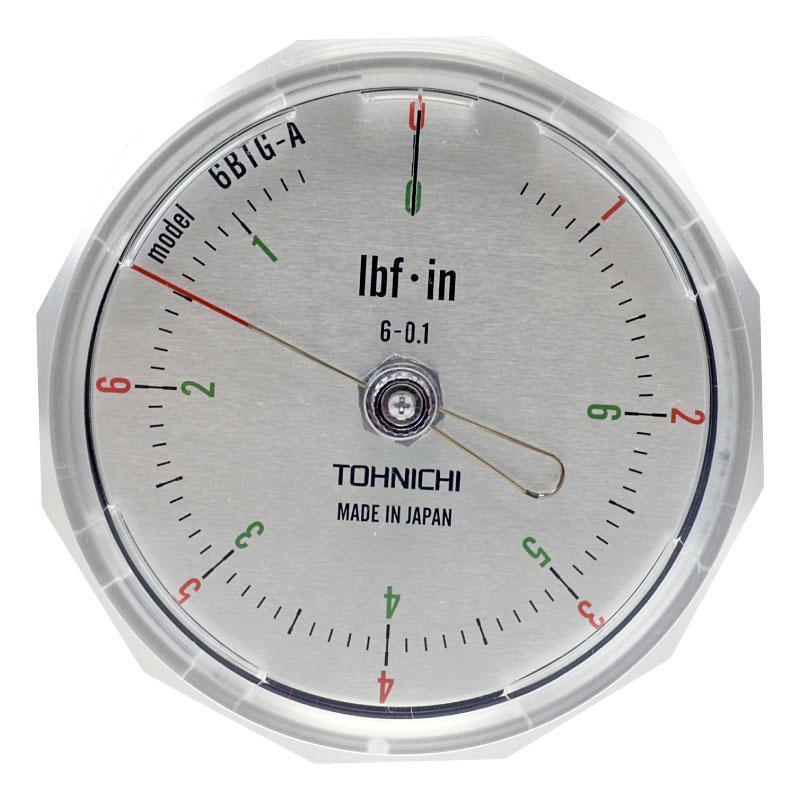

6BTG-A-S | Torque Gauge, 0.6-6, 0.1lbf.in, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

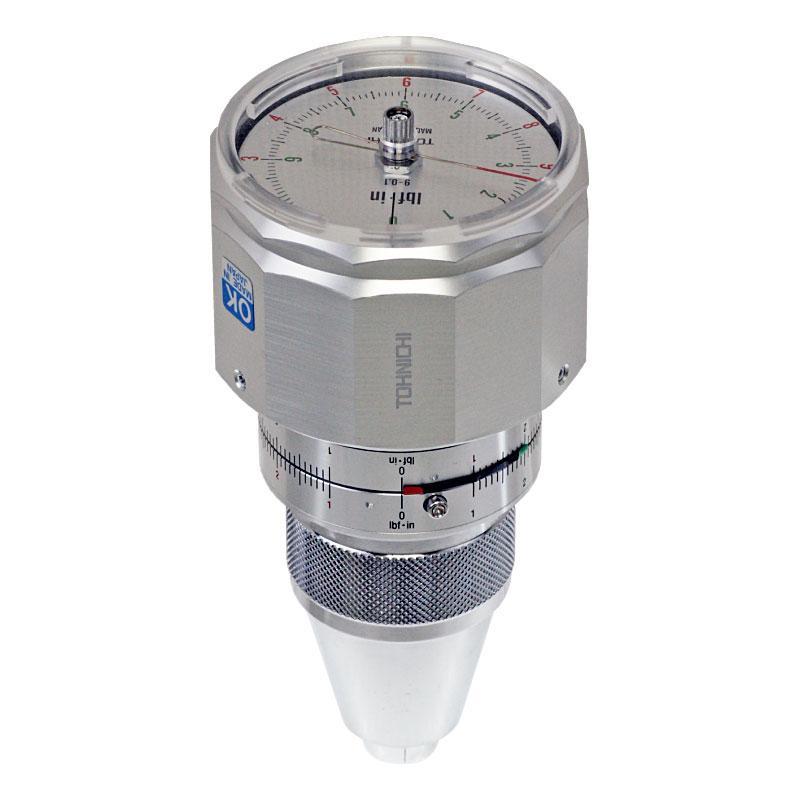

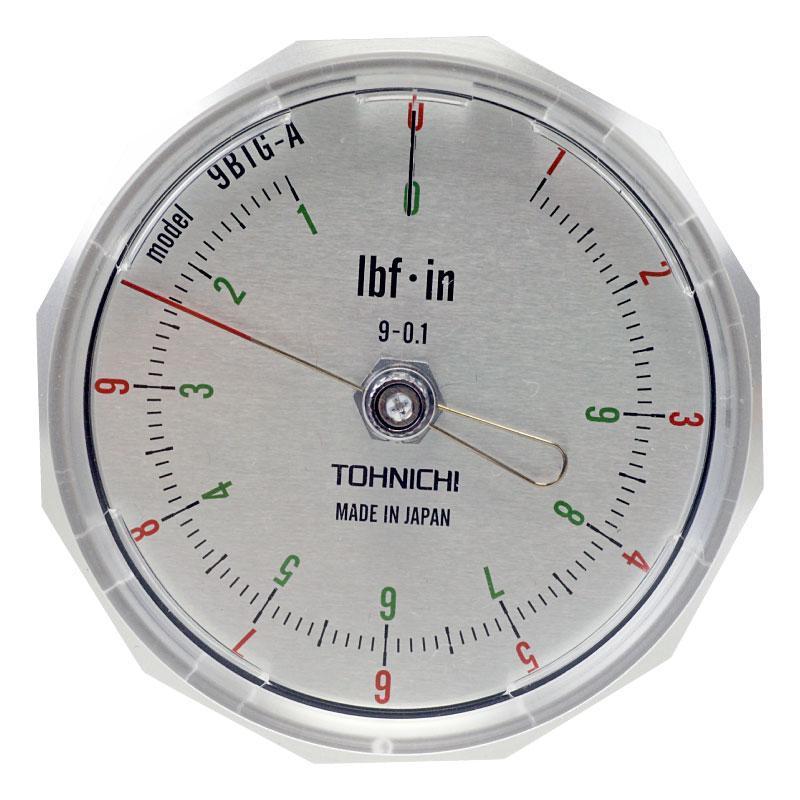

9BTG-A-S | Torque Gauge, 1-9, 0.1lbf.in, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

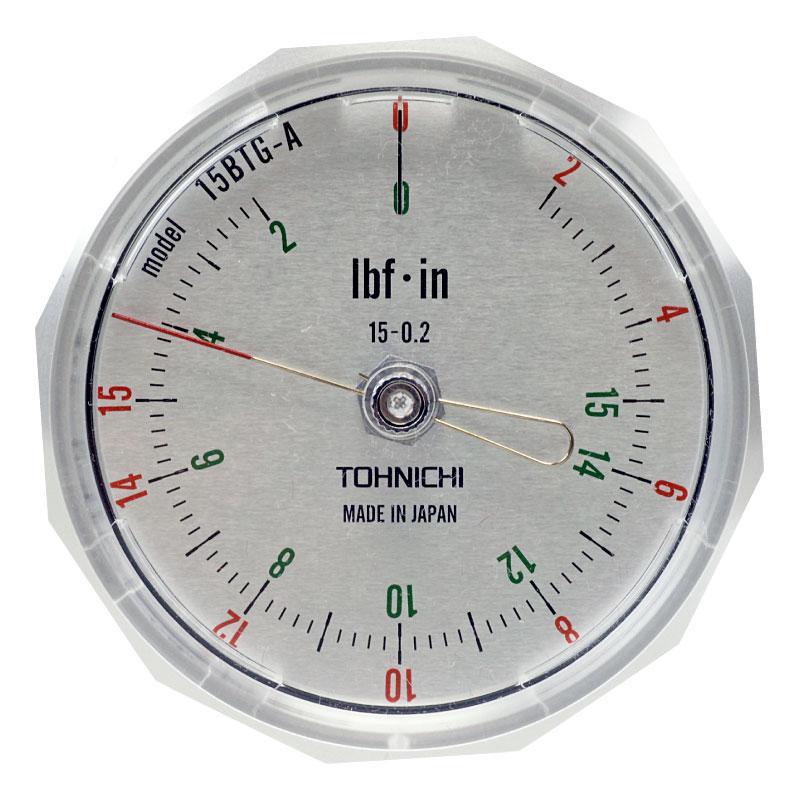

15BTG-A-S | Torque Gauge, 2-15, 0.2lbf.in, Chuck Diameter 1-8.5 mm | In stock9 item(s) | $807.00 | |

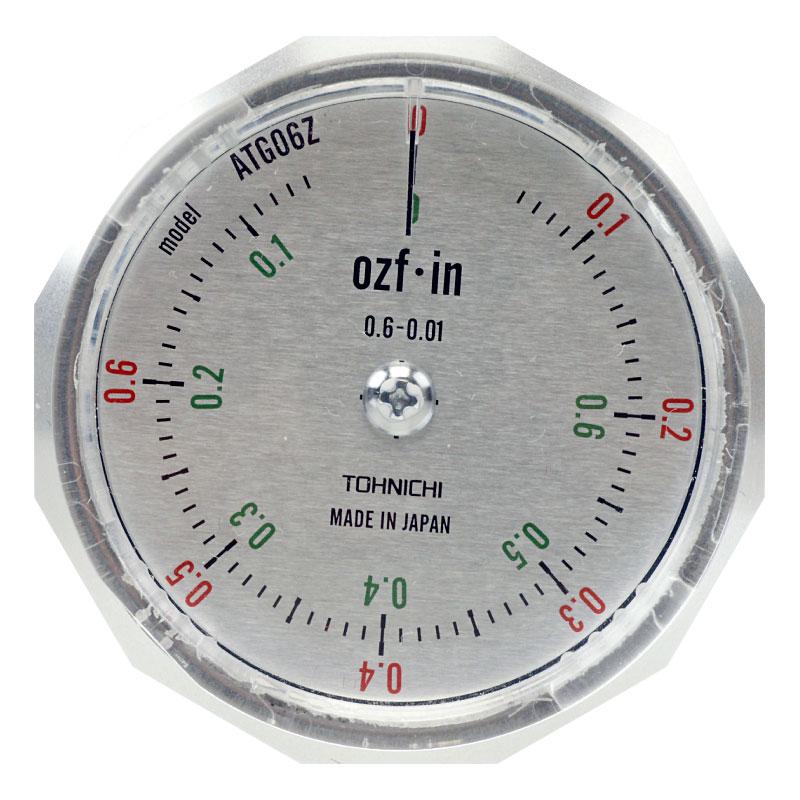

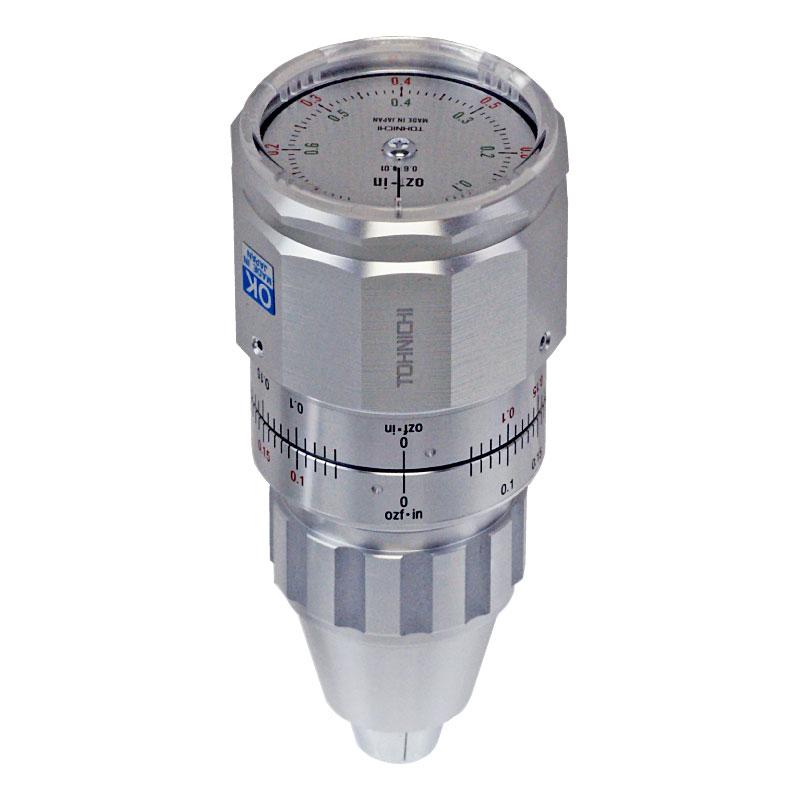

ATG06Z | Torque Gauge, 0.06-0.6, 0.01ozf.in, Chuck Diameter 1-6.5 mm | In stock4 item(s) | $510.00 | |

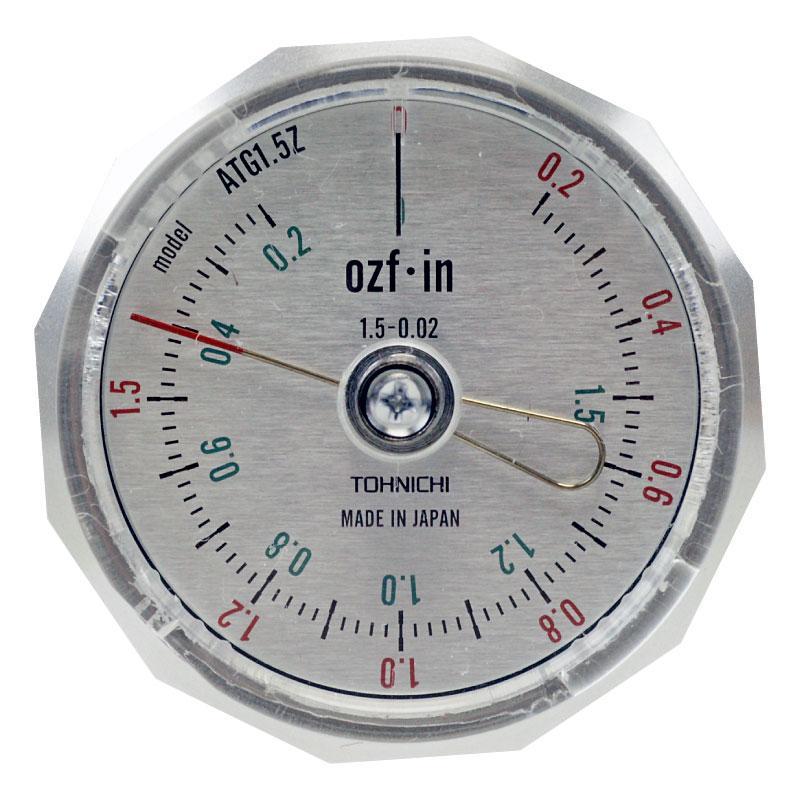

ATG1.5Z-S | Torque Gauge, 0.2-1.5, 0.02ozf.in, Chuck Diameter 1-6.5 mm | In stock8 item(s) | $573.00 | |

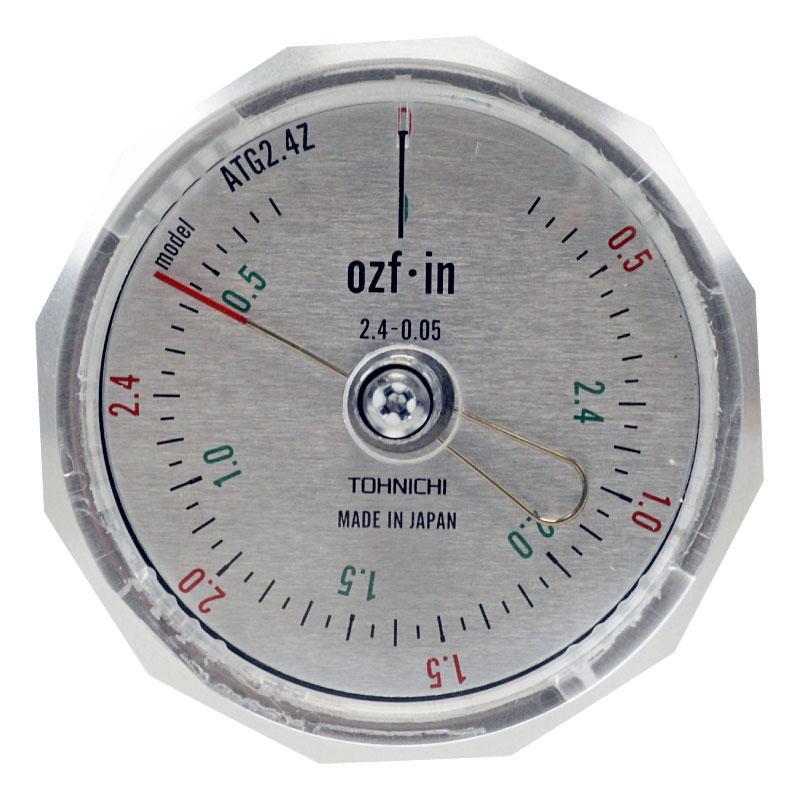

ATG2.4Z-S | Torque Gauge, 0.3-2.4, 0.05ozf.in, Chuck Diameter 1-6.5 mm | In stock10 item(s) | $573.00 | |

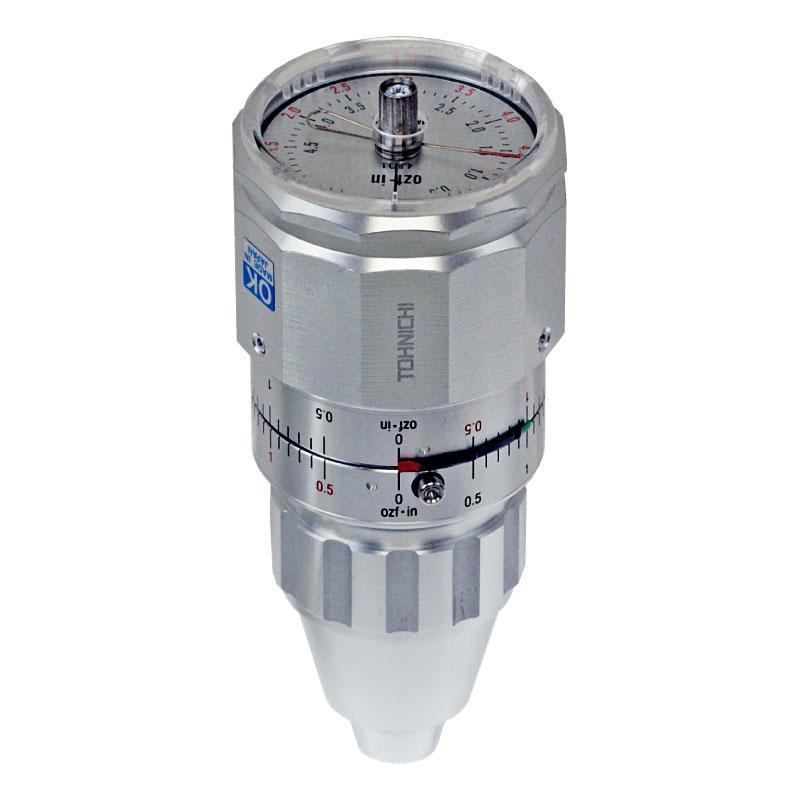

ATG4.5Z-S | Torque Gauge, 0.5-4.5, 0.1ozf.in, Chuck Diameter 1-6.5 mm | In stock5 item(s) | $573.00 | |

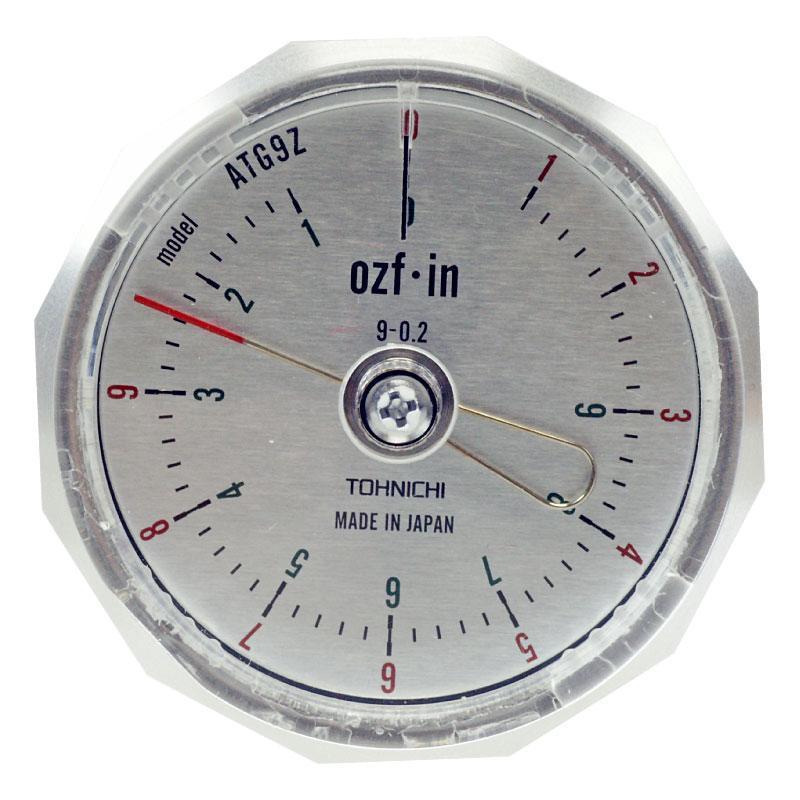

ATG9Z-S | Torque Gauge, 1-9, 0.2ozf.in, Chuck Diameter 1-6.5 mm | In stock5 item(s) | $573.00 | |

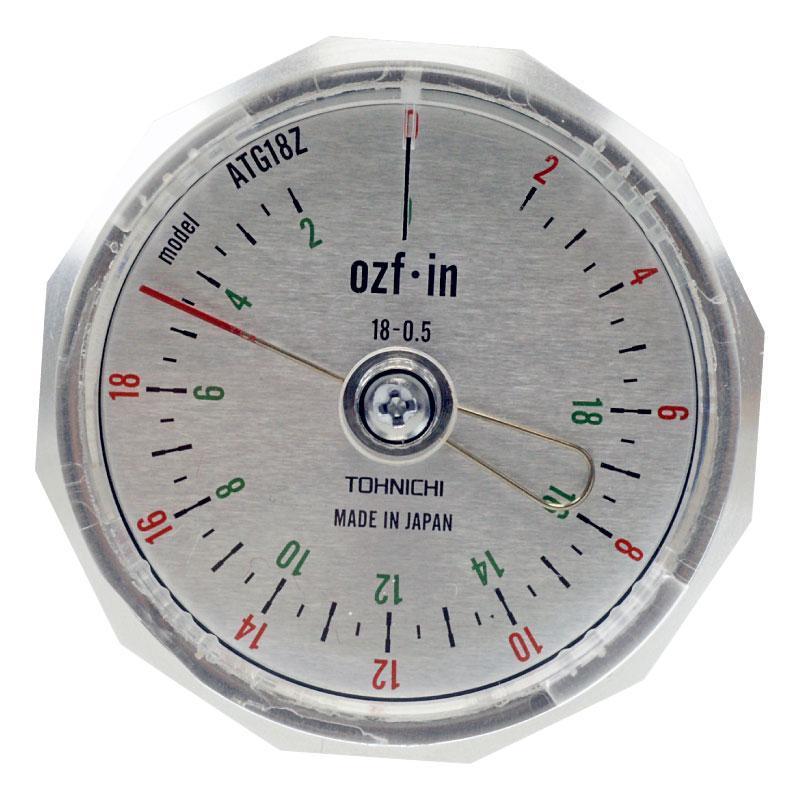

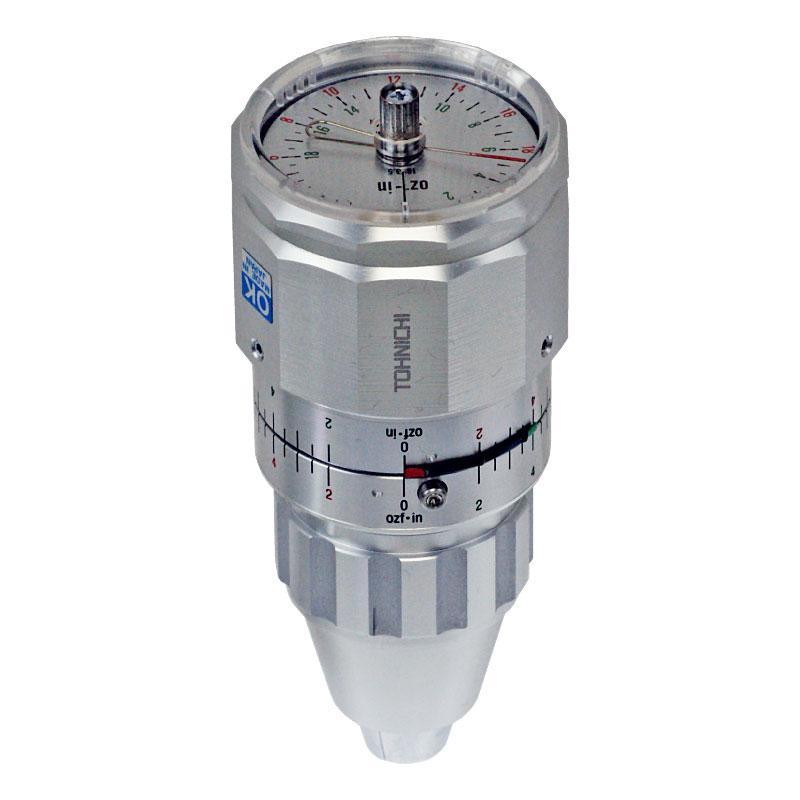

ATG18Z-S | Torque Gauge, 2-18, 0.5ozf.in, Chuck Diameter 1-6.5 mm | In stock13 item(s) | $573.00 | |

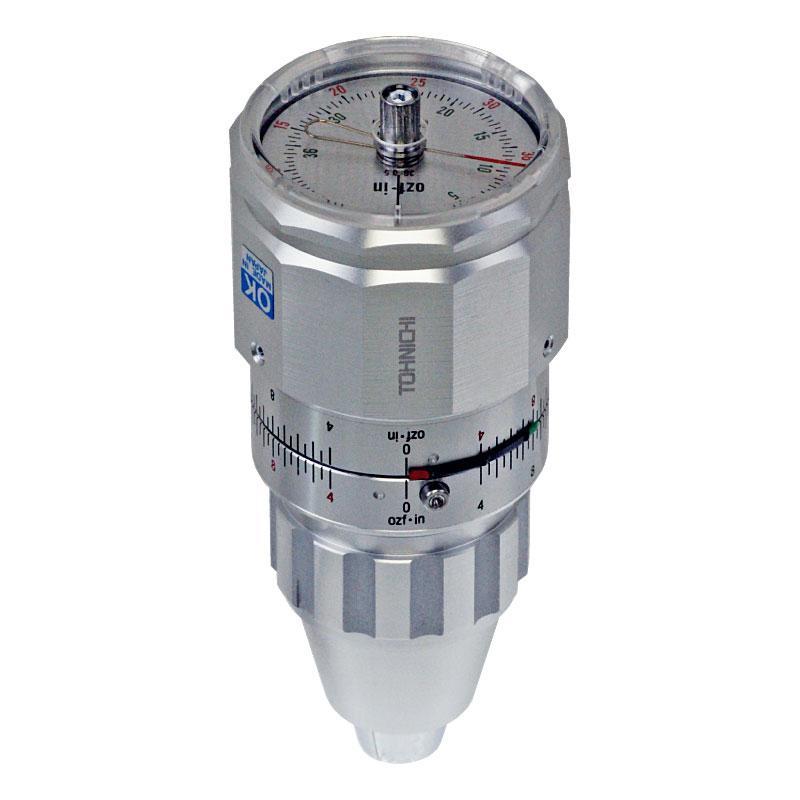

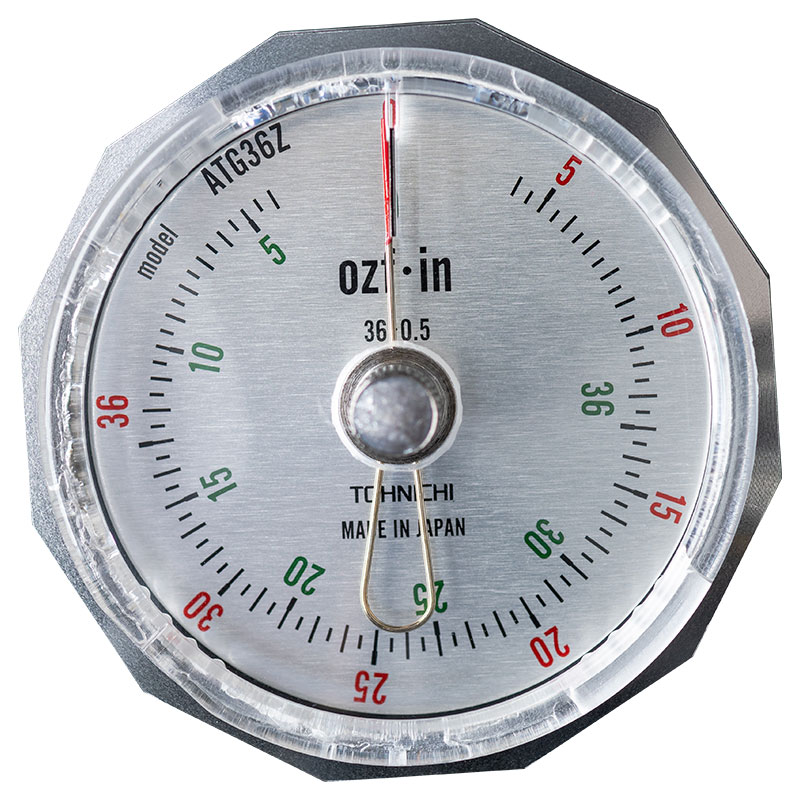

ATG36Z-S | Torque Gauge, 4-36, 0.5ozf.in, Chuck Diameter 1-6.5 mm | In stock17 item(s) | $573.00 | |

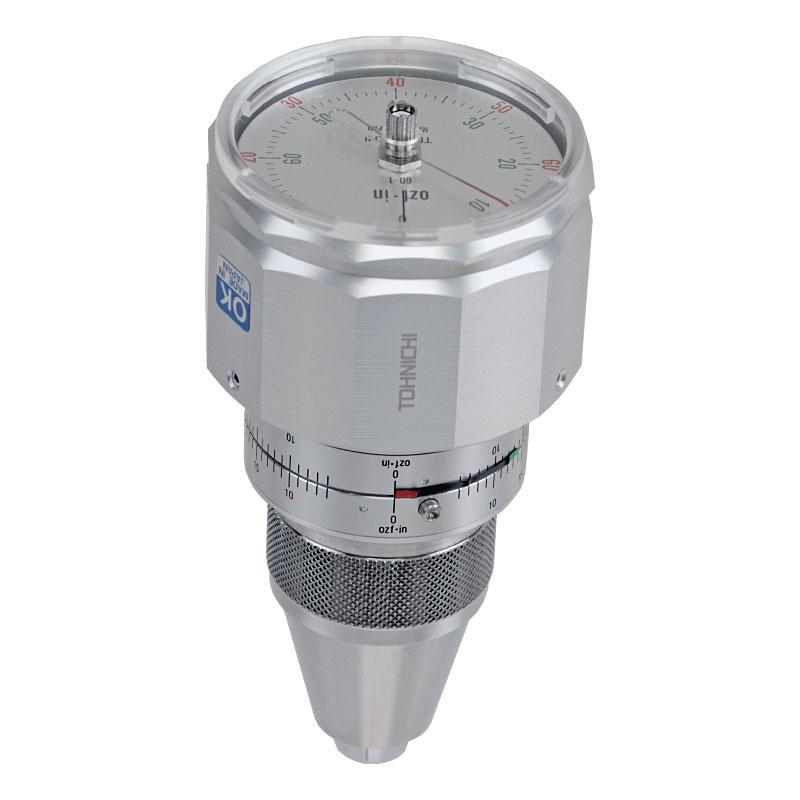

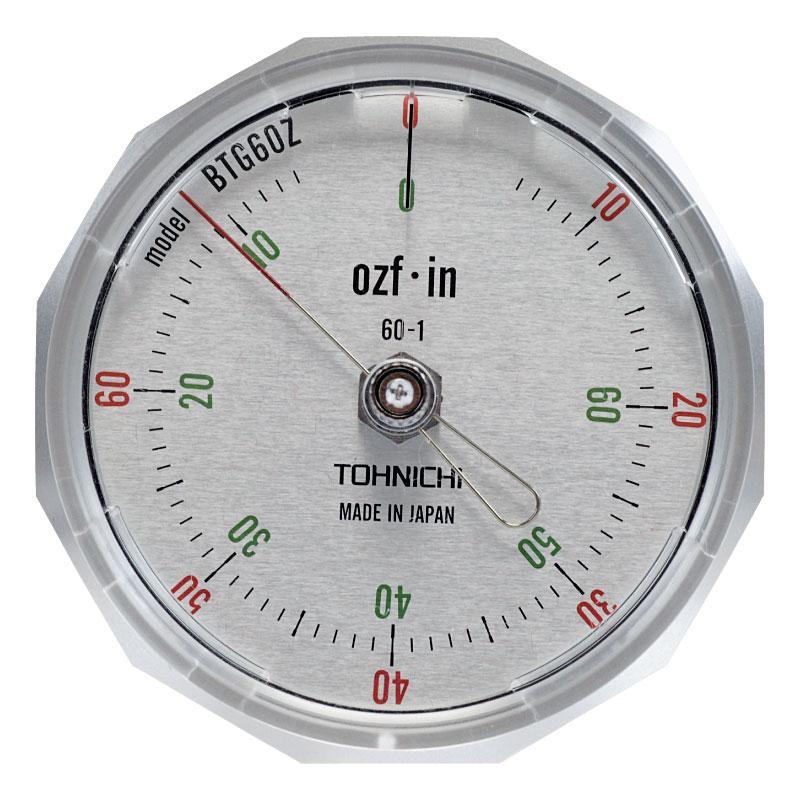

BTG60Z-S | Torque Gauge, 6-60, 1ozf.in, Chuck Diameter 1-8.5 mm | In stock3 item(s) | $807.00 | |

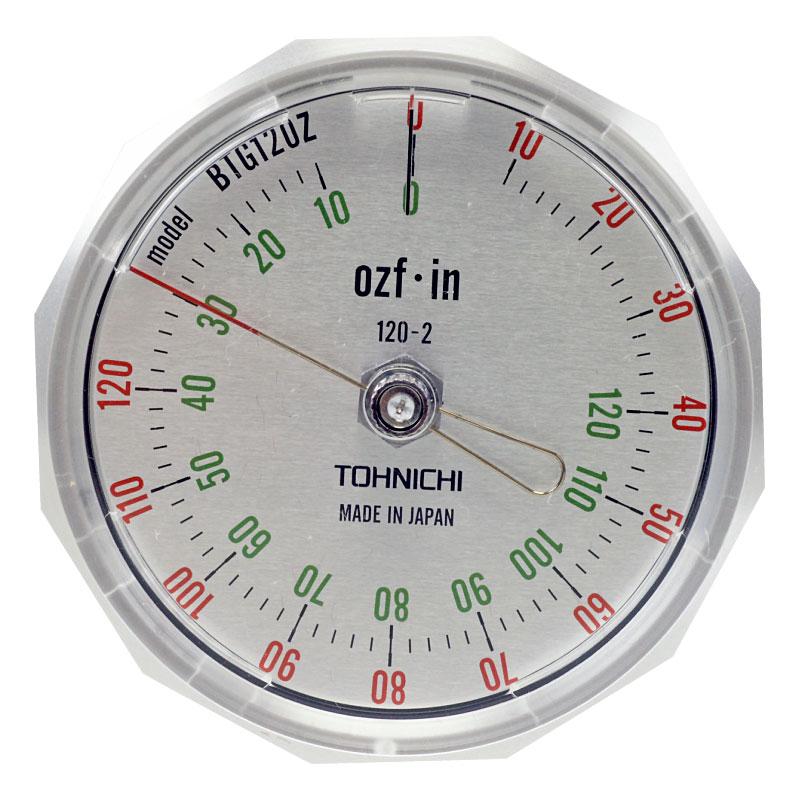

BTG120Z-S | Torque Gauge, 10-120, 2ozf.in, Chuck Diameter 1-8.5 mm | In stock8 item(s) | $807.00 |
SI Models
Thumbnail | Name | Short description | Stock status | Price |
---|---|---|---|---|

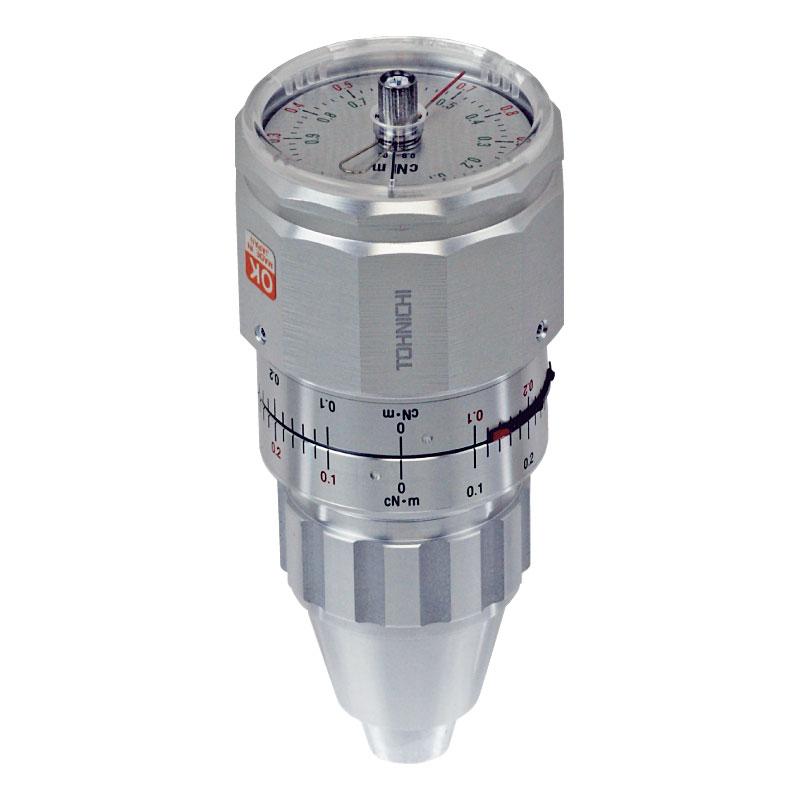

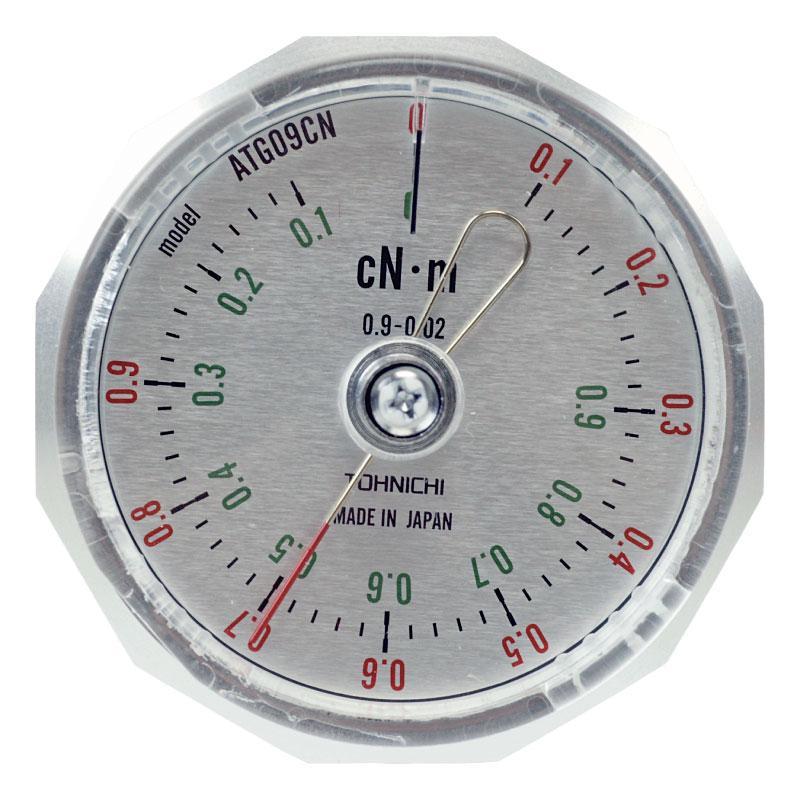

ATG09CN-S | Torque Gauge, 0.1-0.9, 0.02cN.m, Chuck Diameter 1-6.5 mm | In stock1 item(s) | $573.00 | |

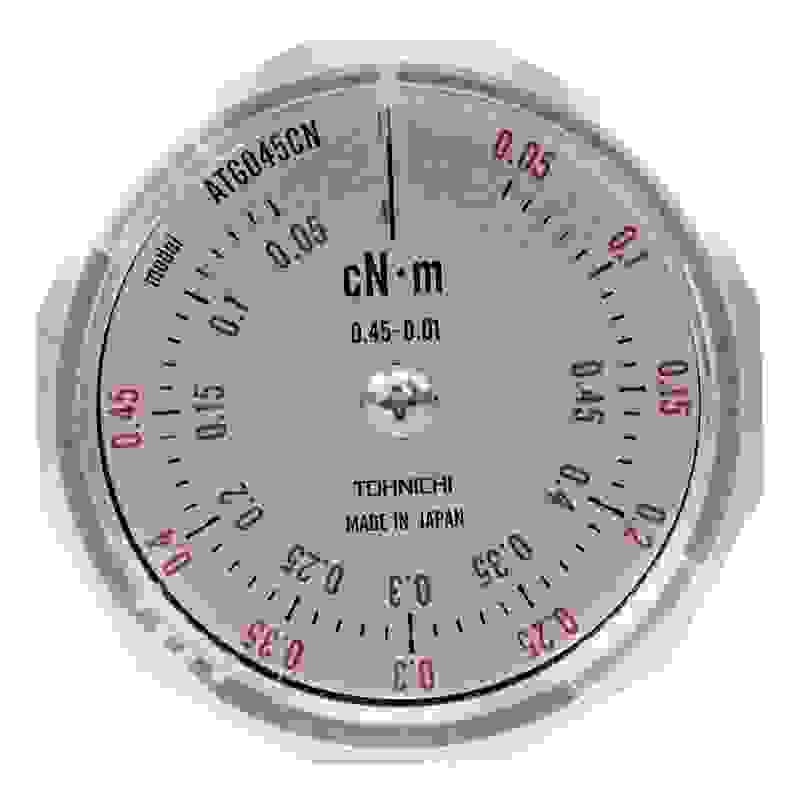

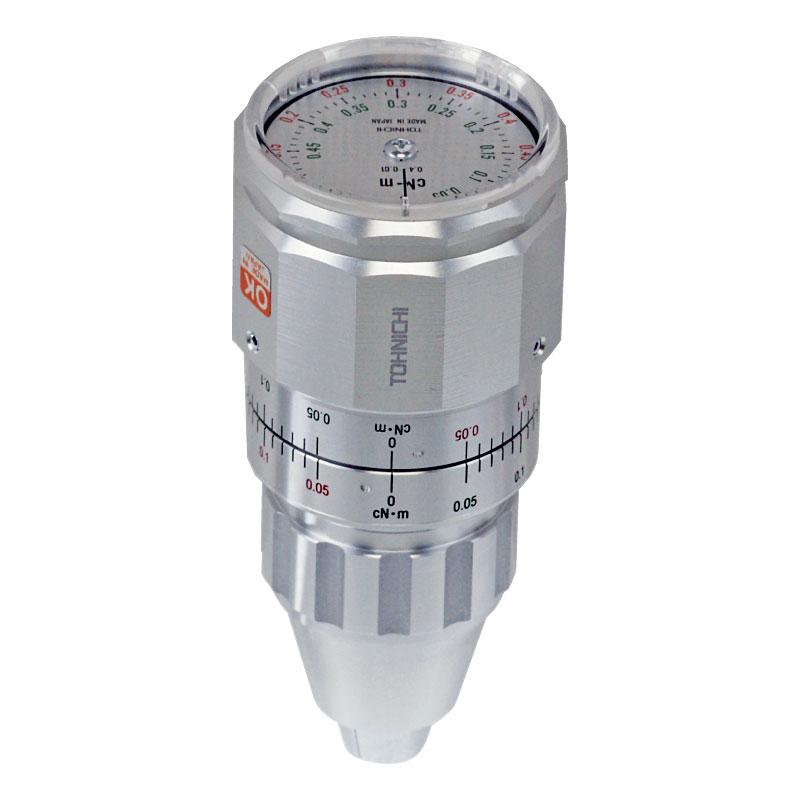

ATG045CN | Torque Gauge, 0.05-0.45, 0.01cN.m, Chuck Diameter 1-6.5 mm | In stock4 item(s) | $510.00 | |

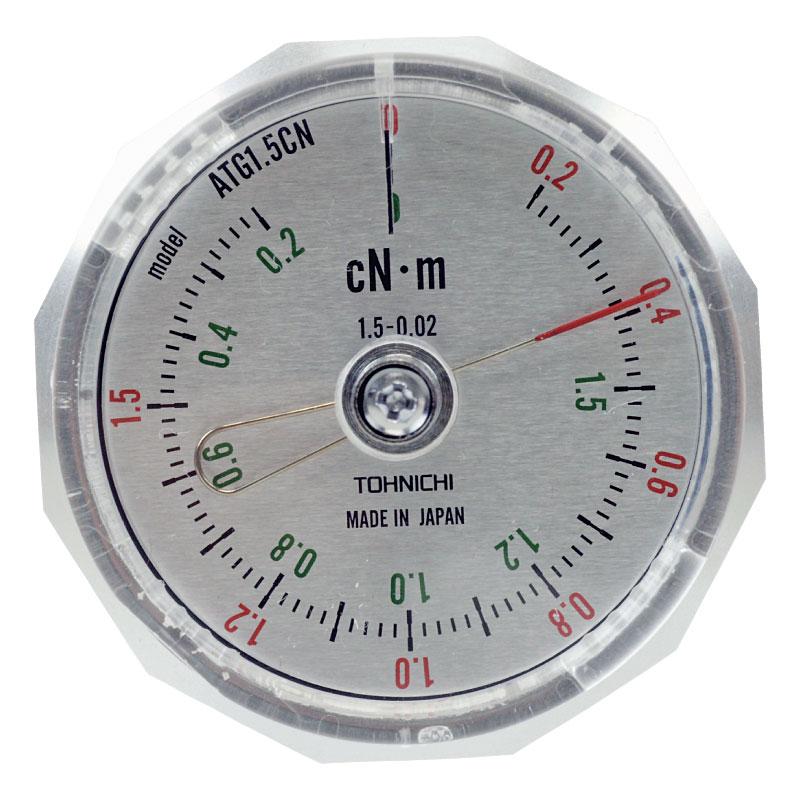

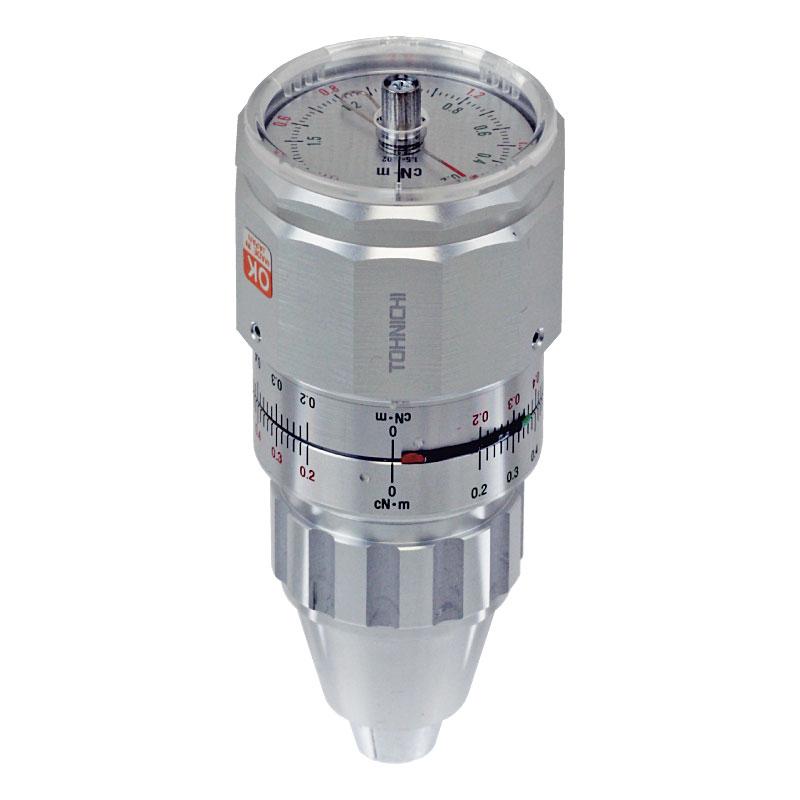

ATG1.5CN-S | Torque Gauge, 0.2-1.5, 0.02cN.m, Chuck Diameter 1-6.5 mm | In stock3 item(s) | $573.00 | |

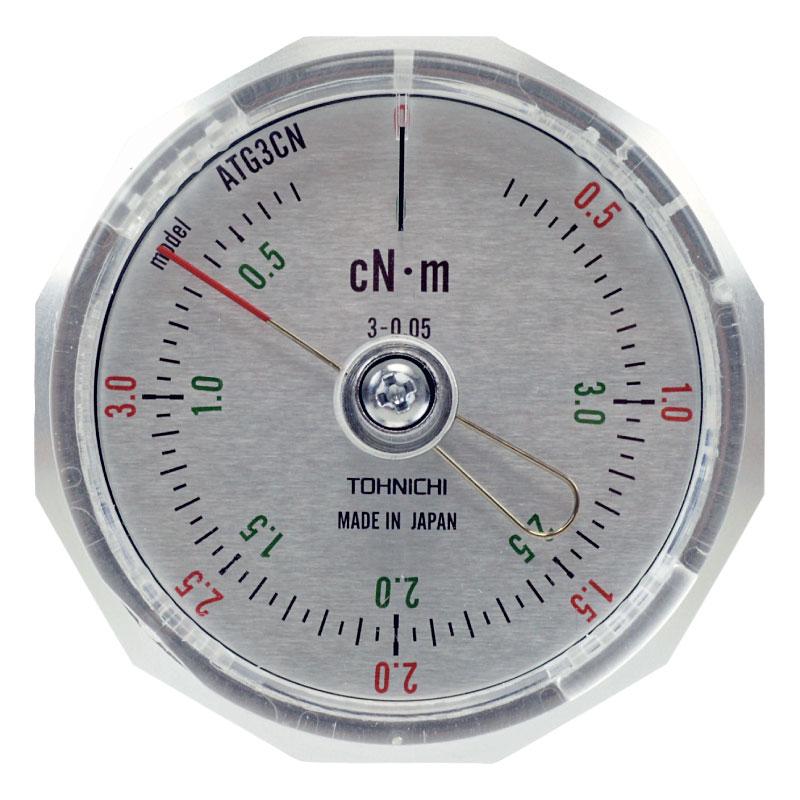

ATG3CN-S | Torque Gauge, 0.3-3, 0.05cN.m, Chuck Diameter 1-6.5 mm | In stock3 item(s) | $573.00 | |

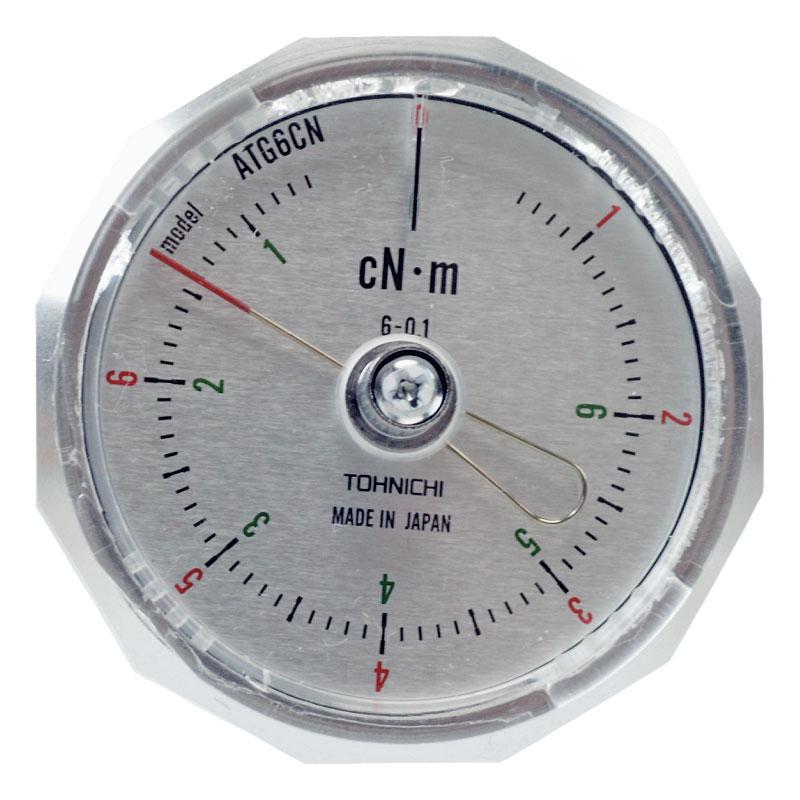

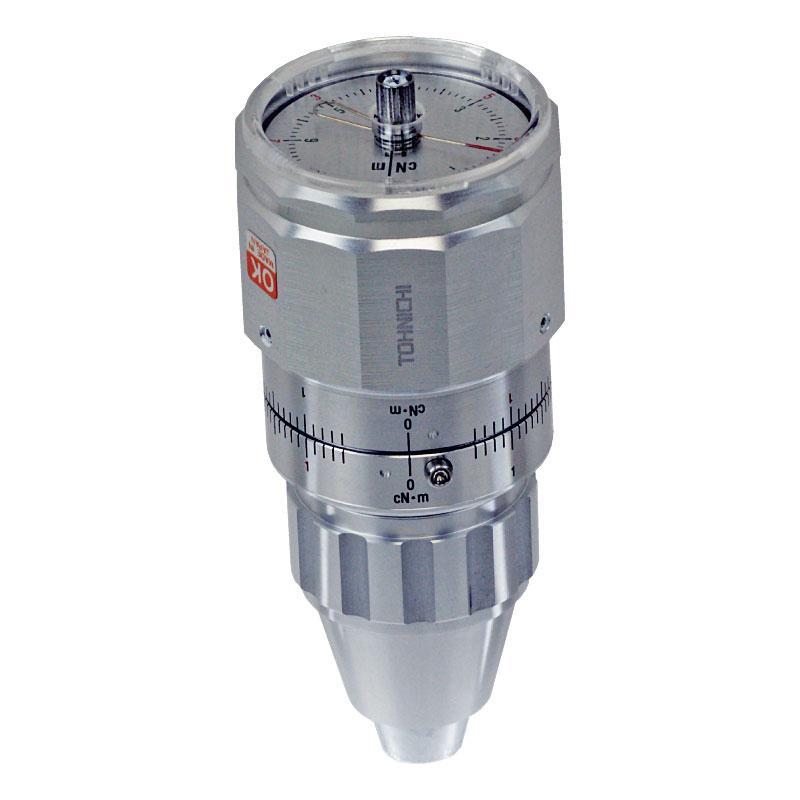

ATG6CN-S | Torque Gauge, 0.6-6, 0.1cN.m, Chuck Diameter 1-6.5 mm | In stock4 item(s) | $573.00 | |

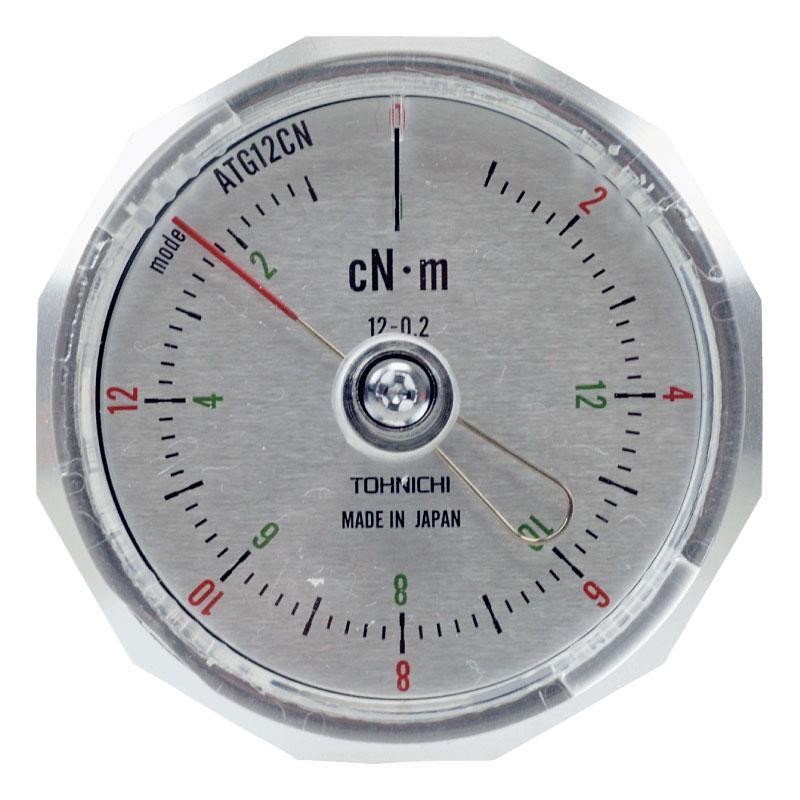

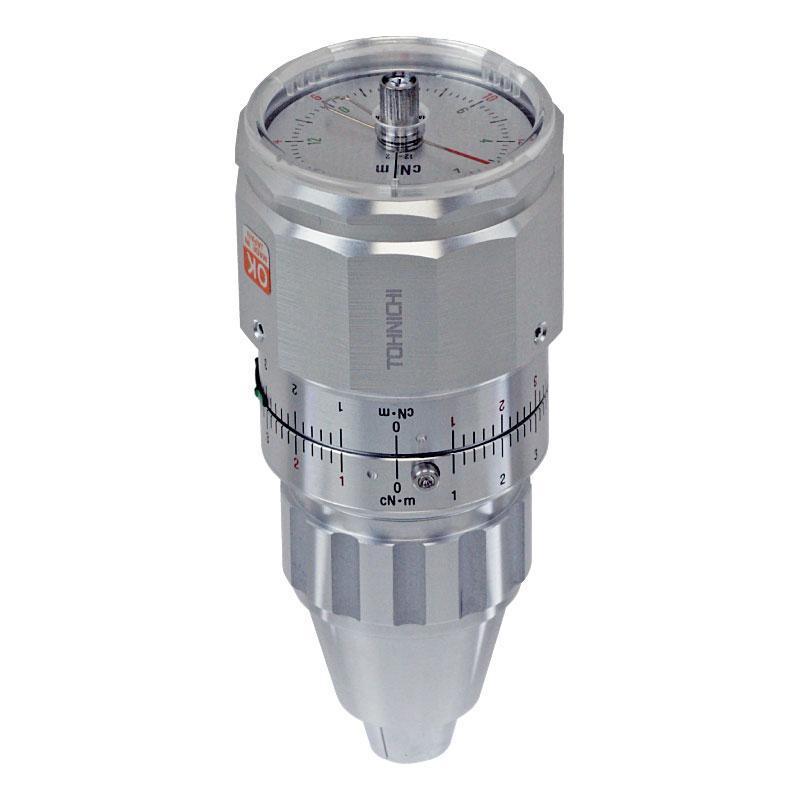

ATG12CN-S | Torque Gauge, 1-12, 0.2cN.m, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

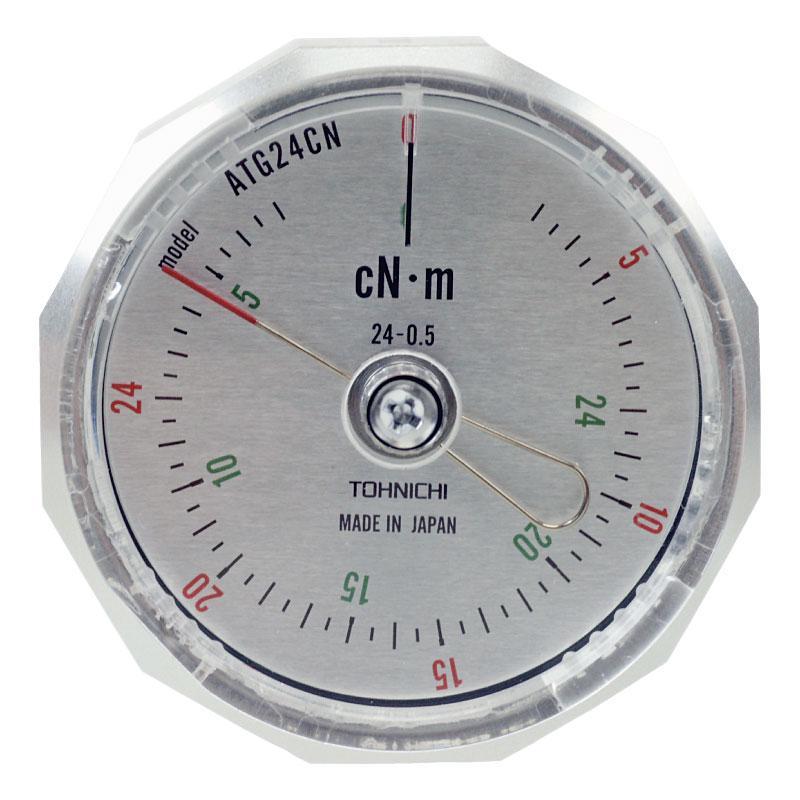

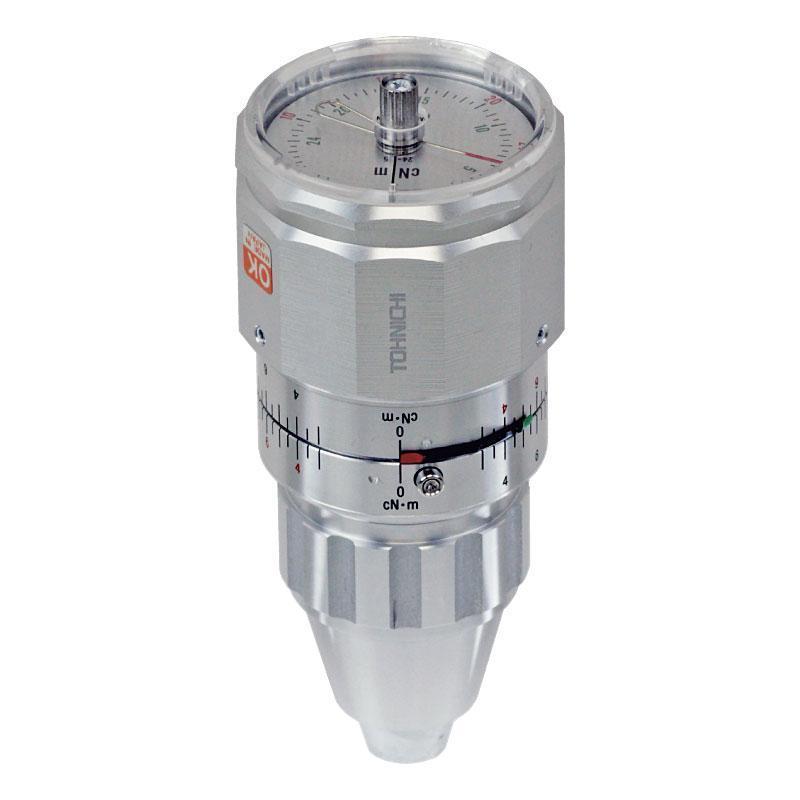

ATG24CN-S | Torque Gauge, 3-24, 0.5cN.m, Chuck Diameter 1-6.5 mm | In stock4 item(s) | $573.00 | |
BTG15CN-S | Torque Gauge, 2-15, 0.2cN.m, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

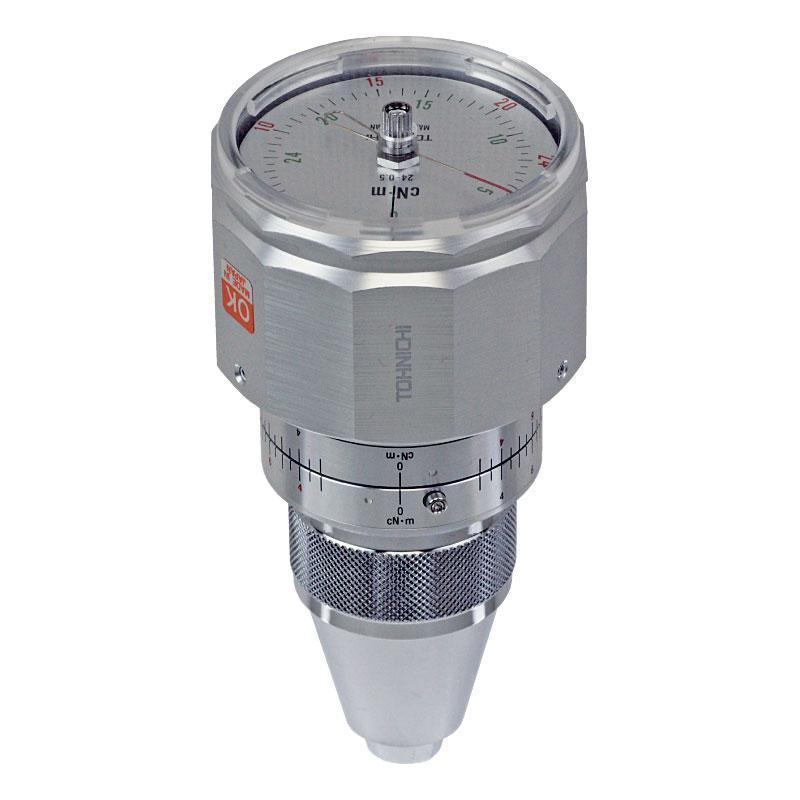

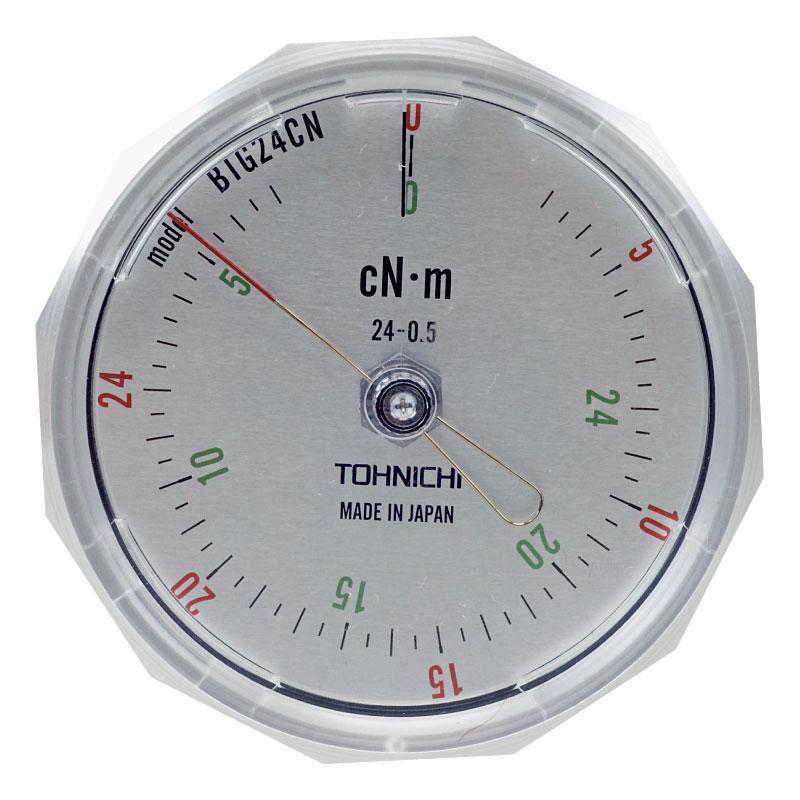

BTG24CN-S | Torque Gauge, 3-24, 0.5cN.m, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

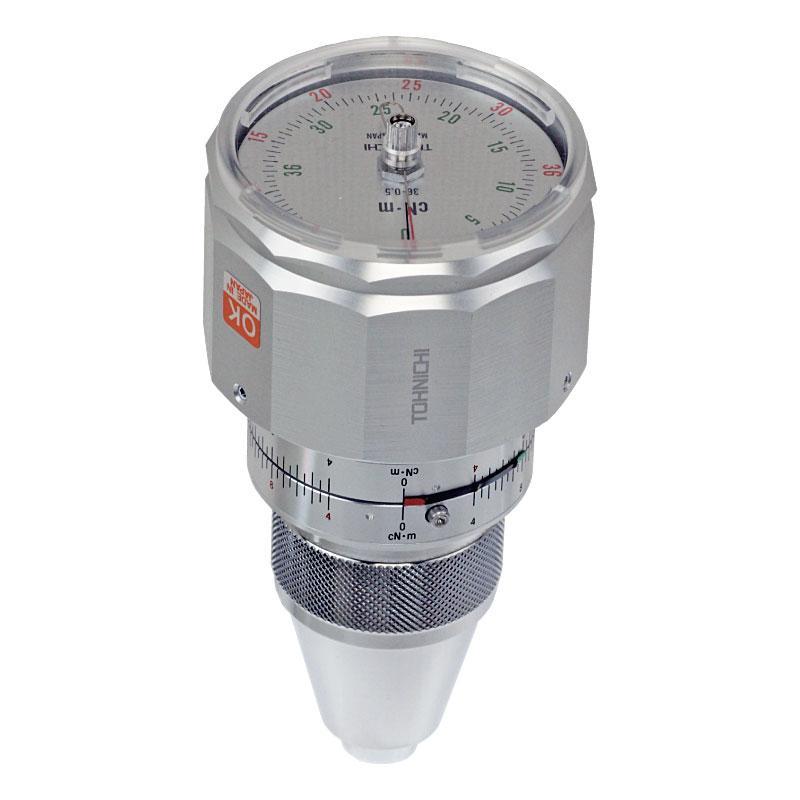

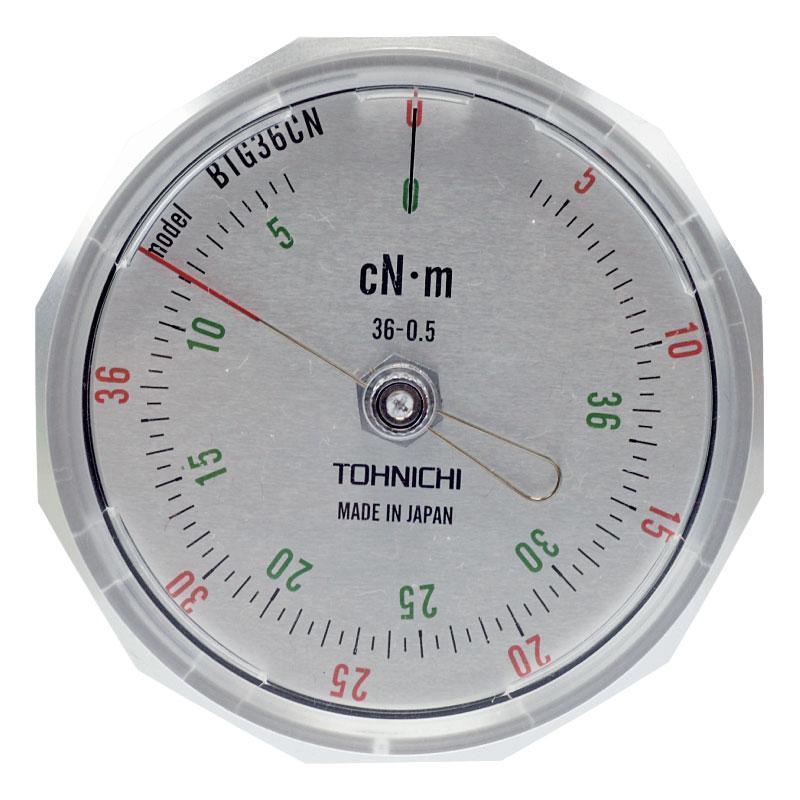

BTG36CN-S | Torque Gauge, 4-36, 0.5cN.m, Chuck Diameter 1-8.5 mm | In stock3 item(s) | $807.00 | |

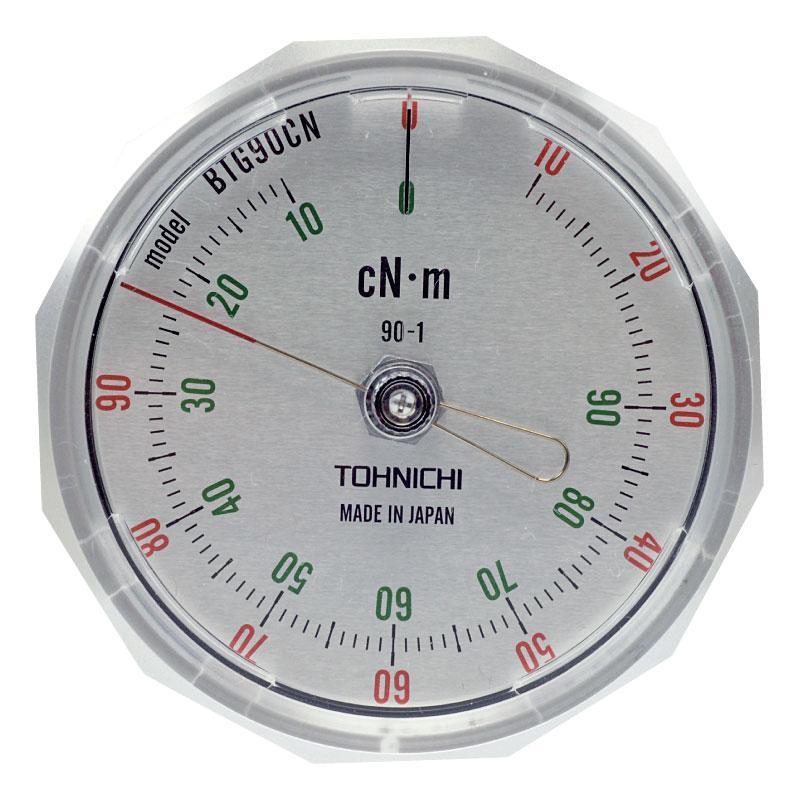

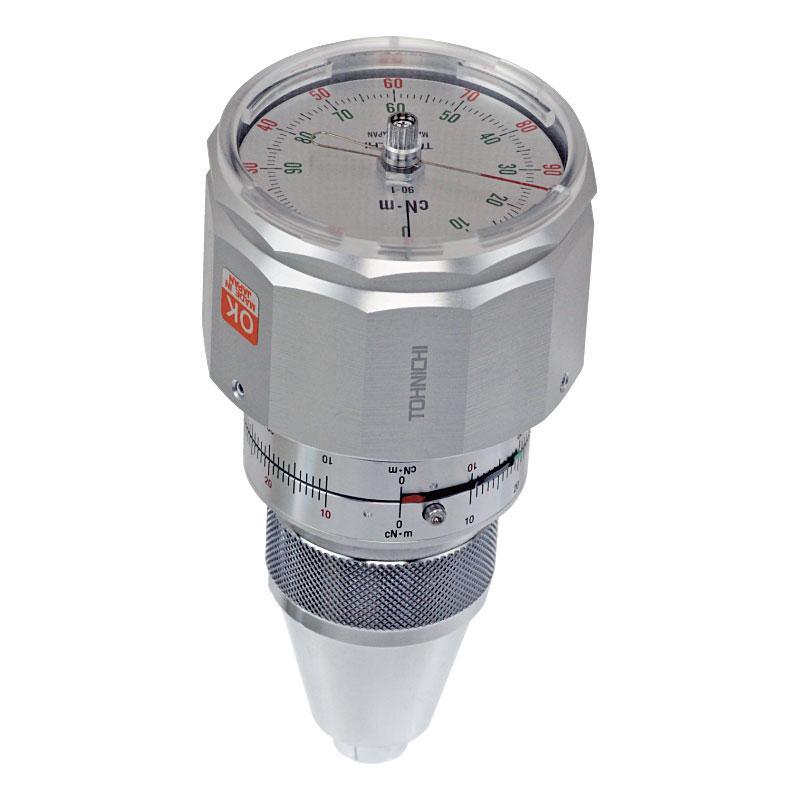

BTG90CN-S | Torque Gauge, 10-90, 1cN.m, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 | |

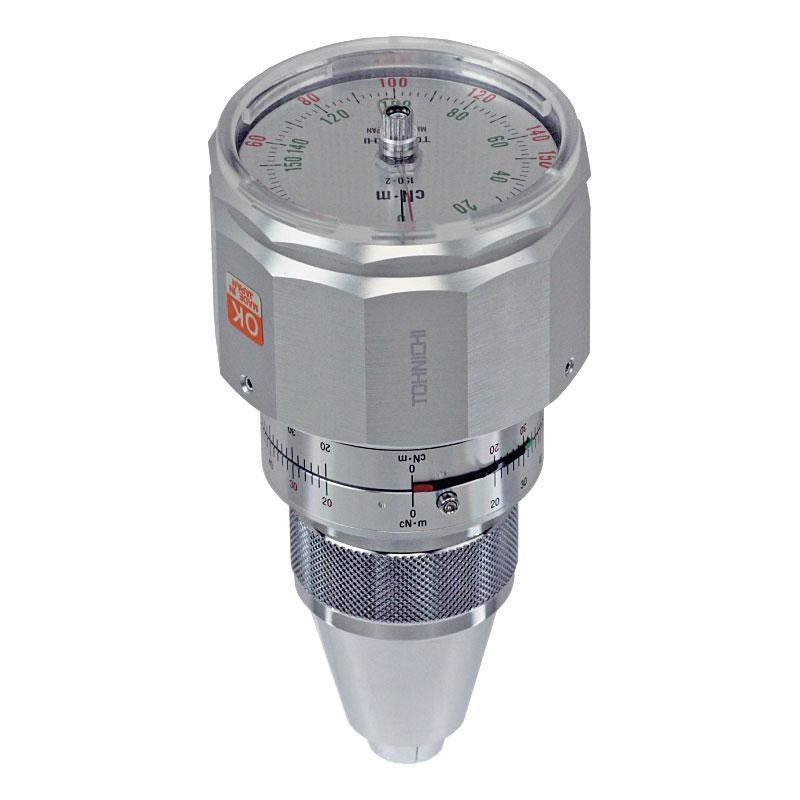

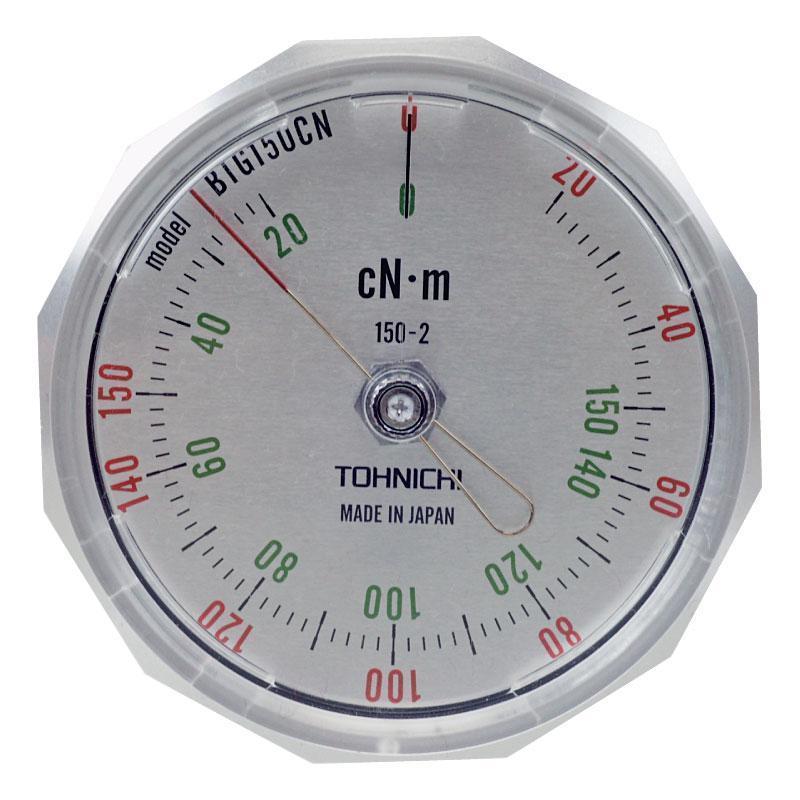

BTG150CN-S | Torque Gauge, 20-150, 2cN.m, Chuck Diameter 1-8.5 mm | In stock4 item(s) | $807.00 |
Metric Models
Thumbnail | Name | Short description | Stock status | Price |
---|---|---|---|---|

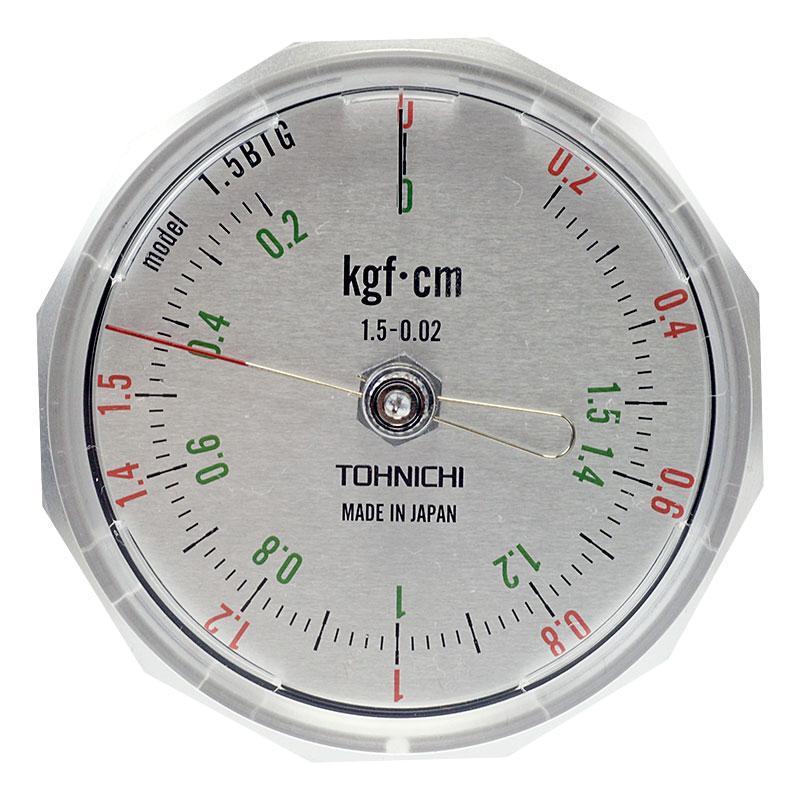

1.5BTG-S | Torque Gauge, 0.2-1.5, 0.02kgf.cm, Chuck Diameter 1-8.5 mm | On backorder item(s) | $807.00 | |

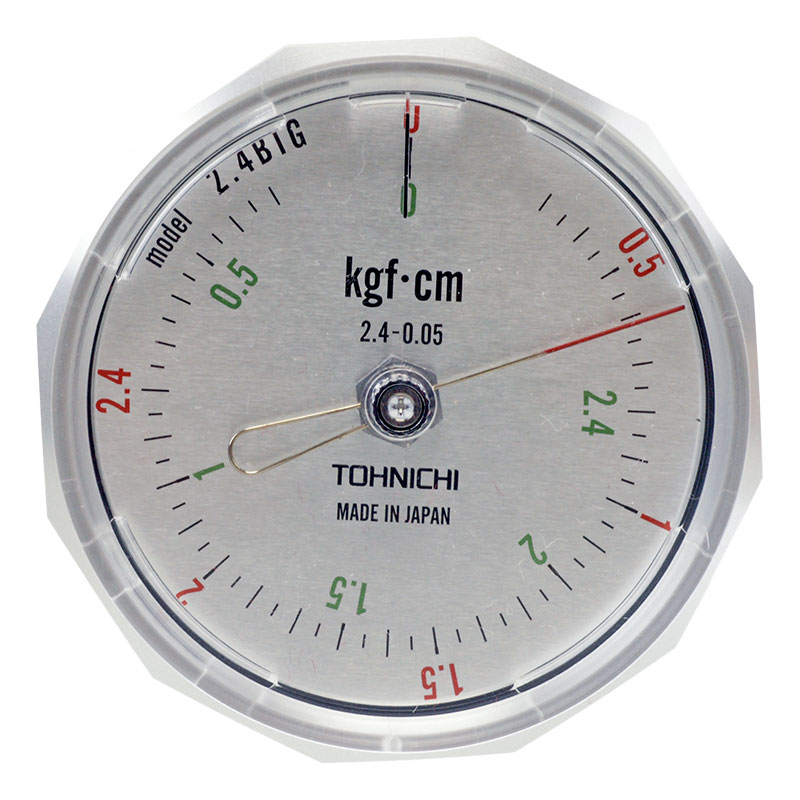

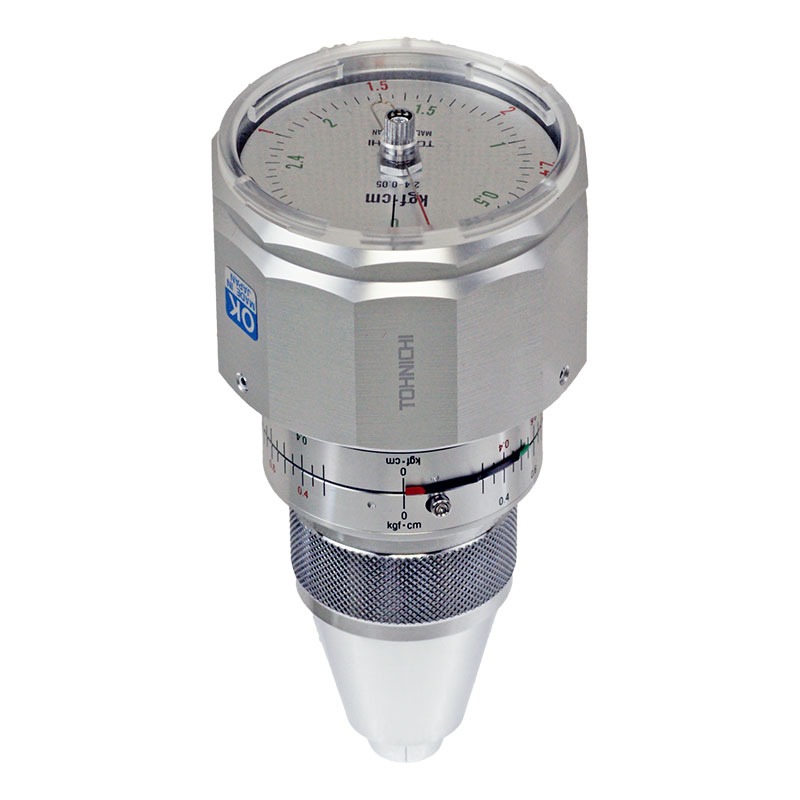

2.4BTG-S | Torque Gauge, METRIC 0.3-2.4, 0.05kgf.cm, Chuck Diameter 1-8.5 mm | On backorder item(s) | $807.00 | |

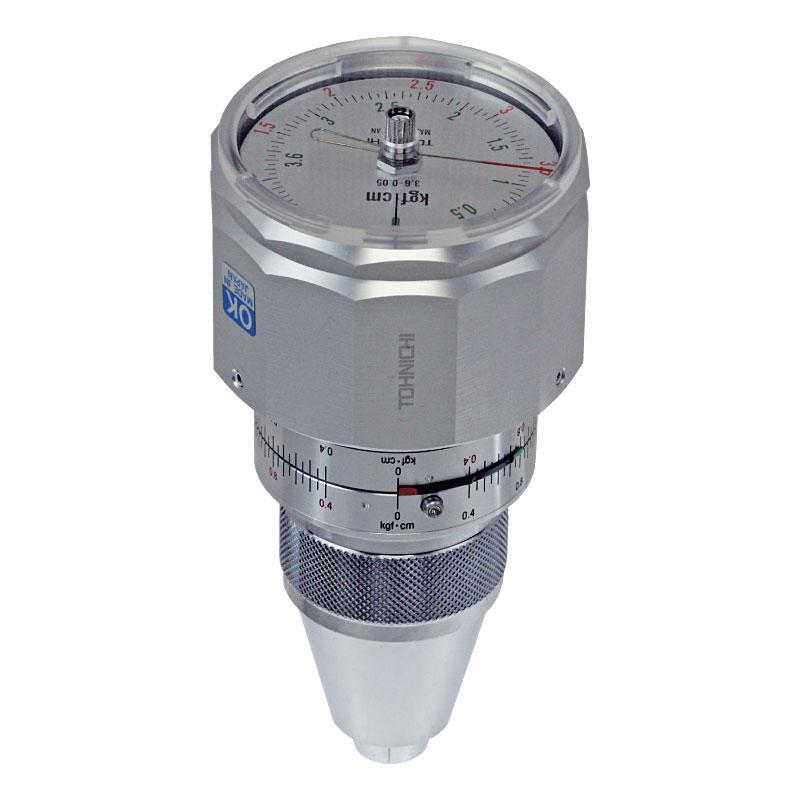

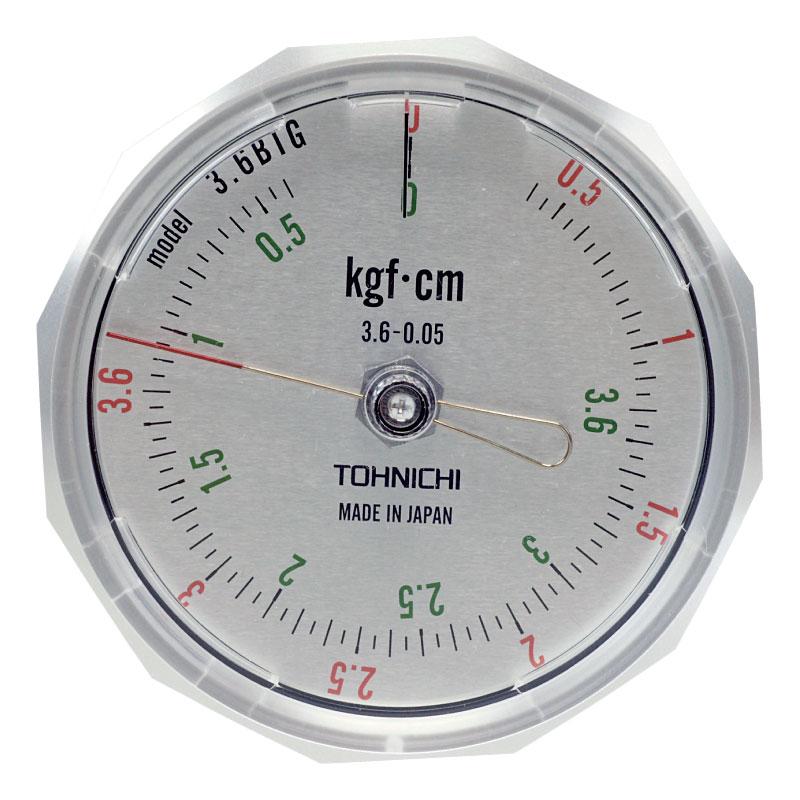

3.6BTG-S | Torque Gauge, METRIC 0.4-3.6, 0.05kgf.cm, Chuck Diameter 1-8.5 mm | On backorder item(s) | $807.00 | |

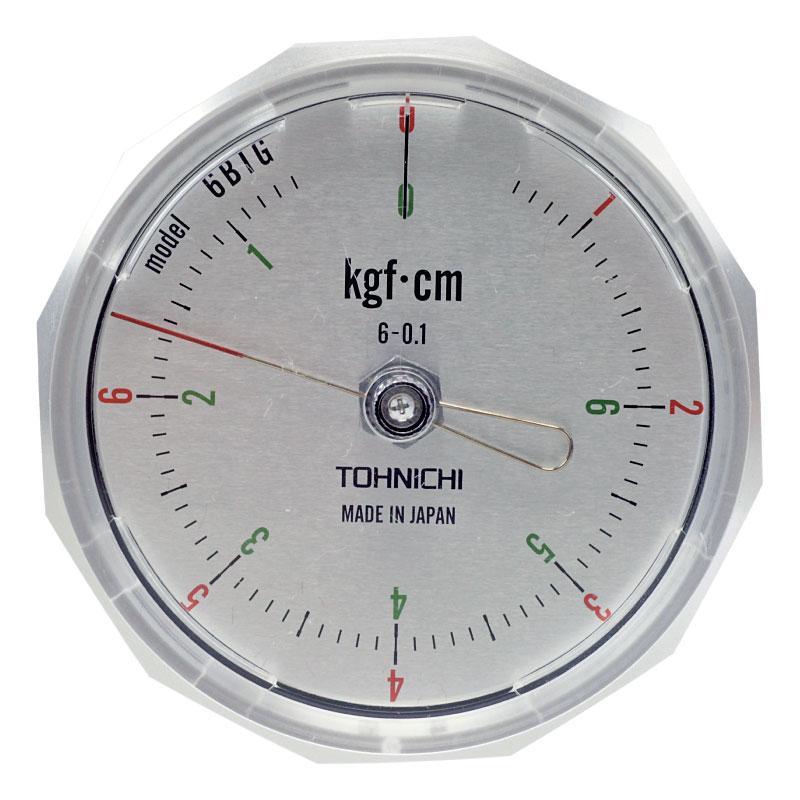

6BTG-S | Torque Gauge, METRIC 0.6-6, 0.1kgf.cm, Chuck Diameter 1-8.5 mm | On backorder item(s) | $807.00 | |

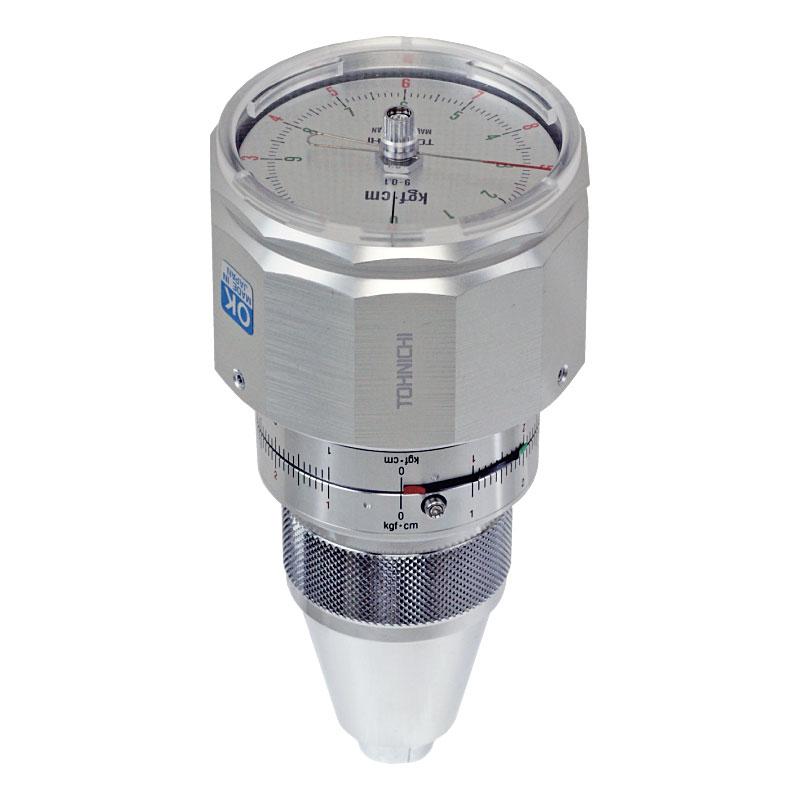

9BTG-S | Torque Gauge, METRIC 1-9, 0.1kgf.cm, Chuck Diameter 1-8.5 mm | In stock1 item(s) | $807.00 | |

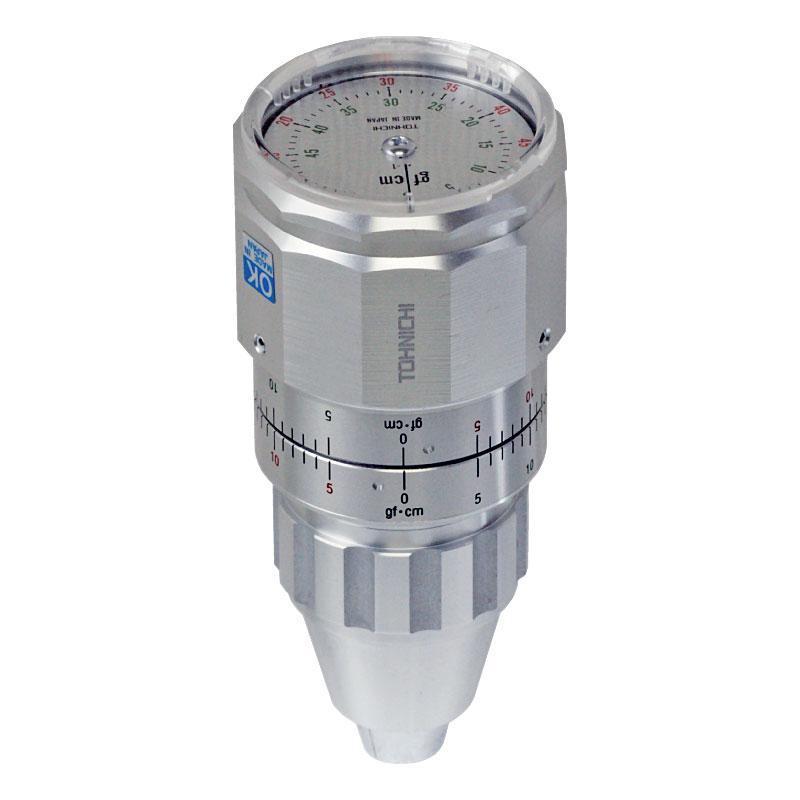

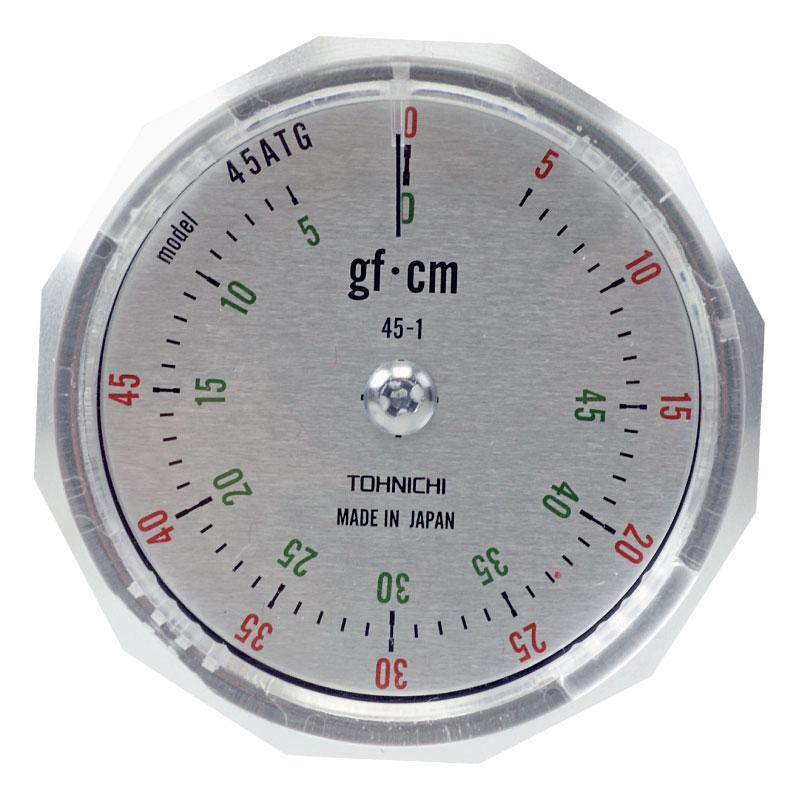

45ATG | Torque Gauge, METRIC 5-45, 1gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $510.00 | |

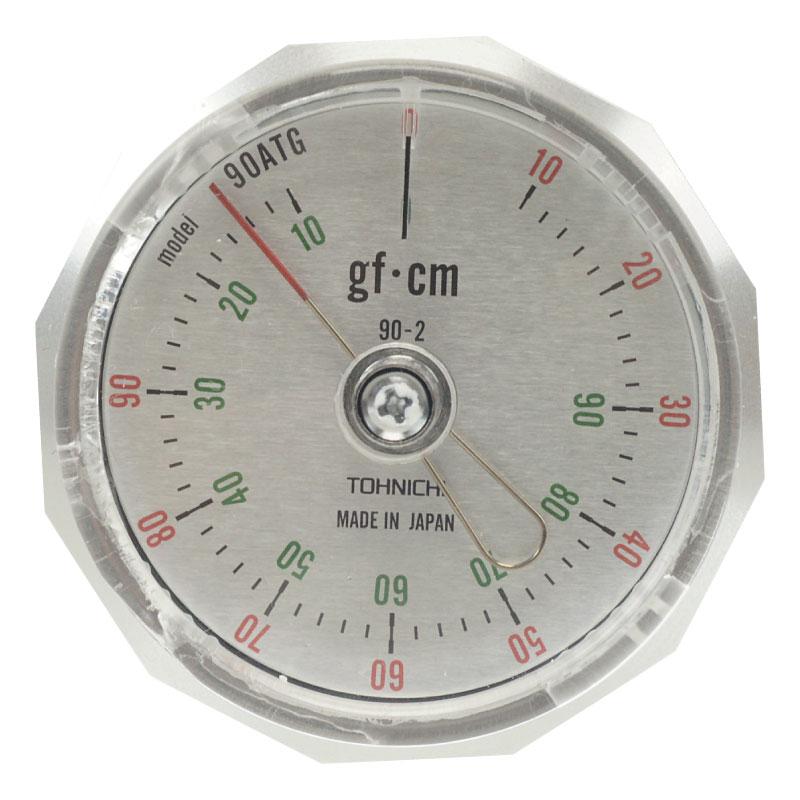

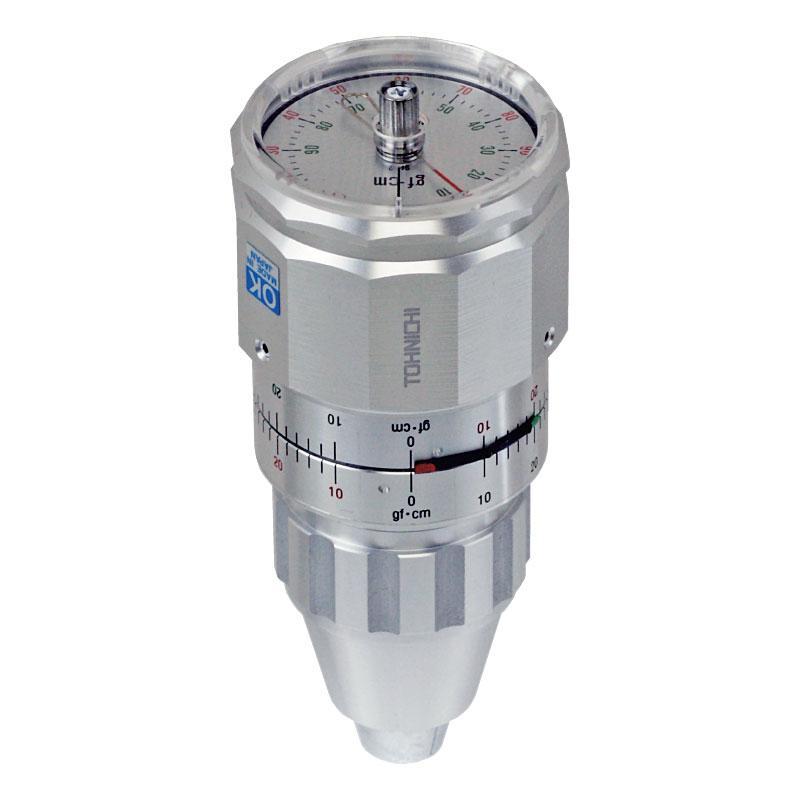

90ATG-S | Torque Gauge, METRIC 10-90, 2gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

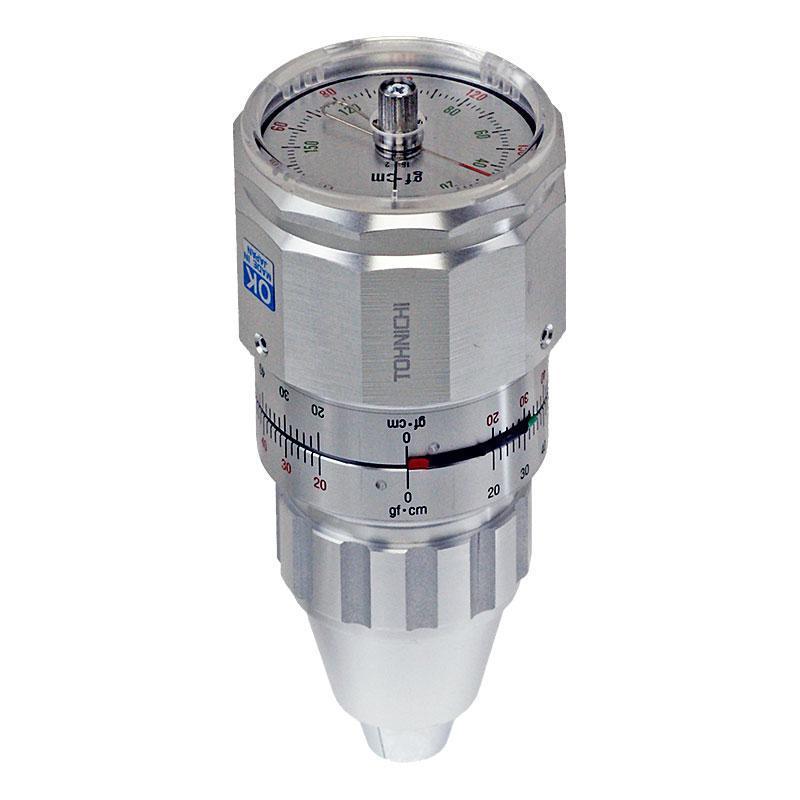

150ATG-S | Torque Gauge, METRIC 20-150, 2gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

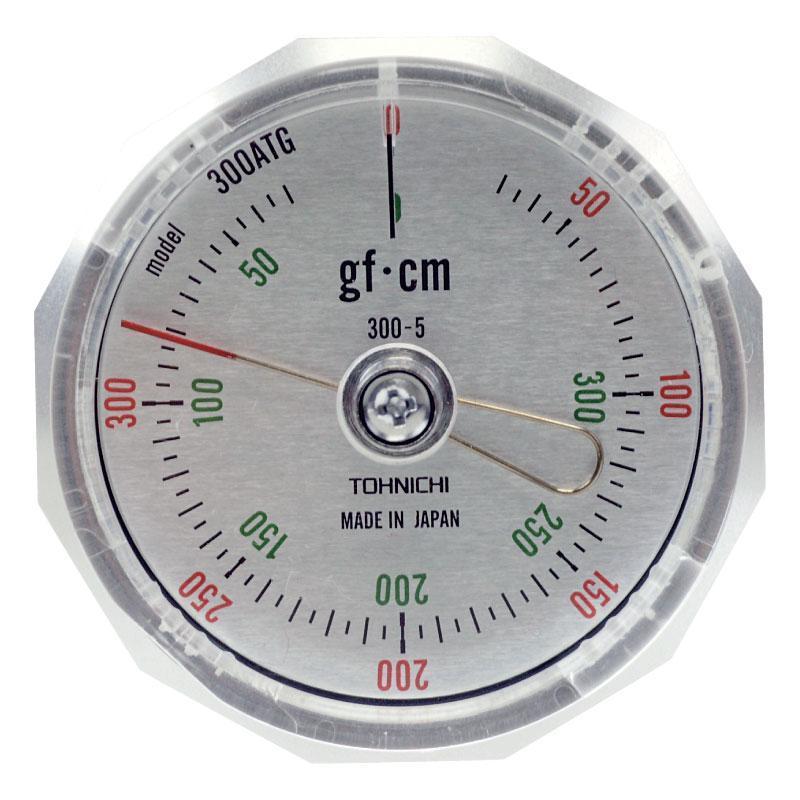

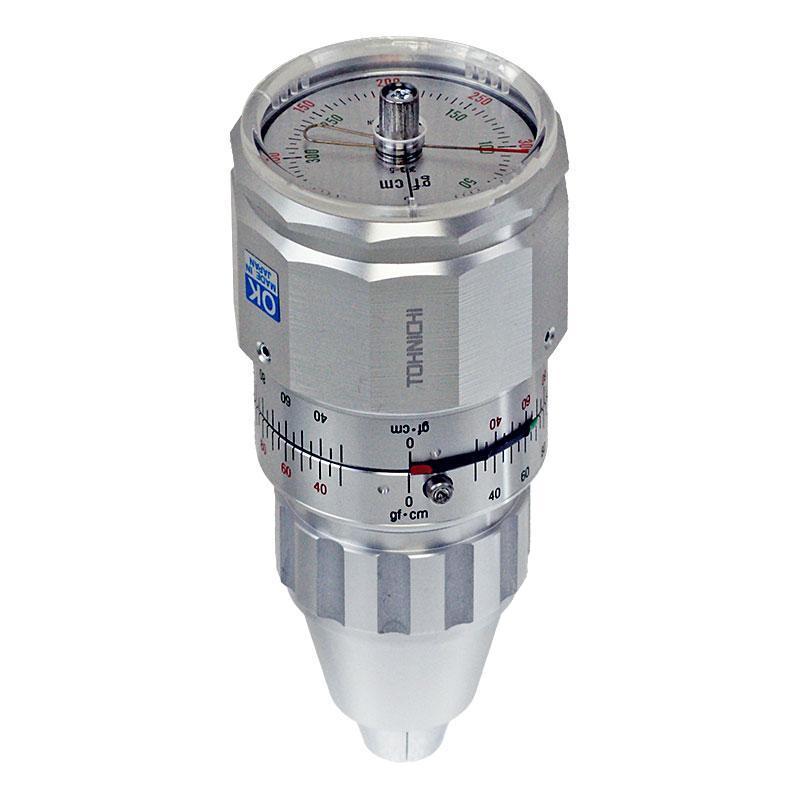

300ATG-S | Torque Gauge, METRIC 30-300, 5gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

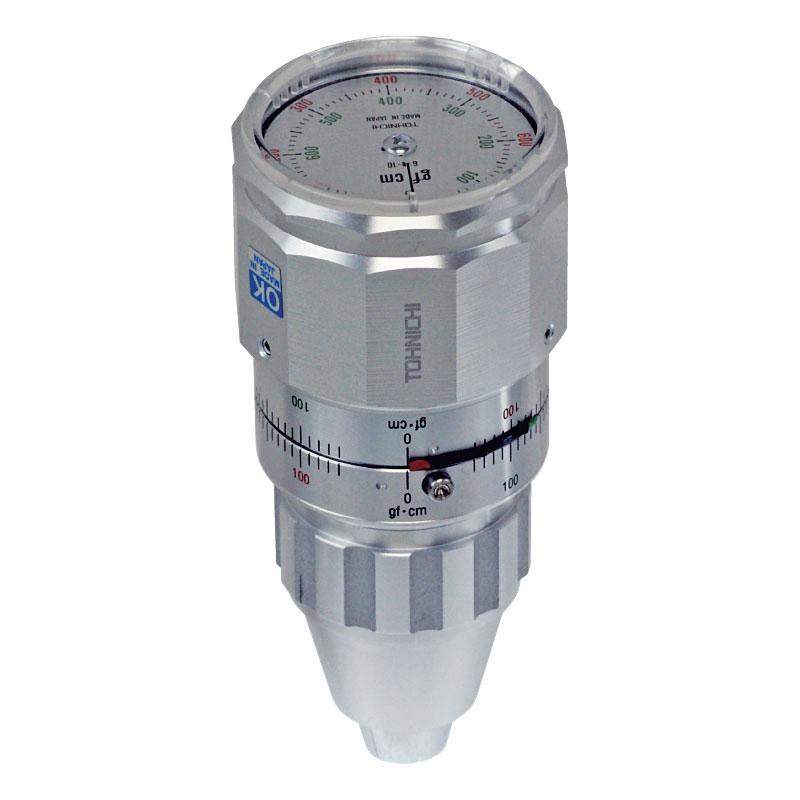

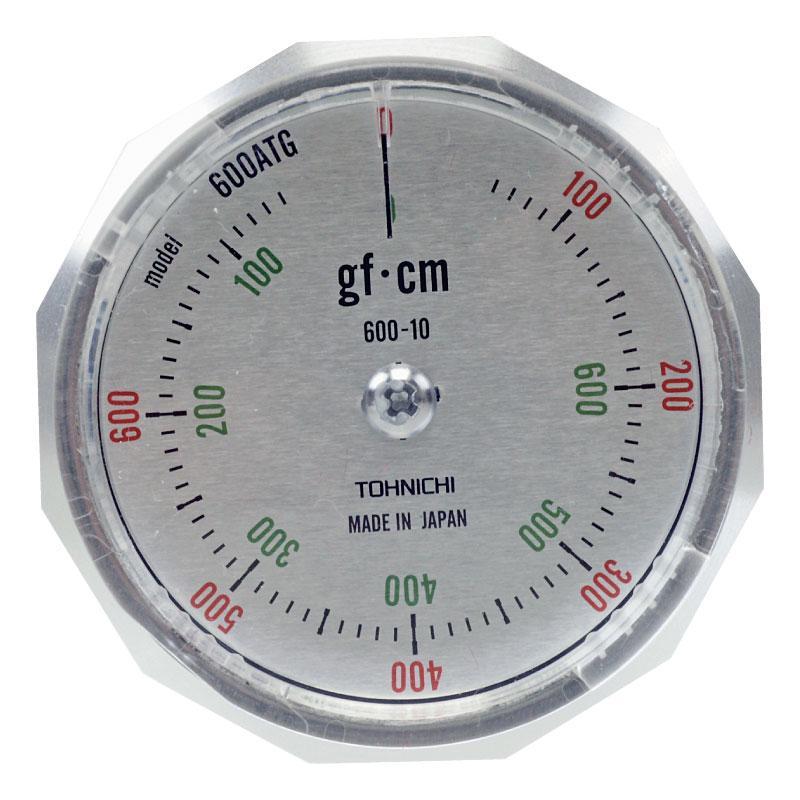

600ATG-S | Torque Gauge, METRIC 60-600, 10gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

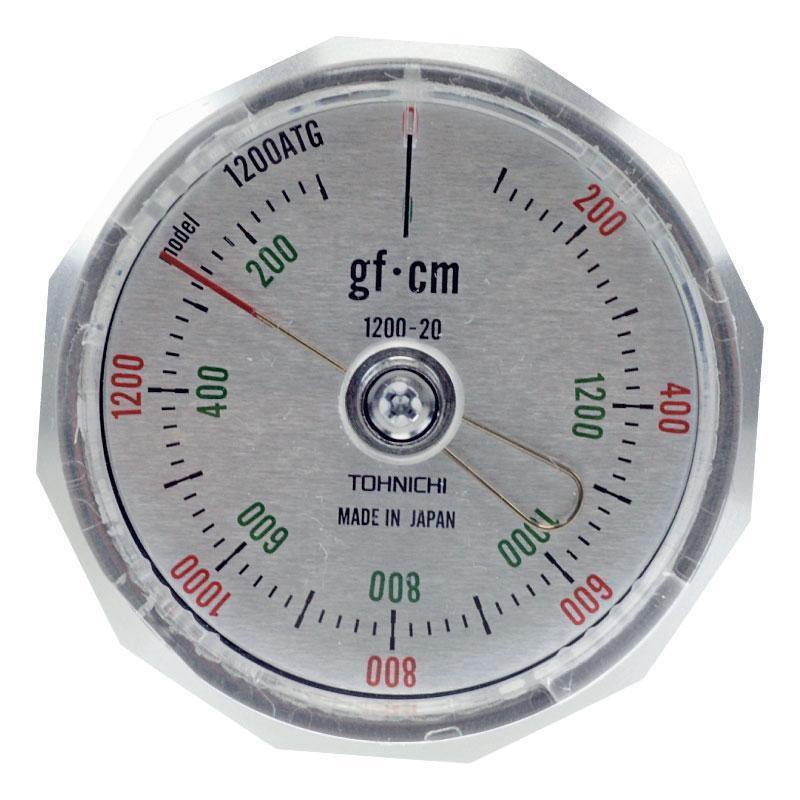

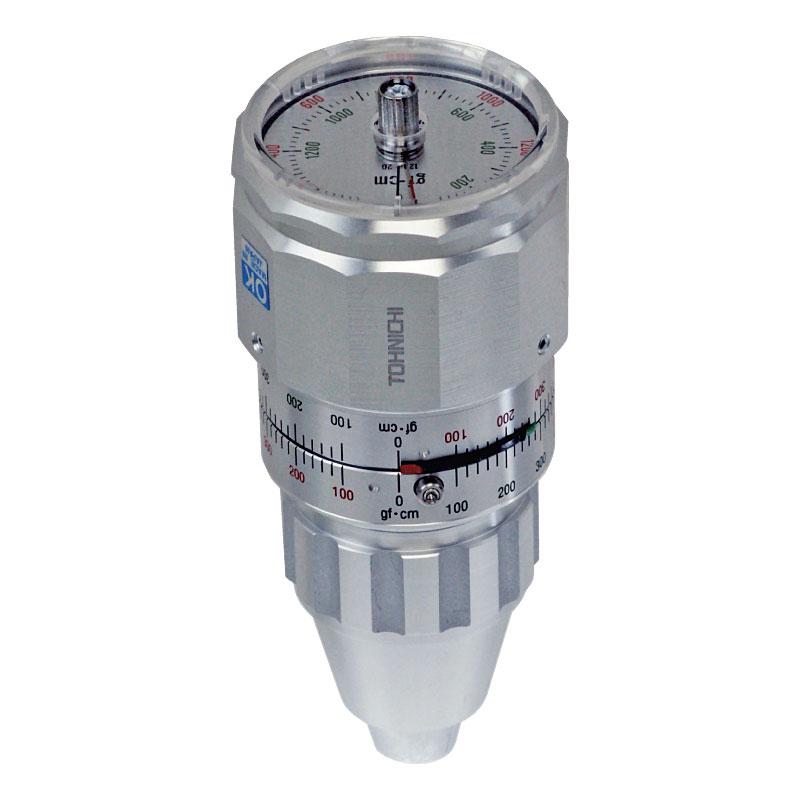

1200ATG-S | Torque Gauge, METRIC 100-1200, 20gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 | |

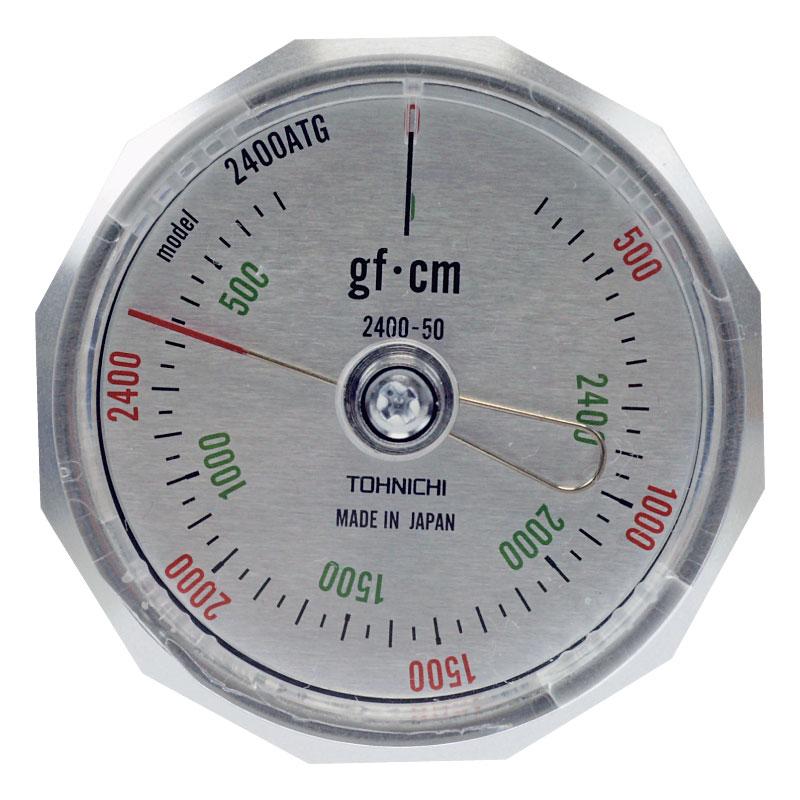

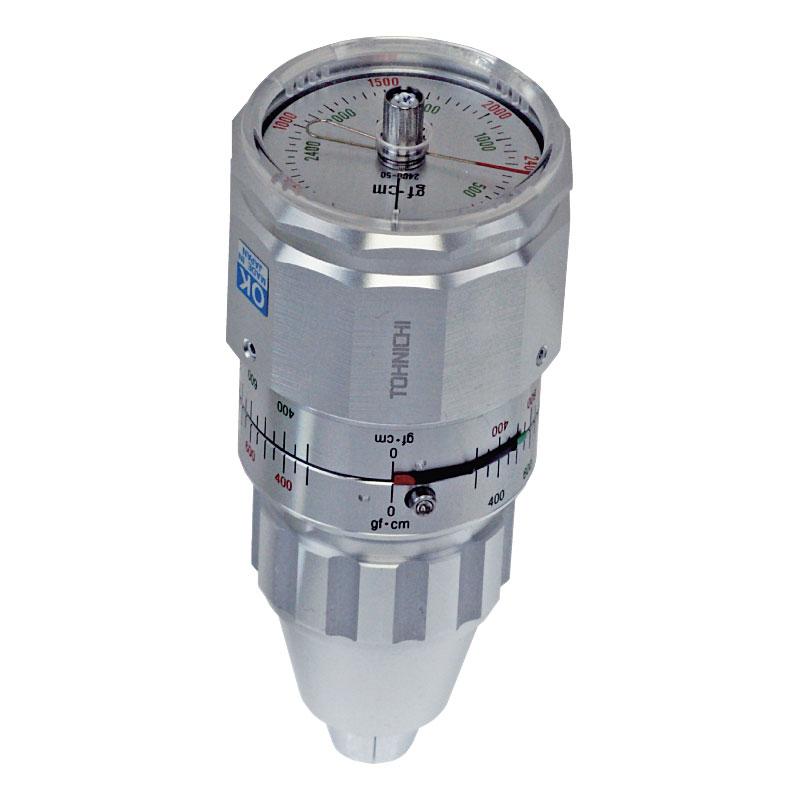

2400ATG-S | Torque Gauge, METRIC 300-2400, 50gf.cm, Chuck Diameter 1-6.5 mm | On backorder item(s) | $573.00 |
