ATGE-G Torque Gauge
- Digital torque gauge series for small torque range 0.1~20cN • m (1~200mN • m) total 6 models.
- Tohnichi ATGE series torque gauge for very small torque.

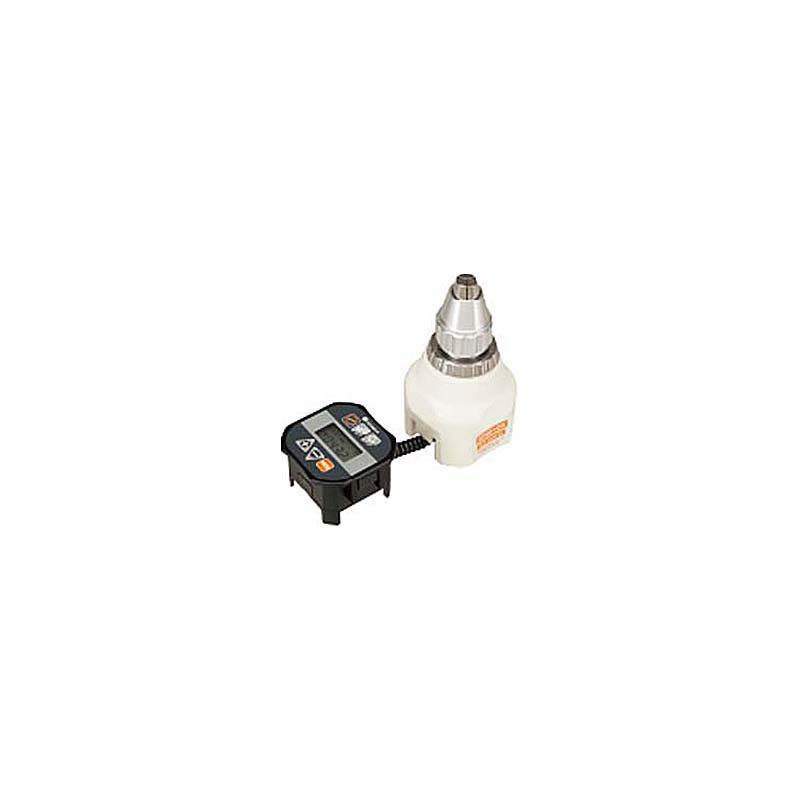

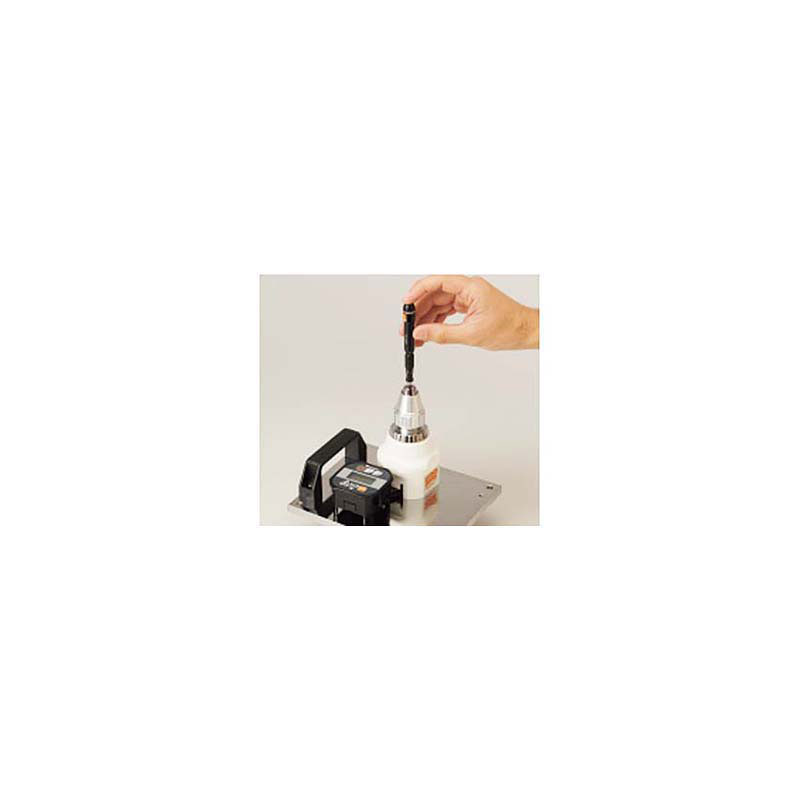

- 3-way configuration: Hand-held, Tabletop, or as a Torque meter with the testing fixture.
- Digital indicator prevents reading mistakes for inspected data.
- Ideal for torque measurement for rotating torque, click torque of precision machinery, electronic devices, and various assembly components.
- Physical stopper prevents accidental over-loading.
- Up to 999 readings can be saved with a computing function to display max/min/meantime values.
- A coin-type lithium battery (CR2450) allows 10-hour continuous operation.

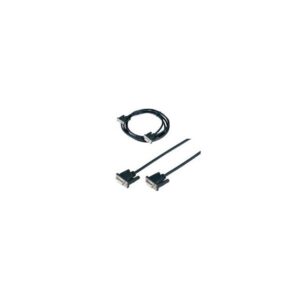

- USB cable can be used for data transfer to PC.
- Global design.
- With CE mark, it is for international use including the EU region.
- Excel Receiver software is a data input tool for Excel® data management. It can be downloaded for free.
*Note: Excel® is a registered trademark of the Microsoft Corporation.
Accessories
Thumbnail | Name | Short description | Stock status | Price |
---|---|---|---|---|

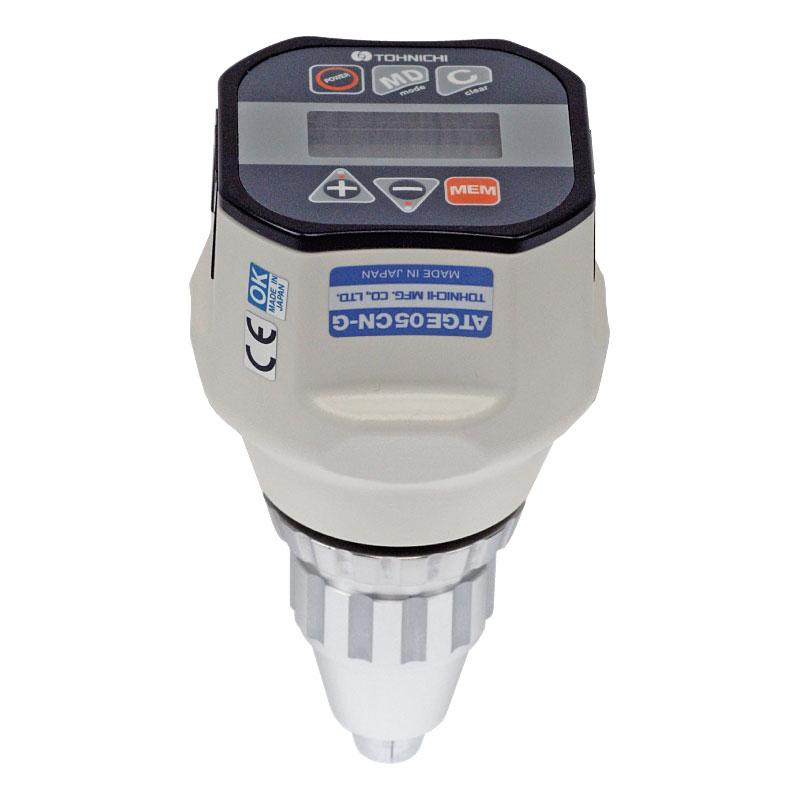

ATGE05CN-G | Digital Torque Gauge, 0.1-0.5, 0.001cN.m, 1-5, 0.01mN.m, 10-50, 0.1gf.cm, 0.15-0.7, 0.001ozf.in, Chuck Diameter 1-6.5 mm | In stock3 item(s) | $1,426.00 | |

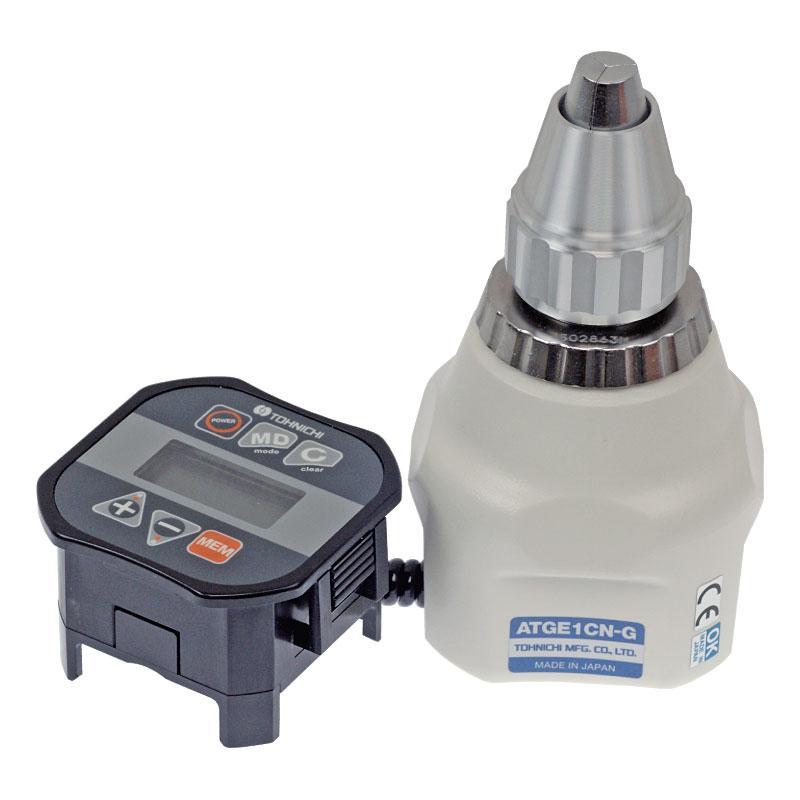

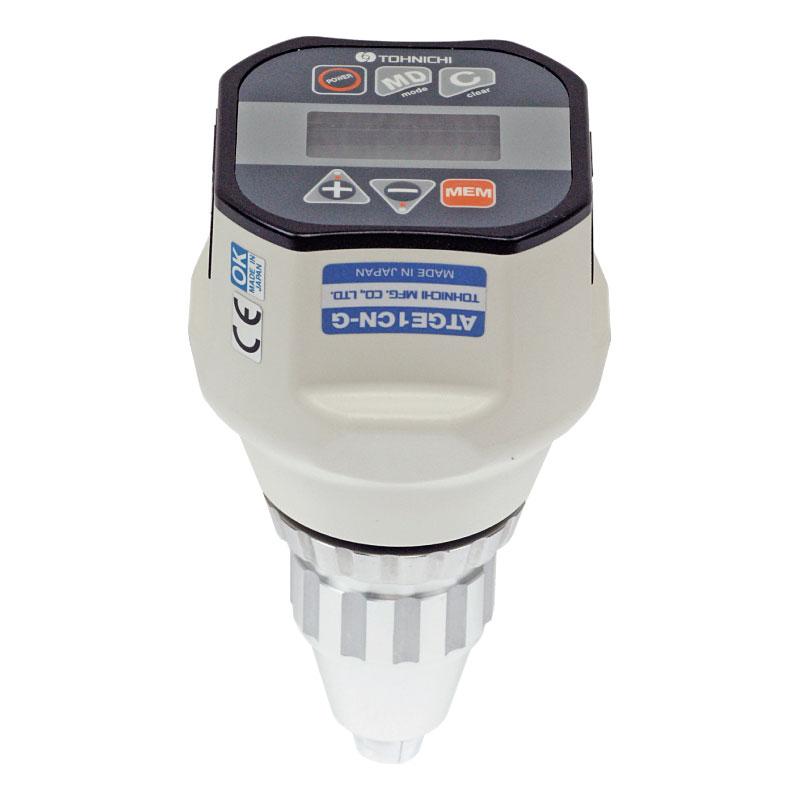

ATGE1CN-G | Digital Torque Gauge, 0.2-1, 0.001cN.m, 2-10, 0.01mN.m, 20-100, 0.1gf.cm, 0.3-1.4, 0.001ozf.in, Chuck Diameter 1-6.5 mm | In stock2 item(s) | $1,426.00 | |
ATGE2CN-G | Digital Torque Gauge, 0.4-2, 0.002cN.m, 4-20, 0.02mN.m, 40-200, 0.2gf.cm, 0.6-2.8, 0.002ozf.in, Chuck Diameter 1-6.5 mm | In stock3 item(s) | $1,426.00 | |

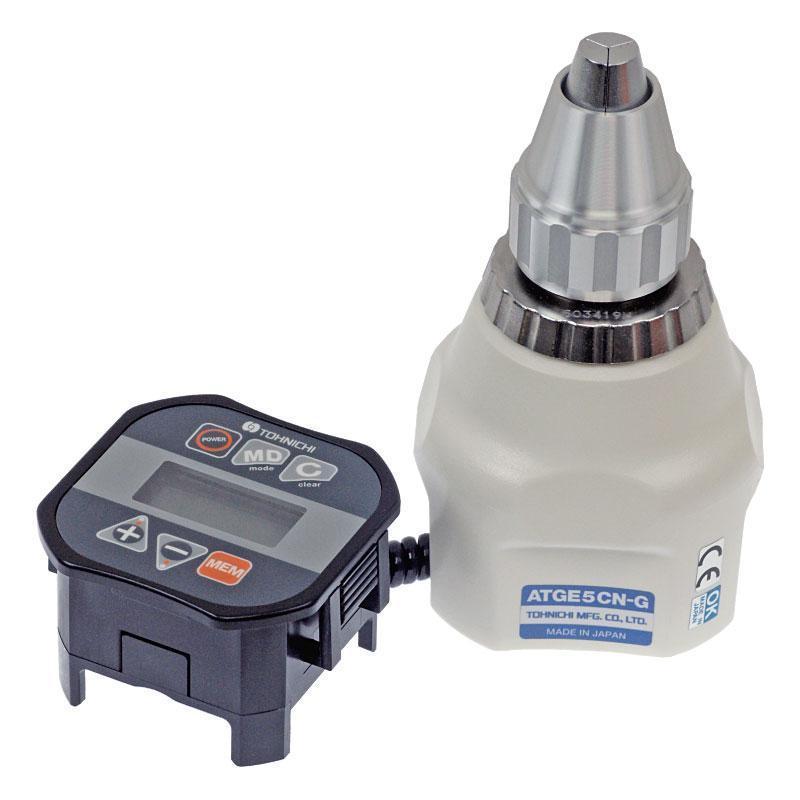

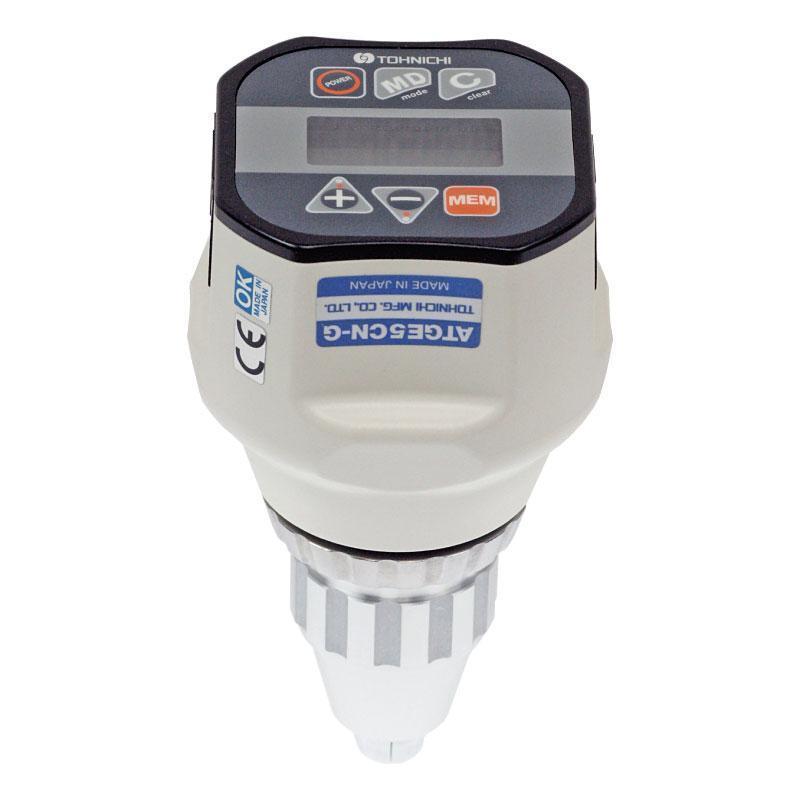

ATGE5CN-G | Digital Torque Gauge, 1-5, 0.005cN.m, 10-50, 0.05mN.m, 100-500, 0.5gf.cm, 1.5-7, 0.005ozf.in, Chuck Diameter 1-6.5 mm | In stock2 item(s) | $1,426.00 | |

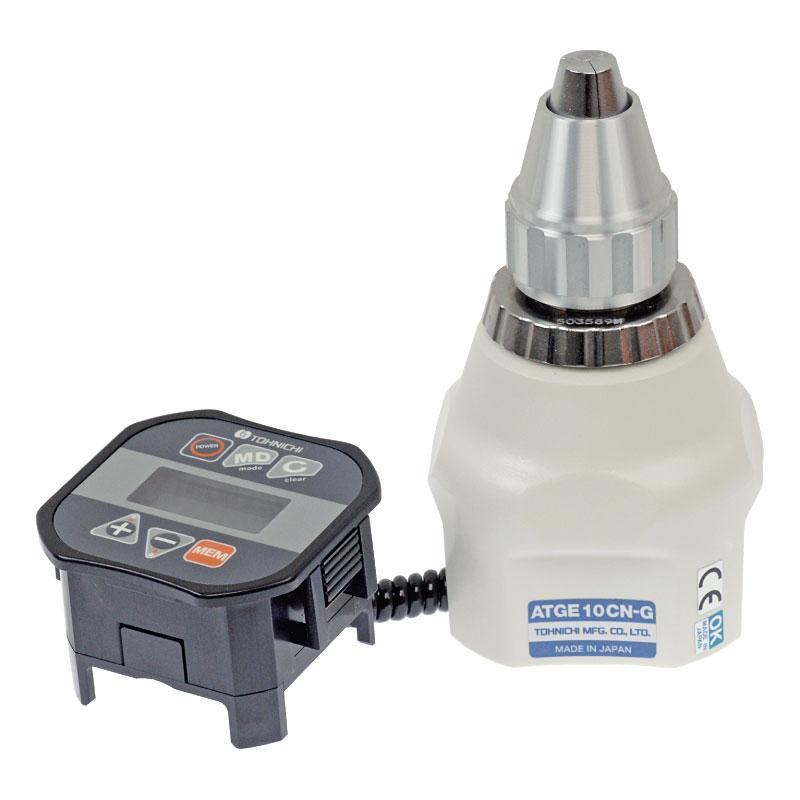

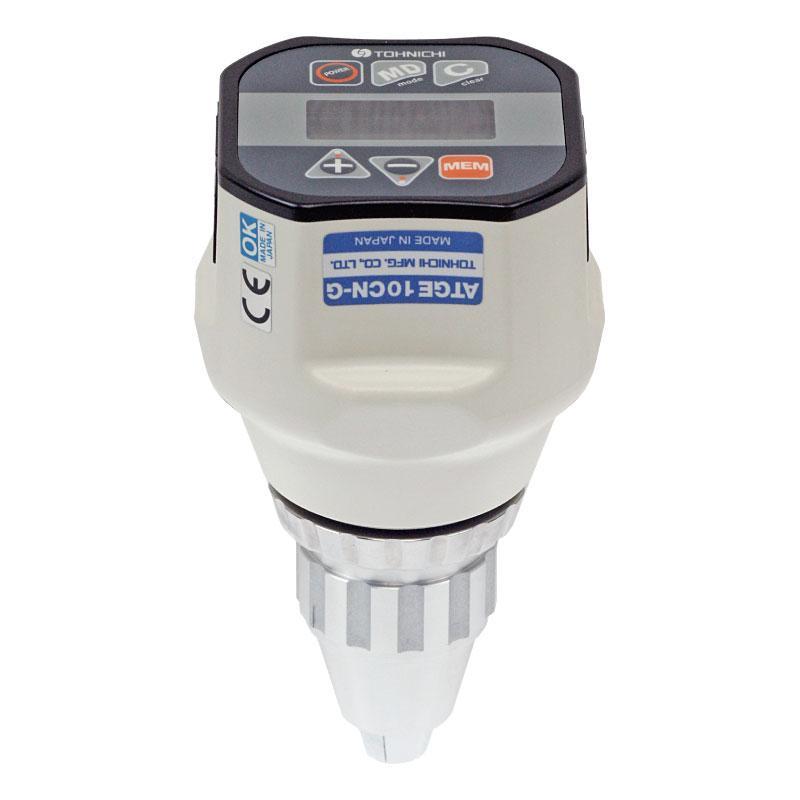

ATGE10CN-G | Digital Torque Gauge, 2-10, 0.01cN.m, 20-100, 0.1mN.m, 200-1000, 1gf.cm, 3-14, 0.01ozf.in, Chuck Diameter 1-6.5 mm | In stock2 item(s) | $1,426.00 | |

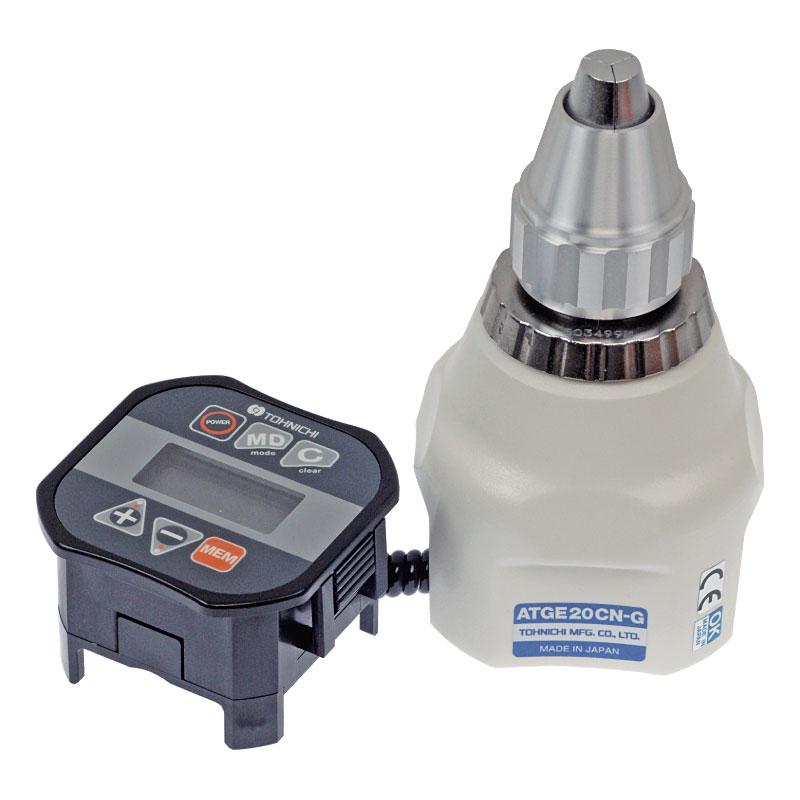

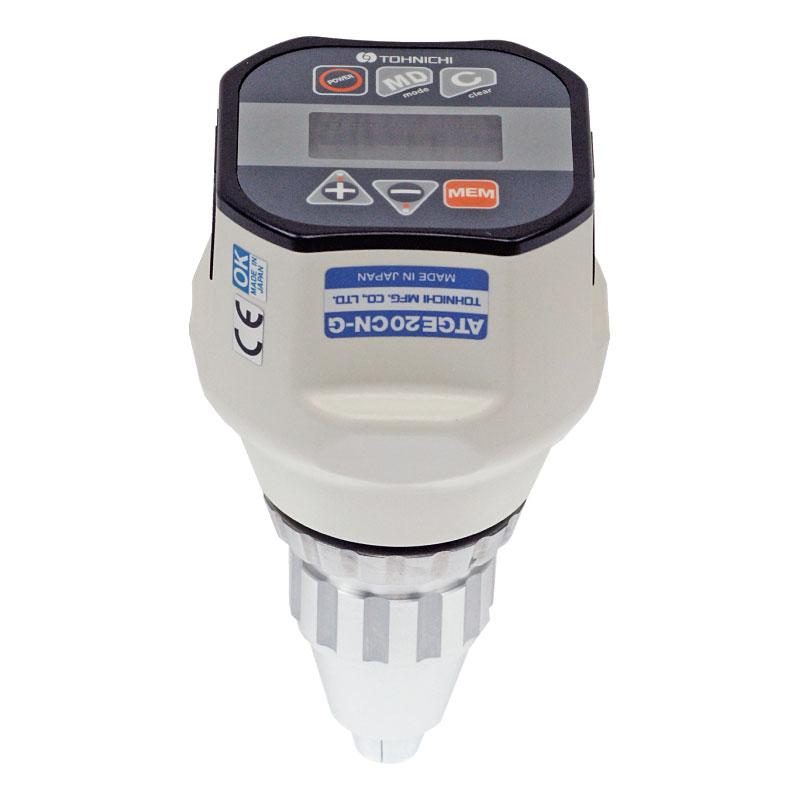

ATGE20CN-G | Digital Torque Gauge, 4-20, 0.02cN.m, 40-200, 0.2mN.m, 400-2000, 2gf.cm, 6-28, 0.02ozf.in, Chuck Diameter 1-6.5 mm | In stock3 item(s) | $1,426.00 |
